Park / Neutral Position Switch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

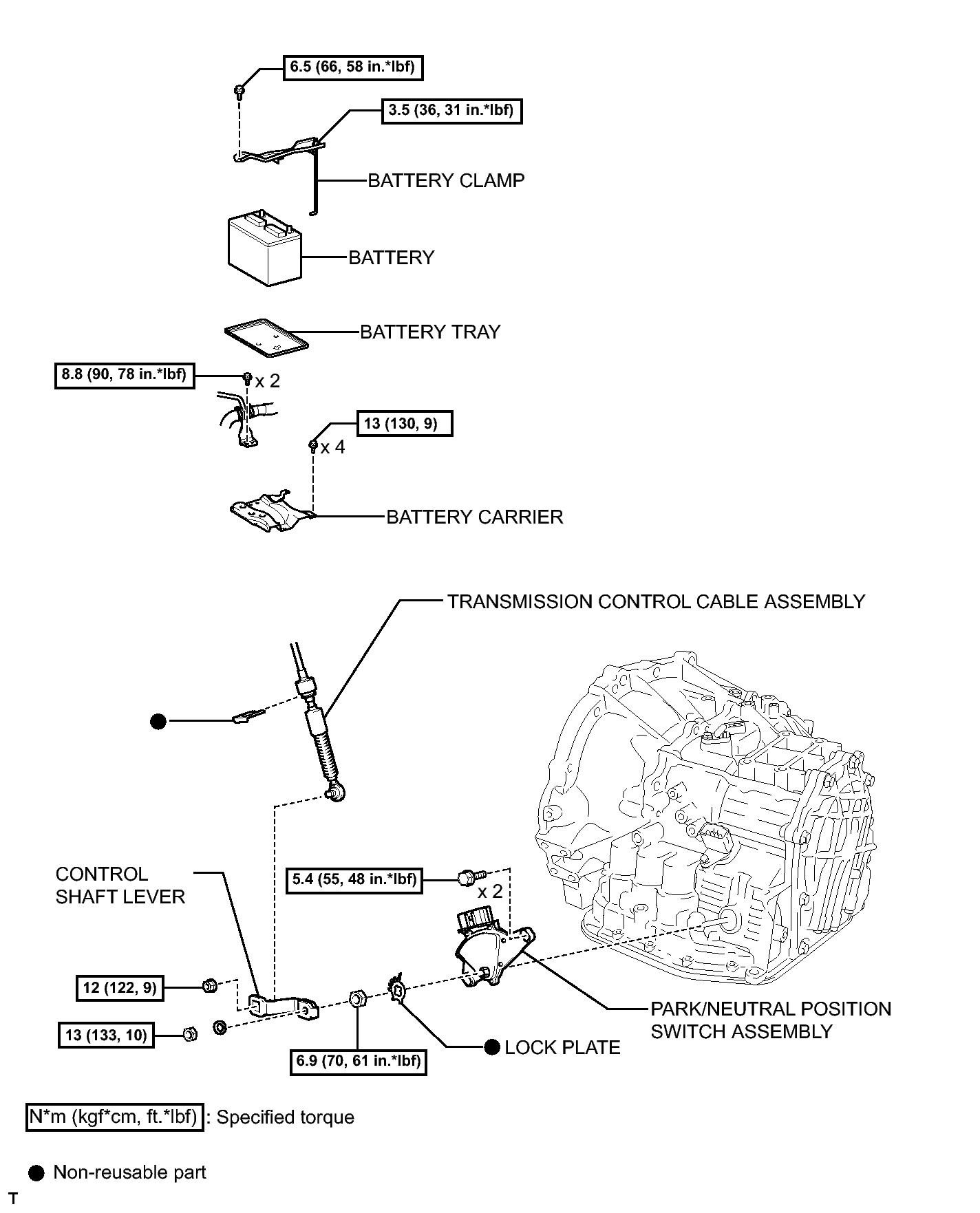

Fig 1: Identifying Park / Neutral Position Switch Replacement Components With Torque Specifications
GTY244771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
