Oil Pump: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL CLUTCH DRUM OIL SEAL RING
1. Coat 2 new clutch drum oil seal rings with ATF, and install them to the stator shaft.

  Fig 1: Locating Clutch Drum Oil Seal Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP OIL SEAL
1. Using SST and a hammer, install the front oil pump oil seal to the oil pump body.

  Fig 2: Installing Front Oil Pump Oil Seal To Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-60010
    - 09951-00550
  - SST: 09950-70010
    - 09951-07100
  Oil seal driven in depth

  -0.15 to 0.15 mm (-0.00590 to 0.00590 in.)
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the front oil pump driven gear with ATF, and install it to the oil pump body with the marked side facing upward.

  Fig 3: Identifying Mark On Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the front oil pump drive gear with ATF, and install it to the oil pump body with the marked side facing upward.

  Fig 4: Identifying Mark On Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STATOR SHAFT ASSEMBLY
1. Using "TORX" socket wrench T30, install the stator shaft assembly with the 10 "TORX" screws.

  Fig 5: Identifying "Torx" Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSPECT OIL PUMP ASSEMBLY

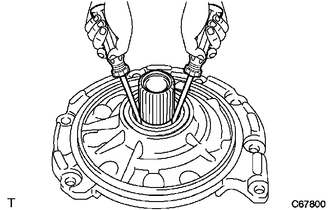

1. Turn the drive gear with 2 screwdrivers and make sure that it rotates smoothly.

  Fig 6: Turning Drive Gear With Screwdrivers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the oil seal lip.
INSTALL FRONT OIL PUMP BODY O-RING
1. Coat a new front oil pump body O-ring with ATF, and install it to the oil pump.

  Fig 7: Identifying Front Oil Pump Body O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
