Shift And Select Lever Shaft: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Shift And Select Lever Shaft Replacement Components With Torque Specifications
GTY243970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

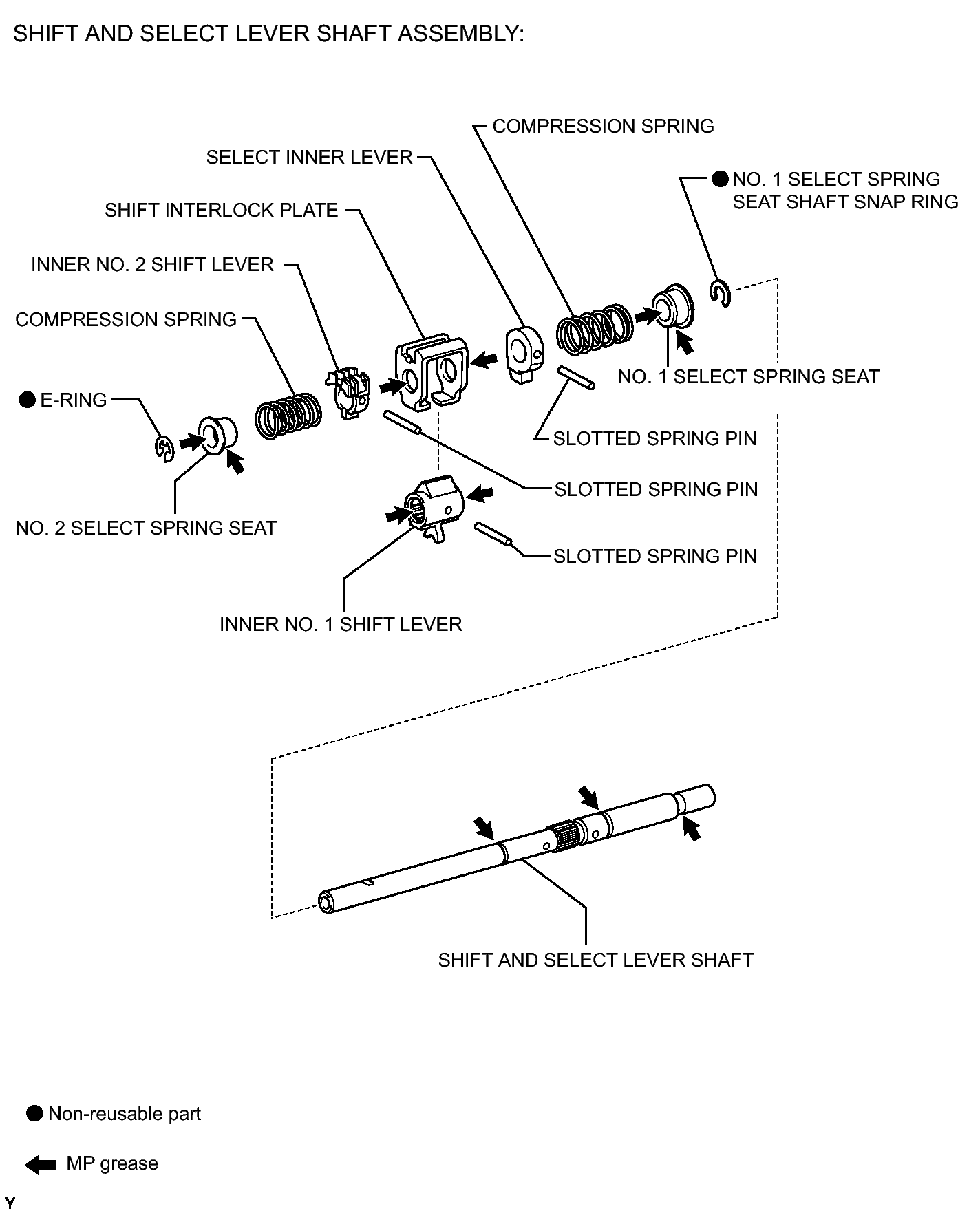

Fig 1: Identifying Shift And Select Lever Shaft Replacement Components
GTY201300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
