OEM Electrical Wiring Diagram Glossary Of Terms & Symbols
>>
Glossary Of Terms And Symbols
Glossary Of Terms And Symbols

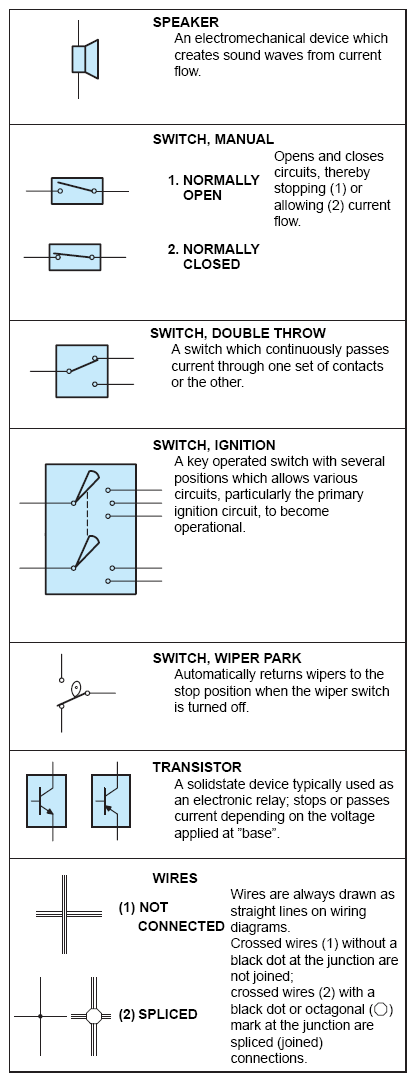

Fig 1: Electric Circuit Symbols Chart (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

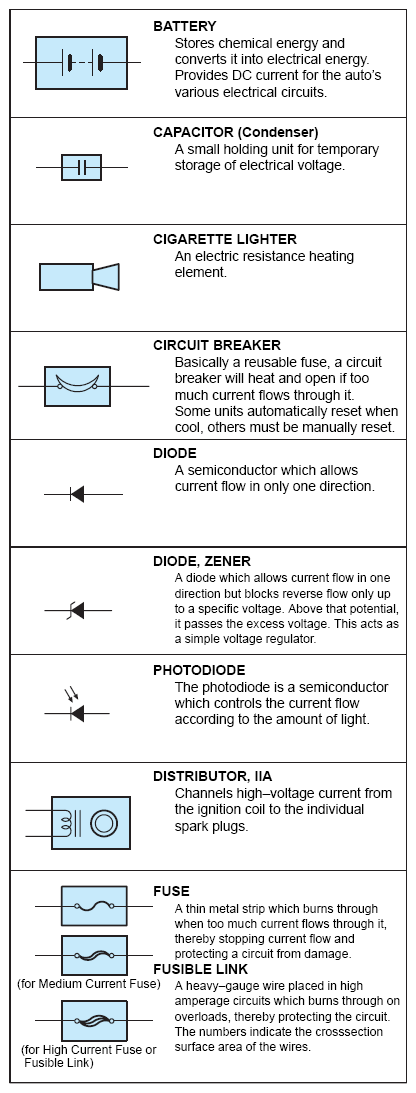

Fig 2: Electric Circuit Symbols Chart (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

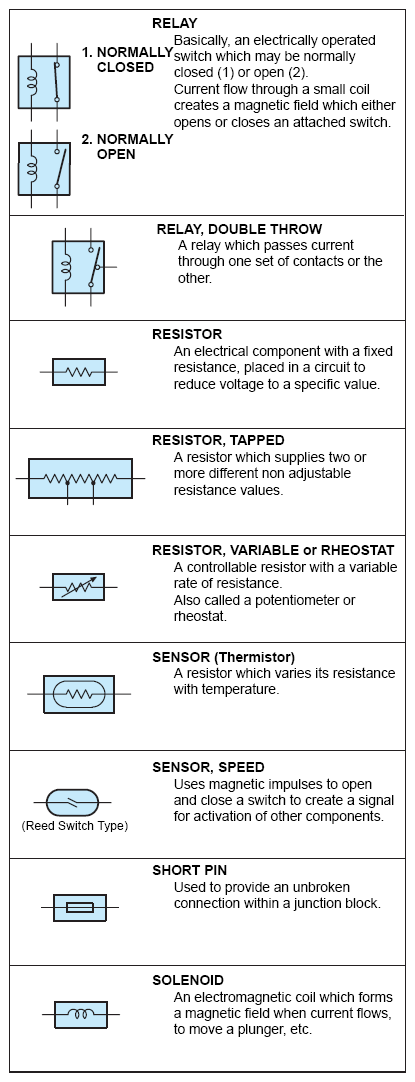

Fig 3: Electric Circuit Symbols Chart (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

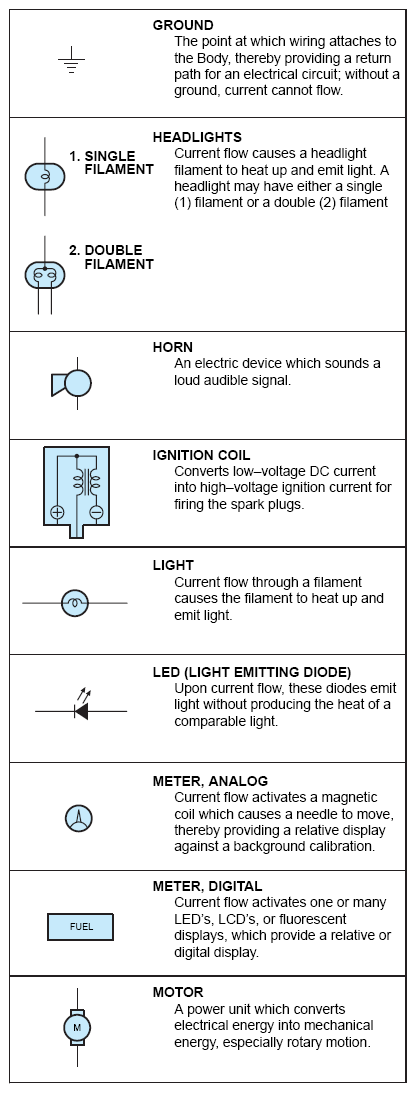

Fig 4: Electric Circuit Symbols Chart (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
