Speed Signal Circuit: Wiring Diagram

  1. for 2ZR-FE
    Fig 1: Vehicle Speed Signal (2ZR-FE) - Wiring Diagram
    GTY247427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2AZ-FE

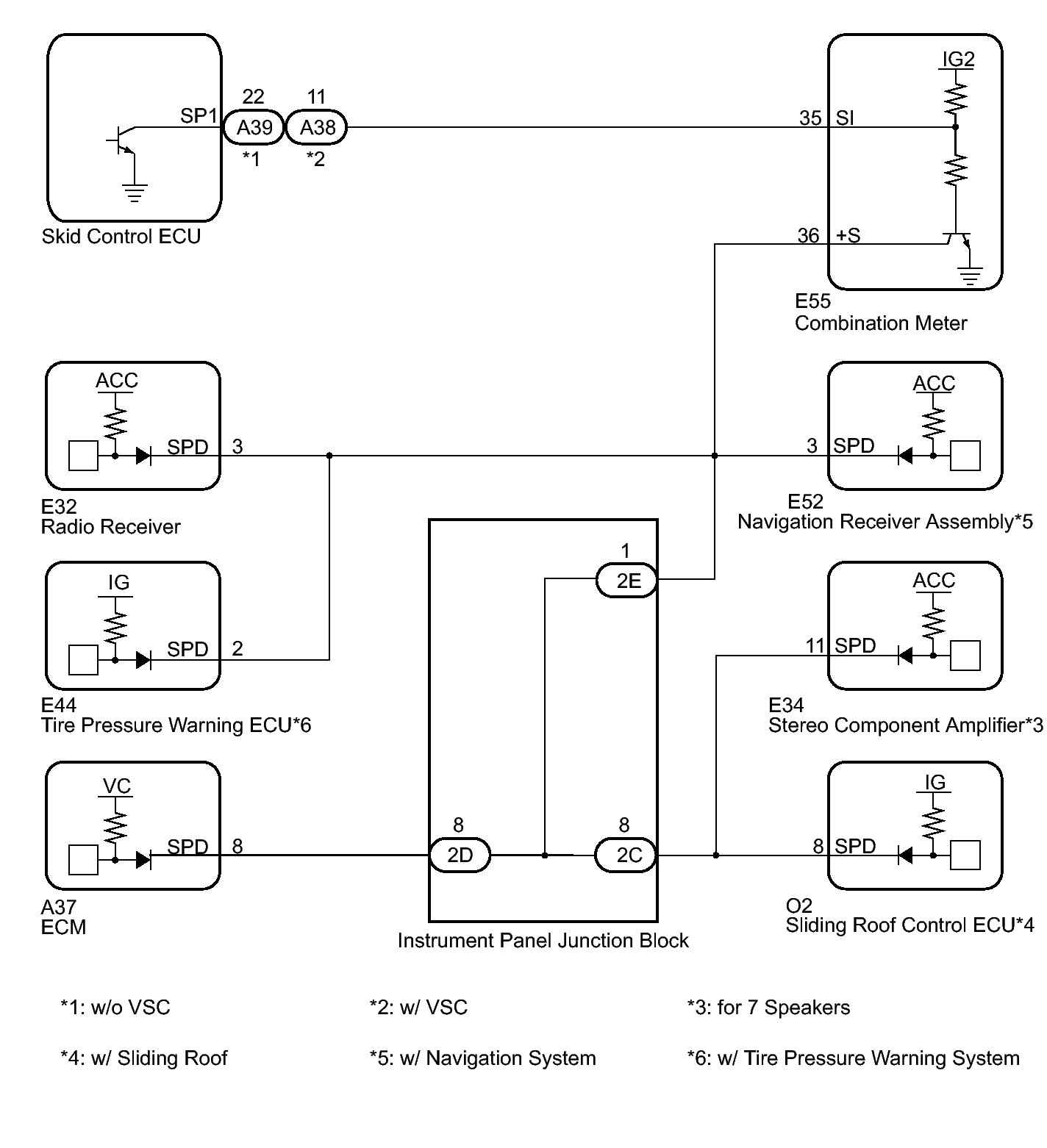

    Fig 2: Vehicle Speed Signal (2AZ-FE) - Wiring Diagram
    GTY247429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
