: Location of Connector Joining Wire Harness and Wire Harness

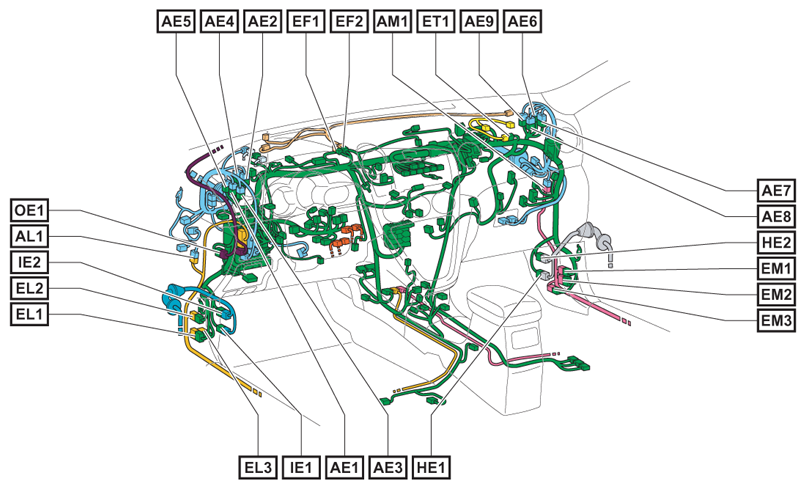

Fig 1: Locating Wire Harnesses Points

G07571344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
