How To Read This Service Information

* The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the wiring diagram service information.

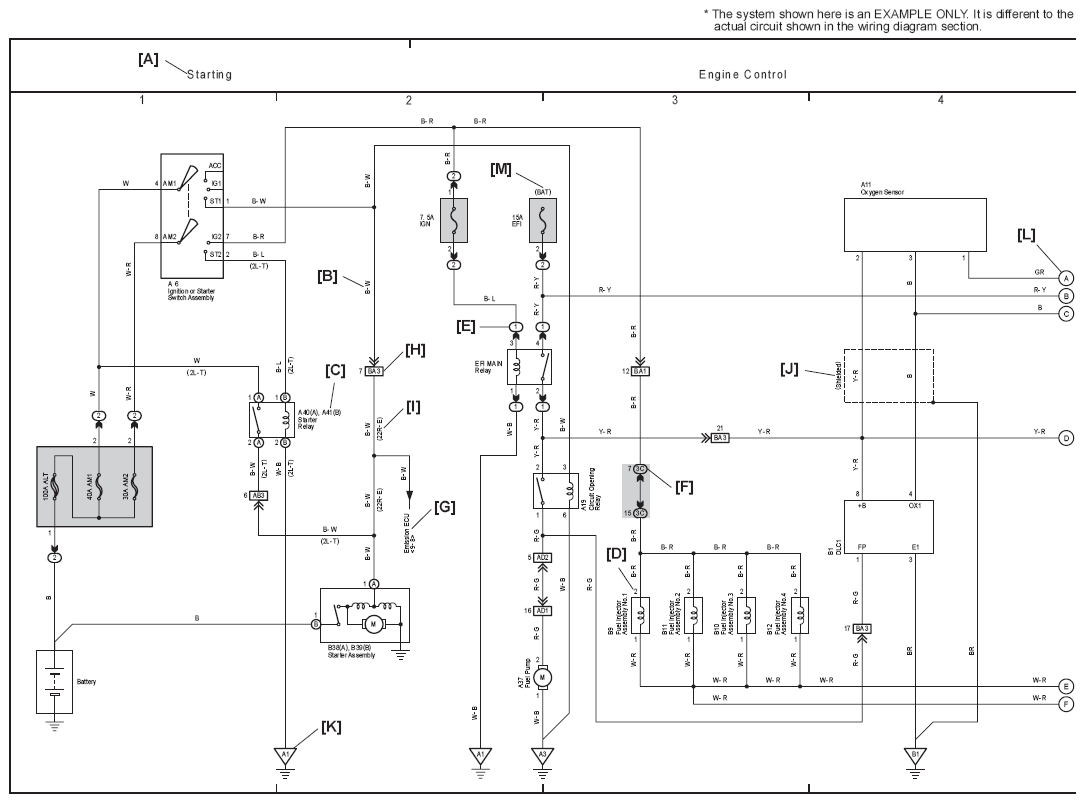

Fig 1: Engine Control Electrical Circuit Diagram (Example)
G07555899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

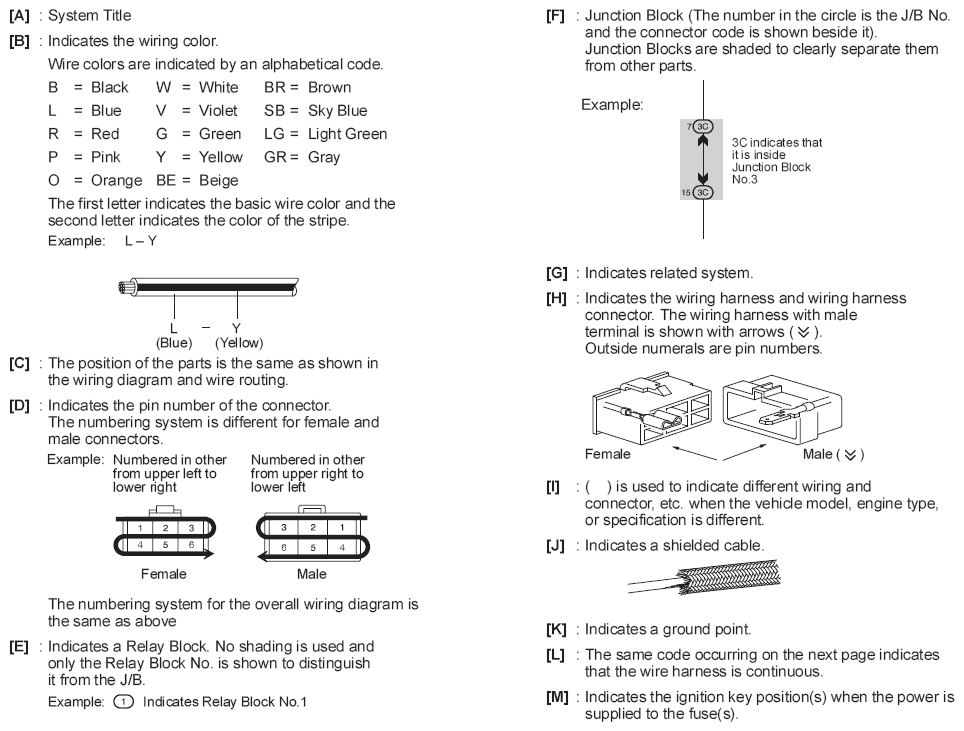

Fig 2: Engine Control Electrical Circuit Legend
G07555900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
