9 Power Seat (Front Passenger's Seat)

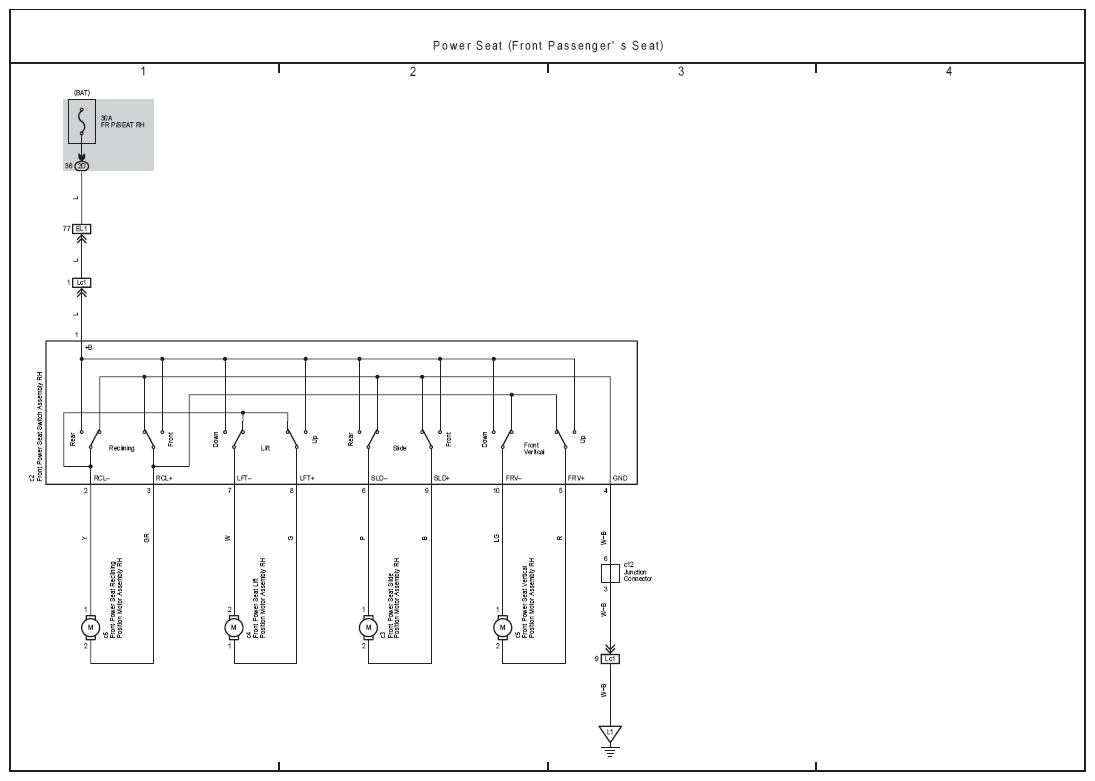

Fig 1: Power Seat (Front Passenger'S Seat) Electrical Wiring Diagram

G07555931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
