OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
8 Power Seat (Driver's Seat)
8 Power Seat (Driver's Seat)

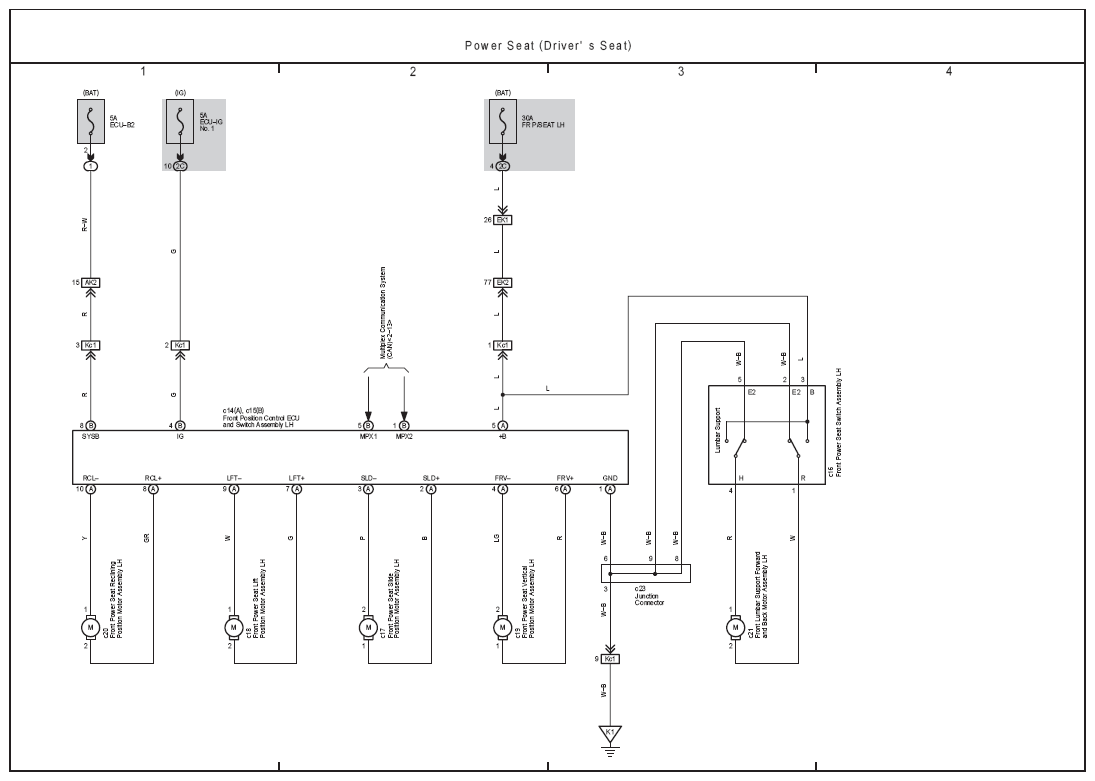

Fig 1: Power Seat (Driver's Seat) Electrical Wiring Diagram
