7 Front Window Deicer, Power Tilt and Power Telescopic

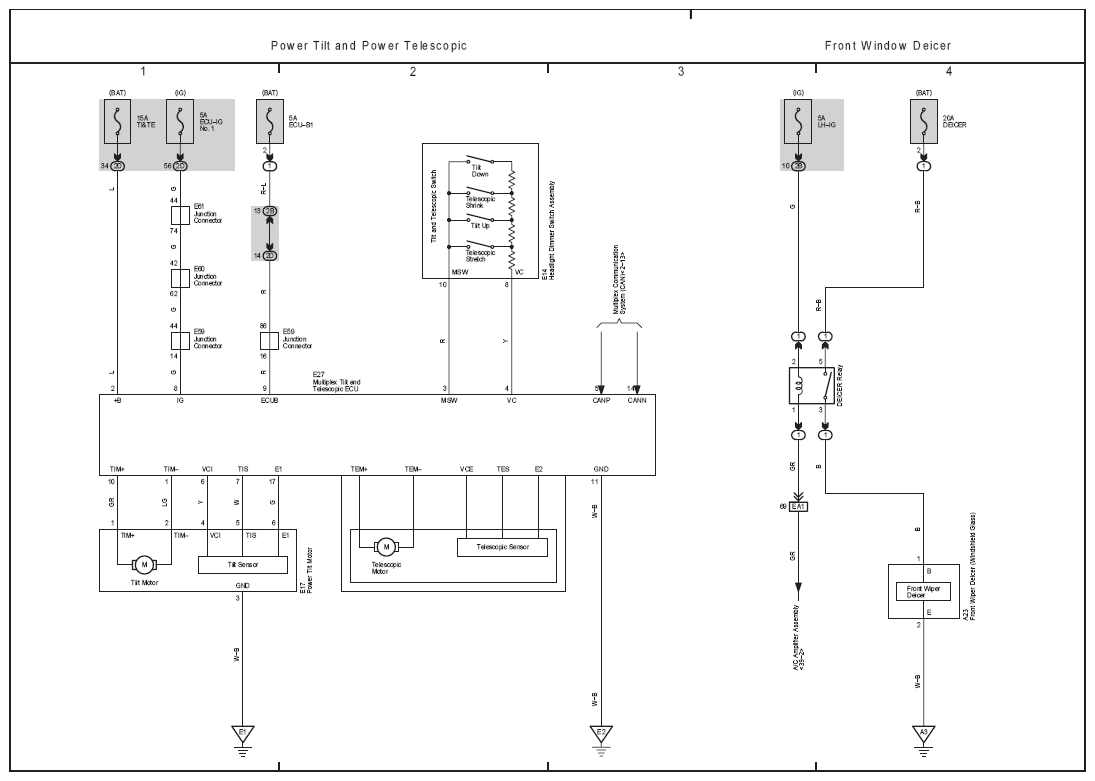

Fig 1: Power Tilt And Power Telescopic Electrical Wiring Diagram

G07555929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
