OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
42 Safety Connect
42 Safety Connect

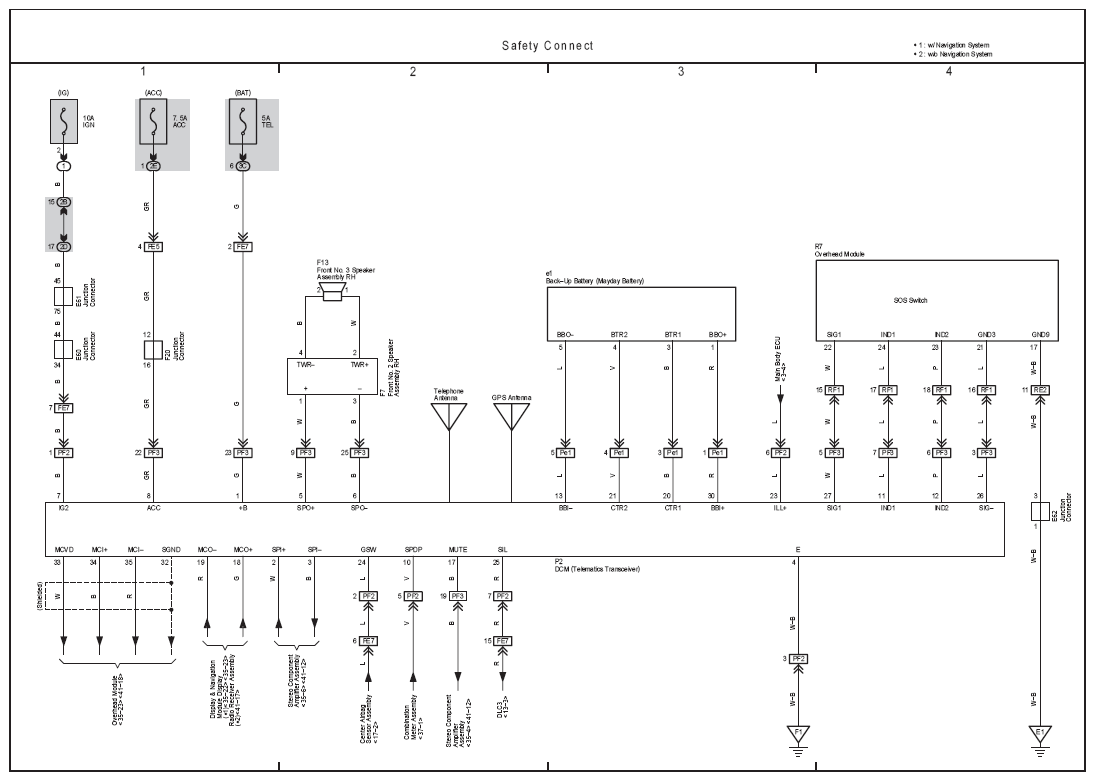

Fig 1: Safety Connect Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
