OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
40 Front Wiper and Washer (w/ Auto Wiper System)
40 Front Wiper and Washer (w/ Auto Wiper System)

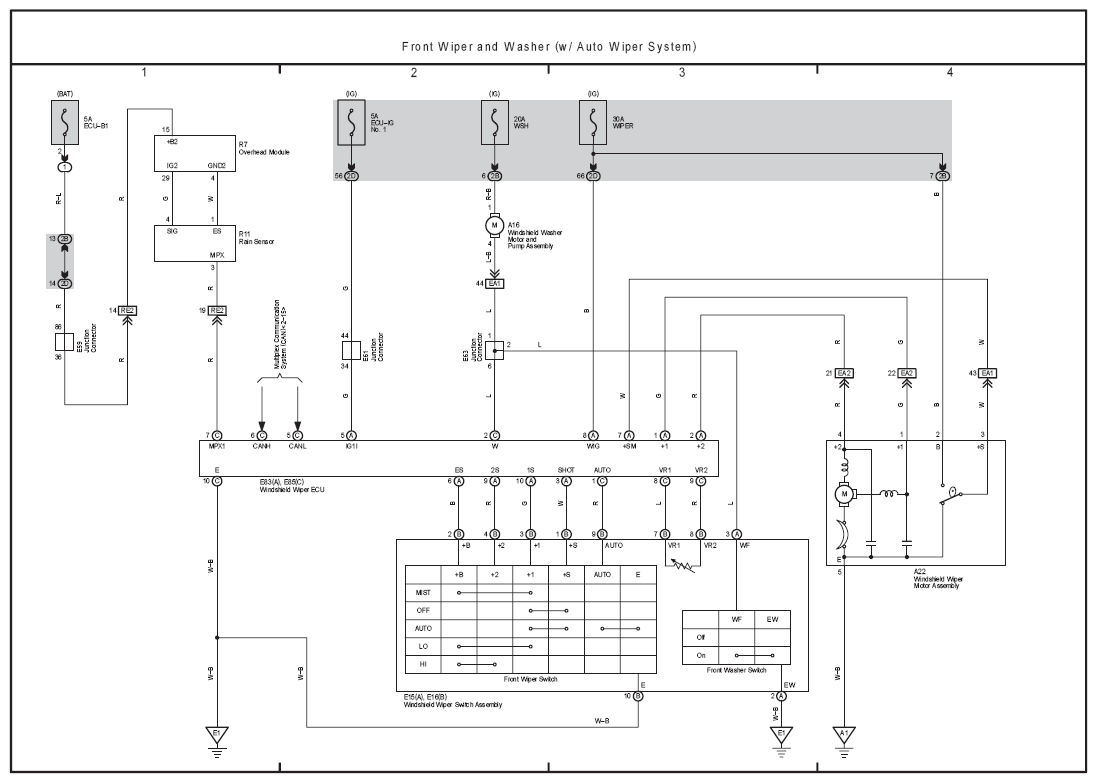

Fig 1: Front Wiper And Washer (w/ Auto Wiper System) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
