4 Back Door Opener, Smart Key System, Theft Deterrent

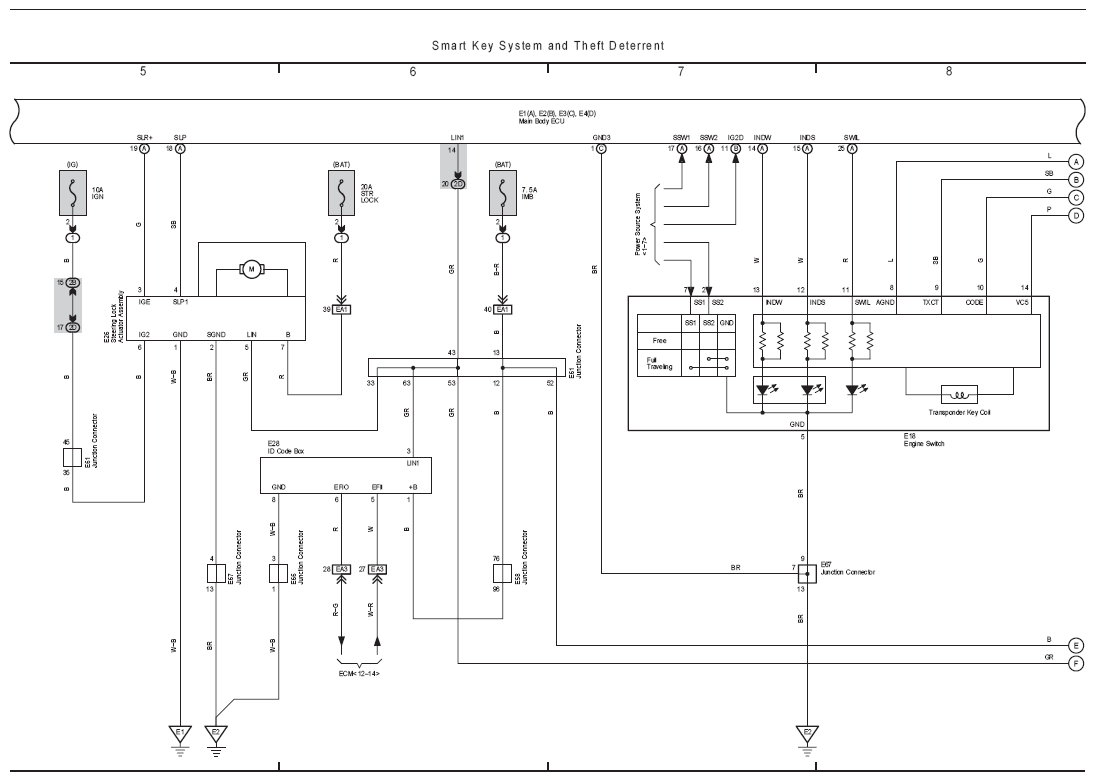

Fig 1: Smart Key System And Theft Deterrent Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

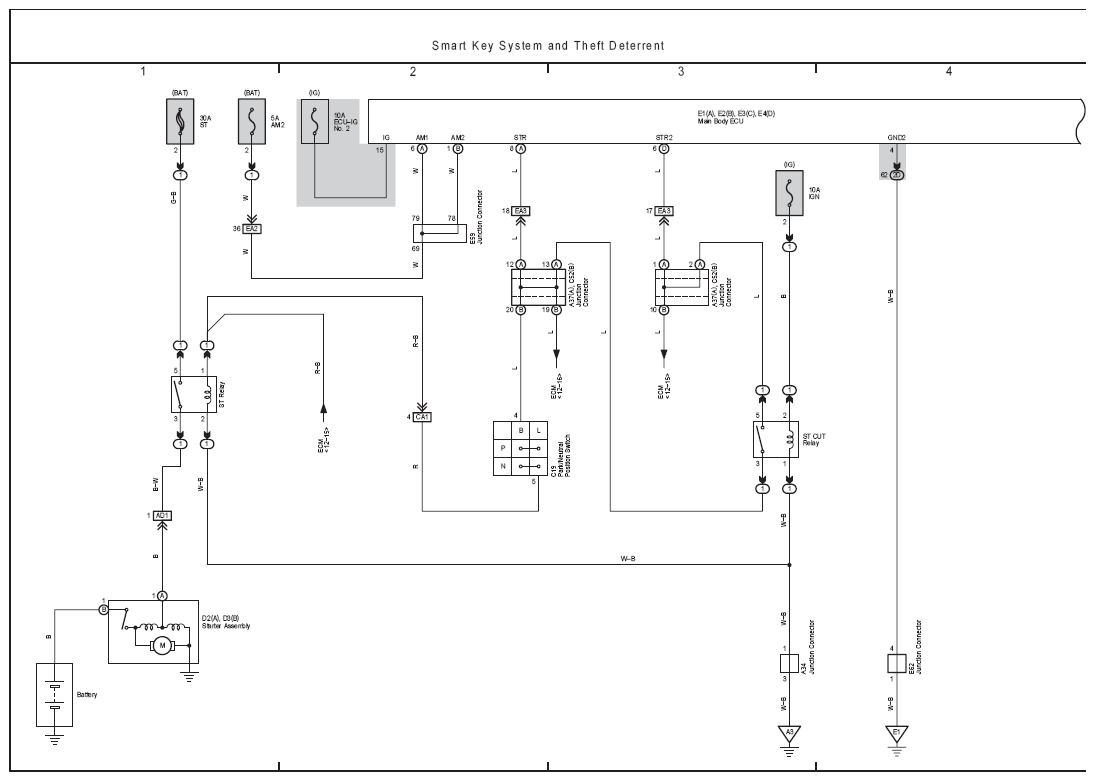

Fig 2: Smart Key System And Theft Deterrent Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

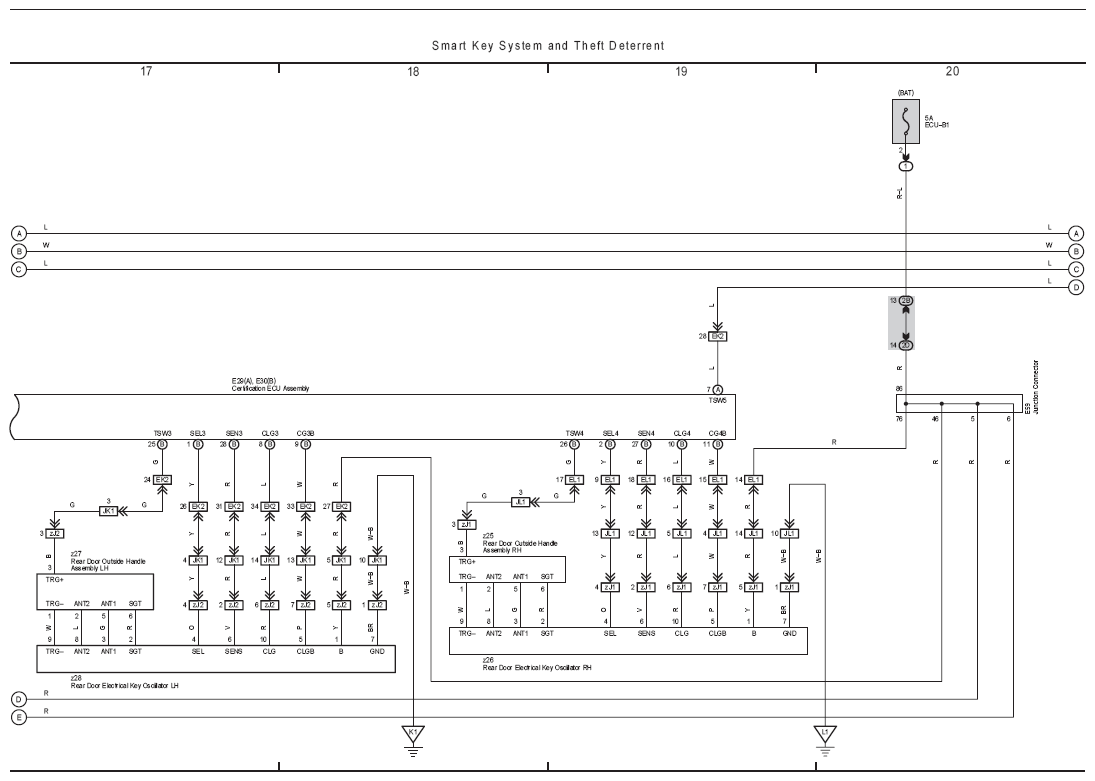

Fig 3: Smart Key System And Theft Deterrent Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

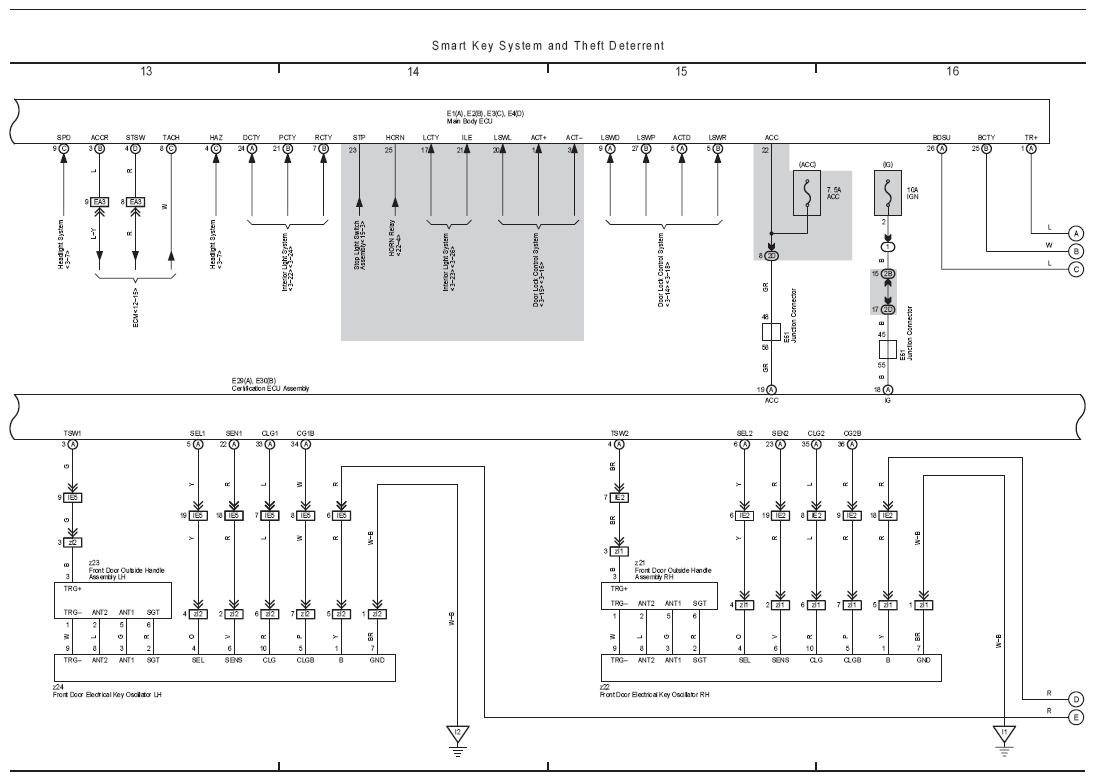

Fig 4: Smart Key System And Theft Deterrent Electrical Wiring Diagram (4 Of 5)

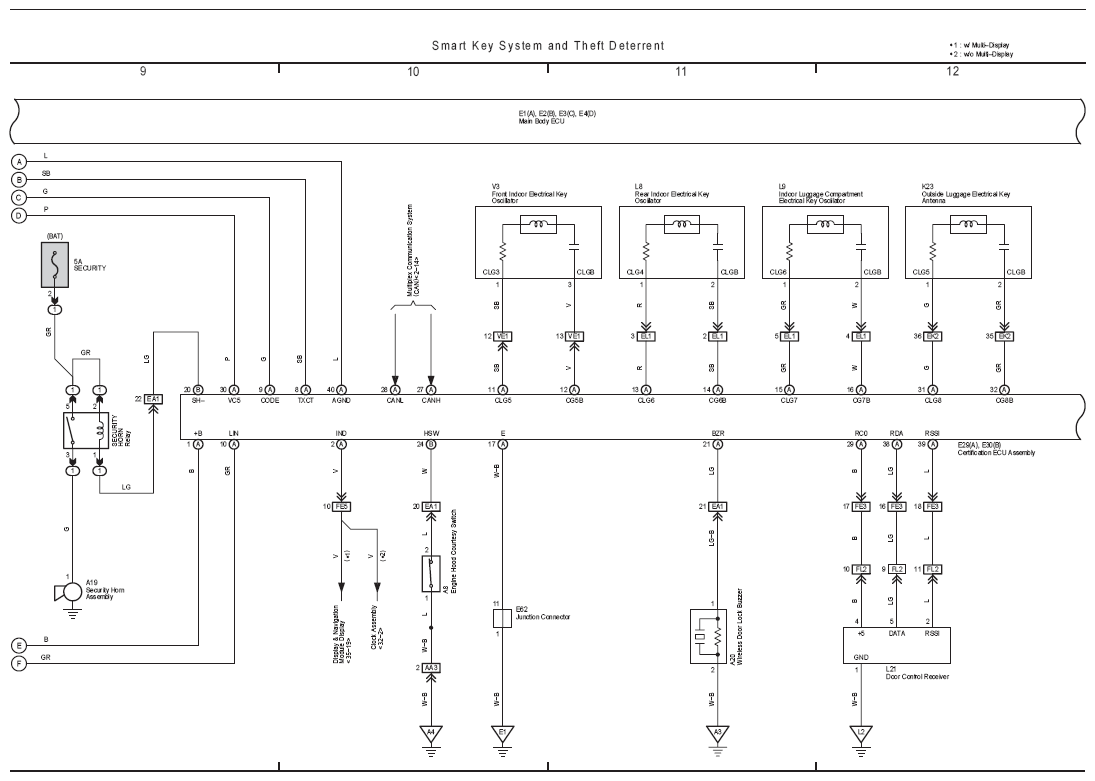

Fig 5: Smart Key System And Theft Deterrent Electrical Wiring Diagram (5 Of 5)

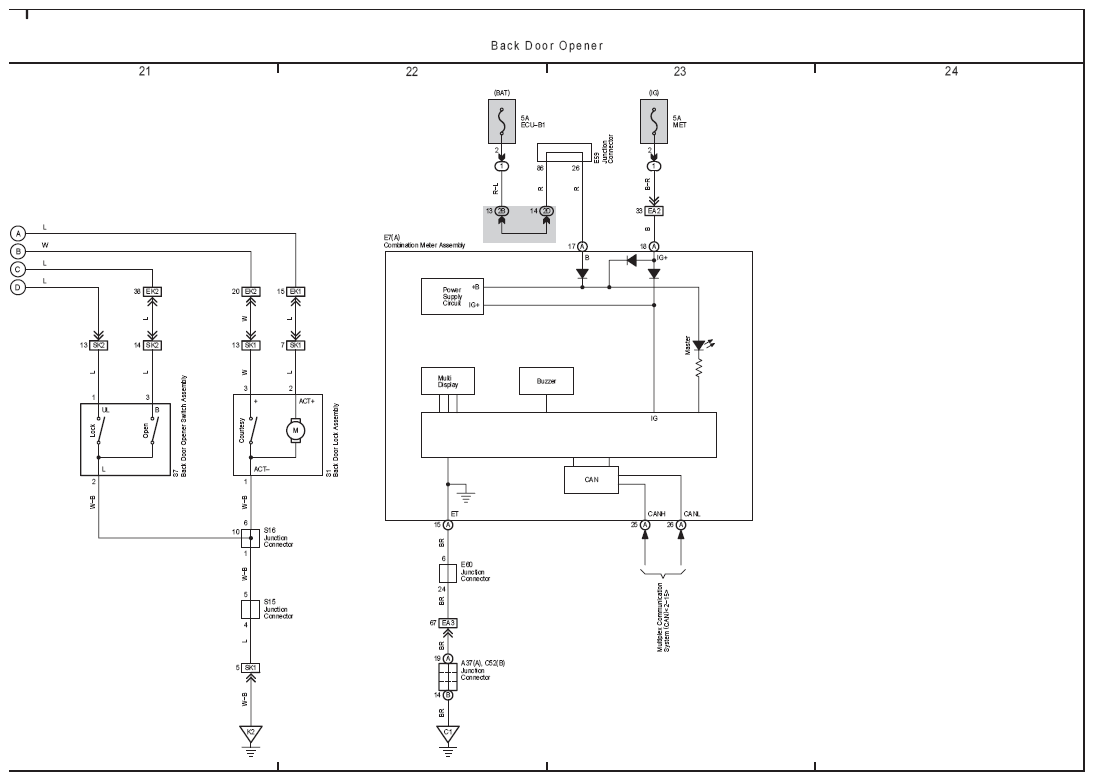

Fig 6: Back Door Opener Electrical Wiring Diagram
