36 Cool Box

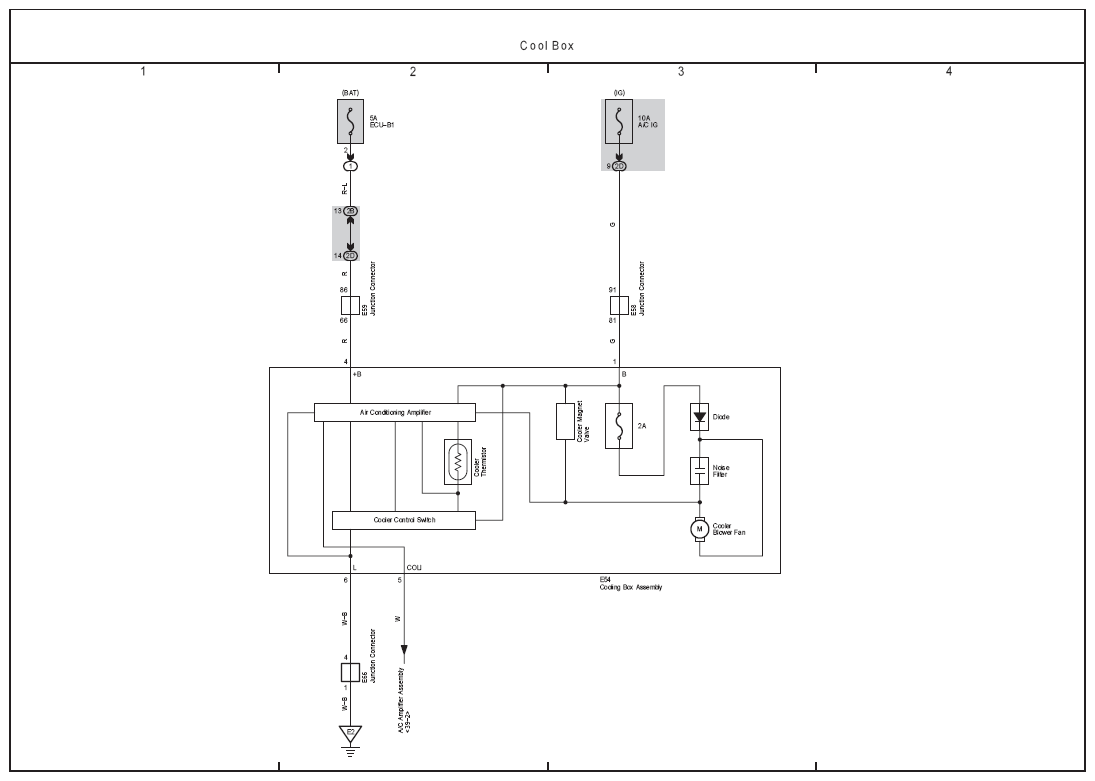

Fig 1: Cool Box Electrical Wiring Diagram

G07555975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
