35 Audio System (w/ Navigation), Multi-Display, Navigation System, Parking Assist (Rear View Monitor)

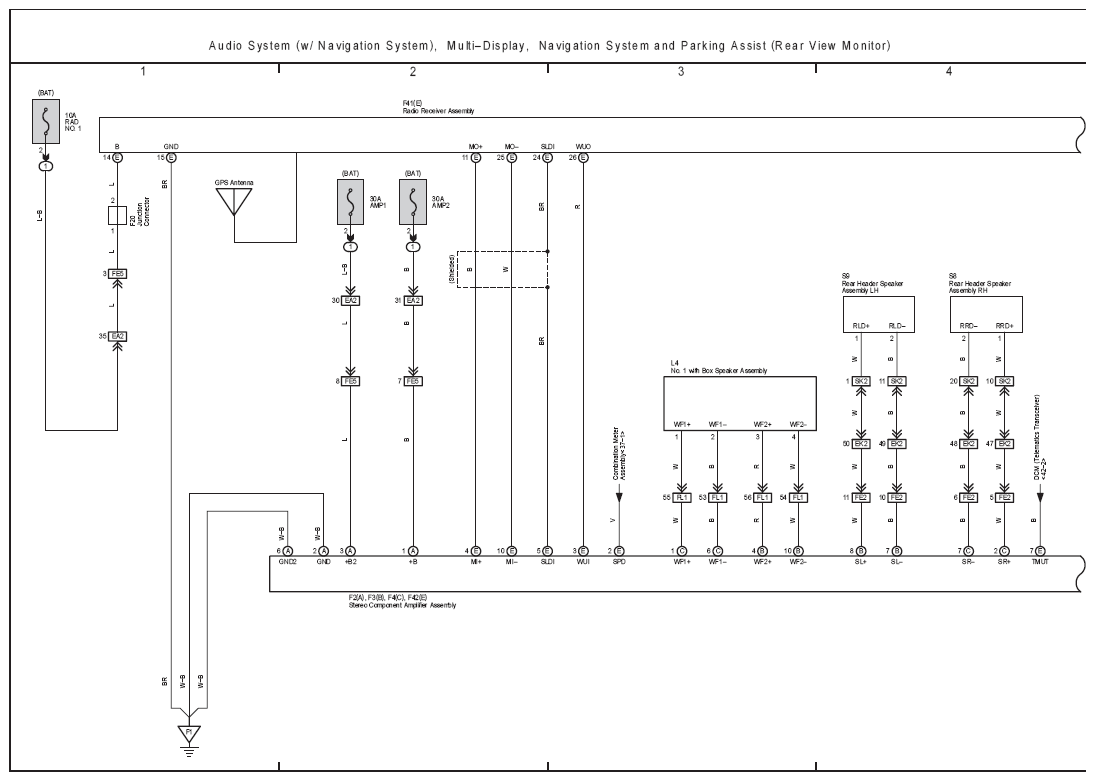

Fig 1: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

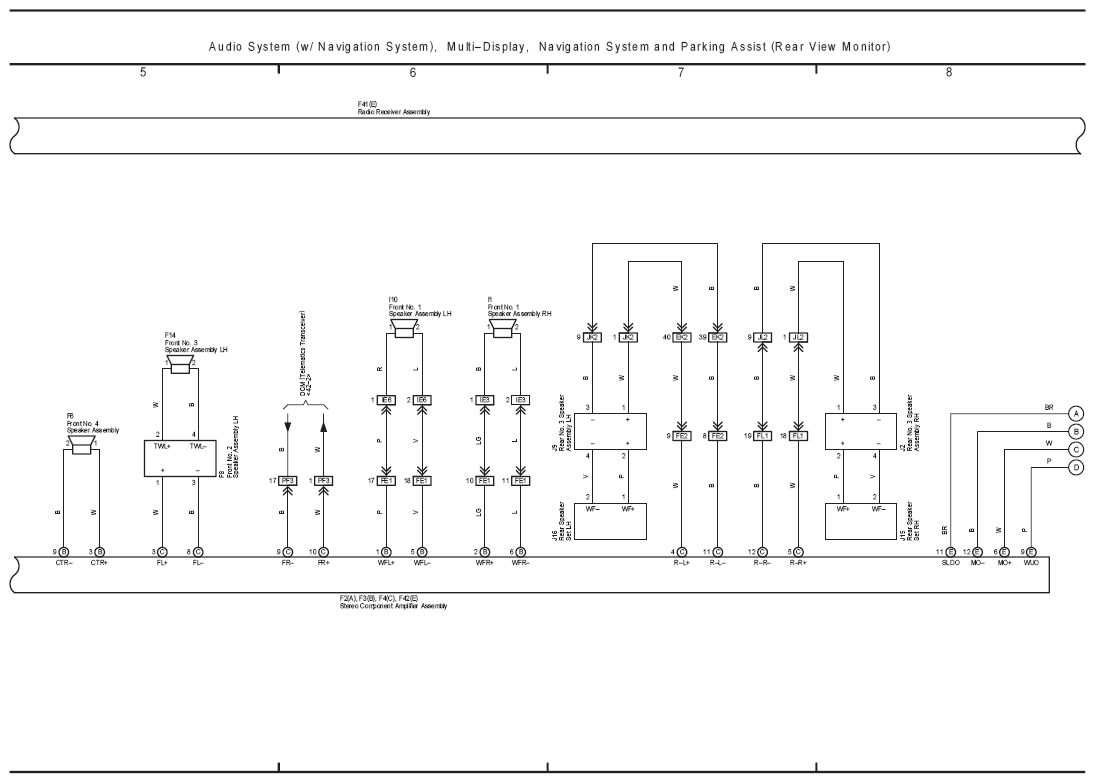

Fig 2: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

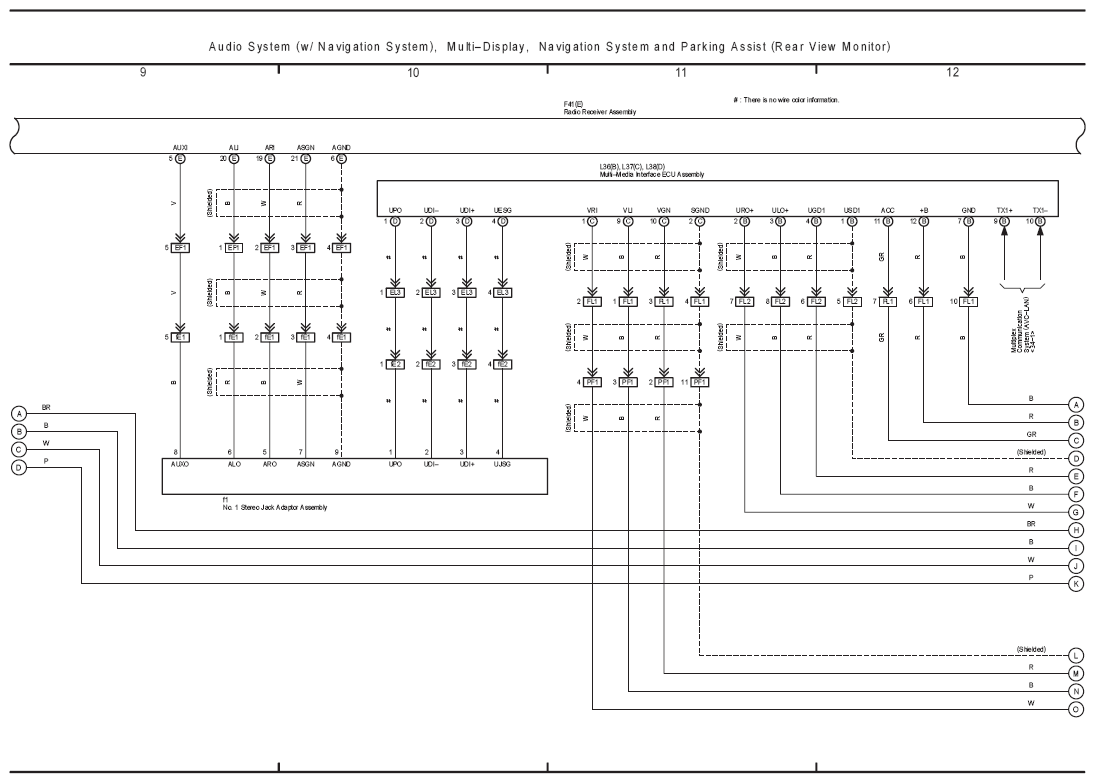

Fig 3: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

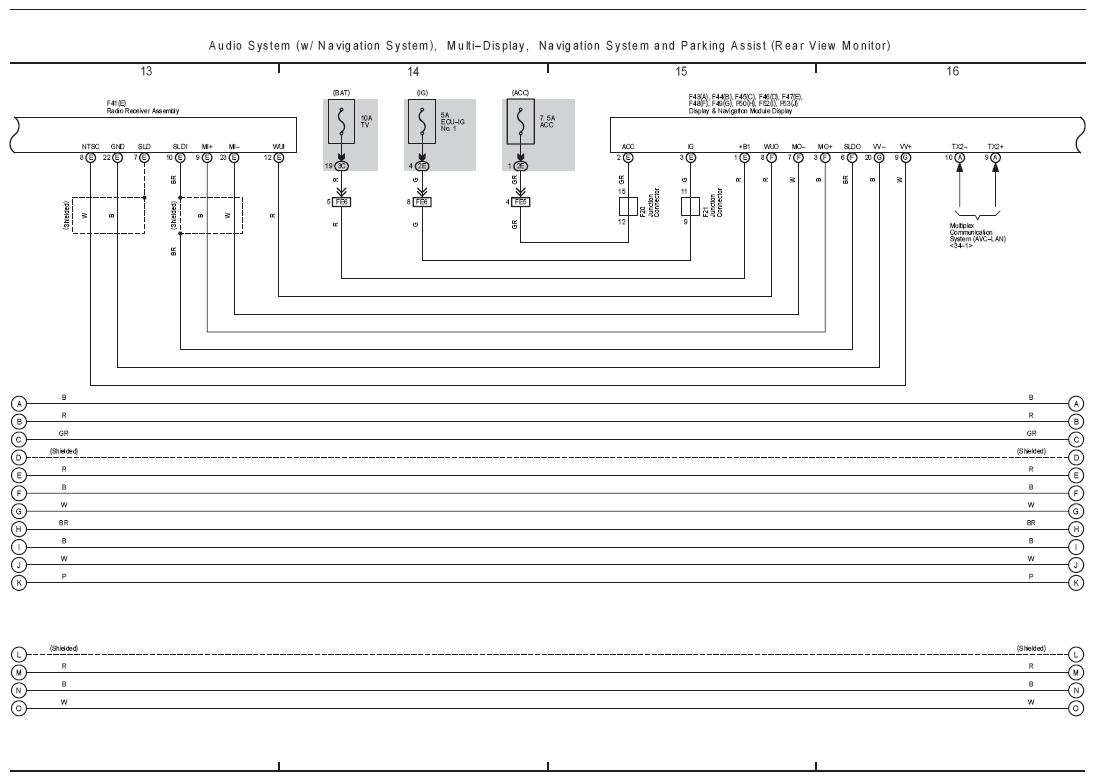

Fig 4: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

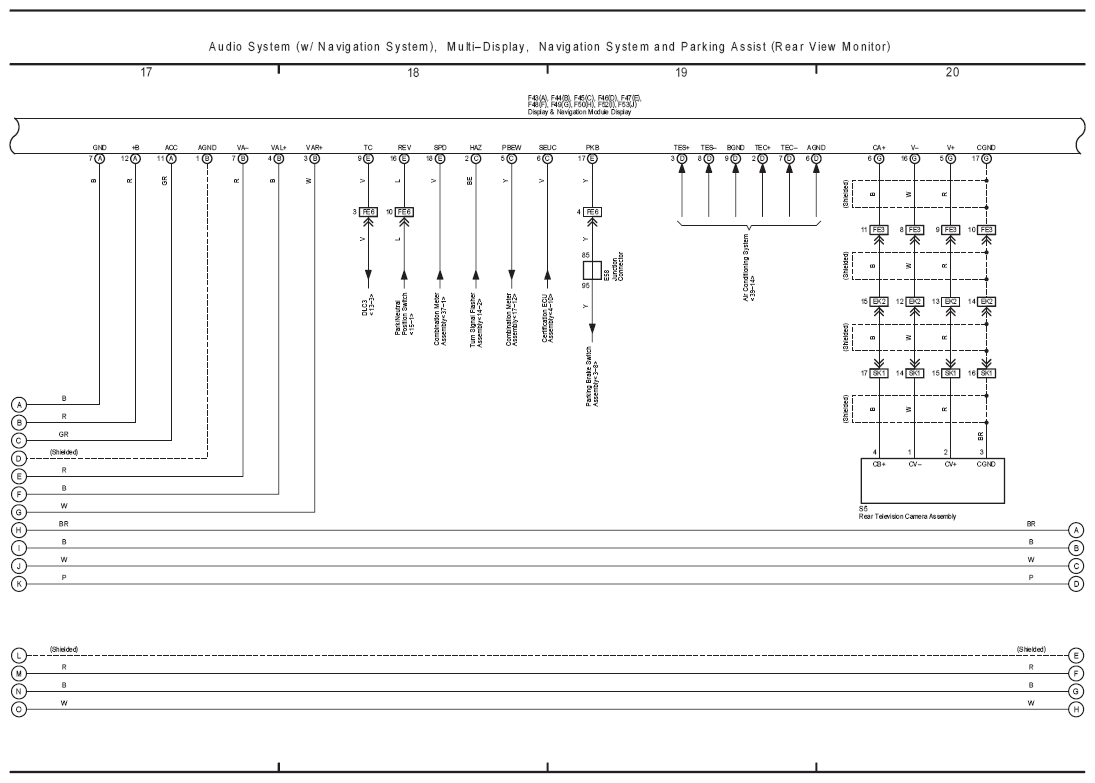

Fig 5: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

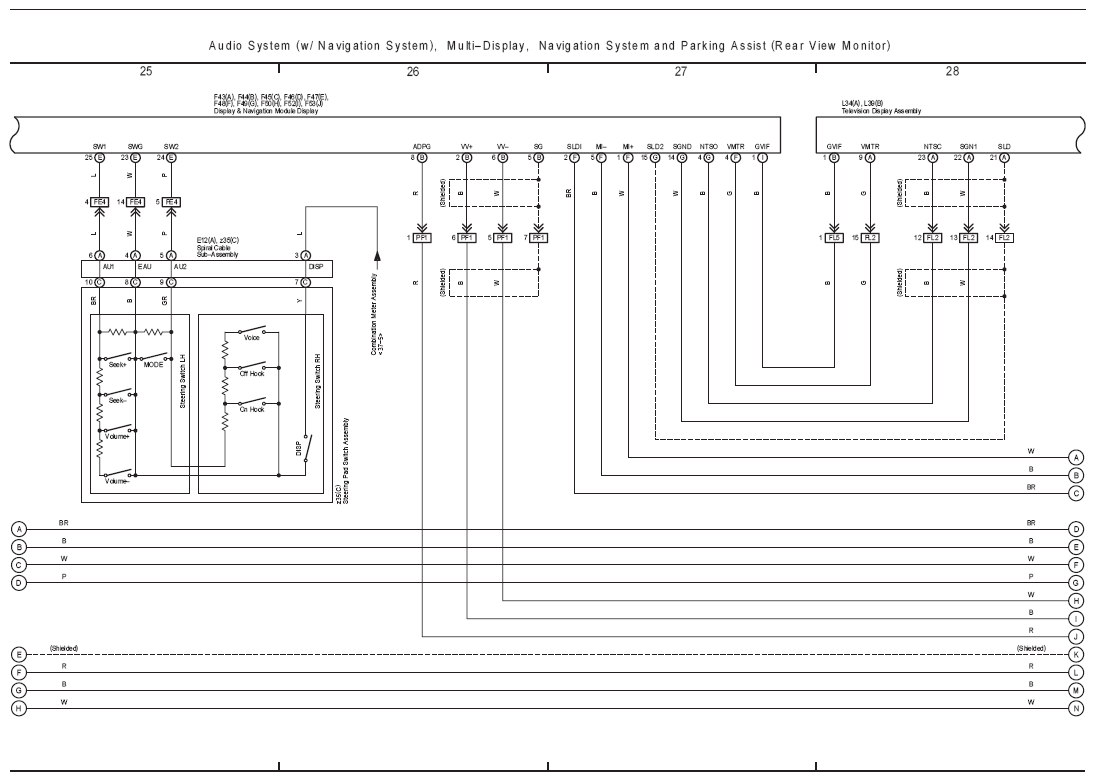

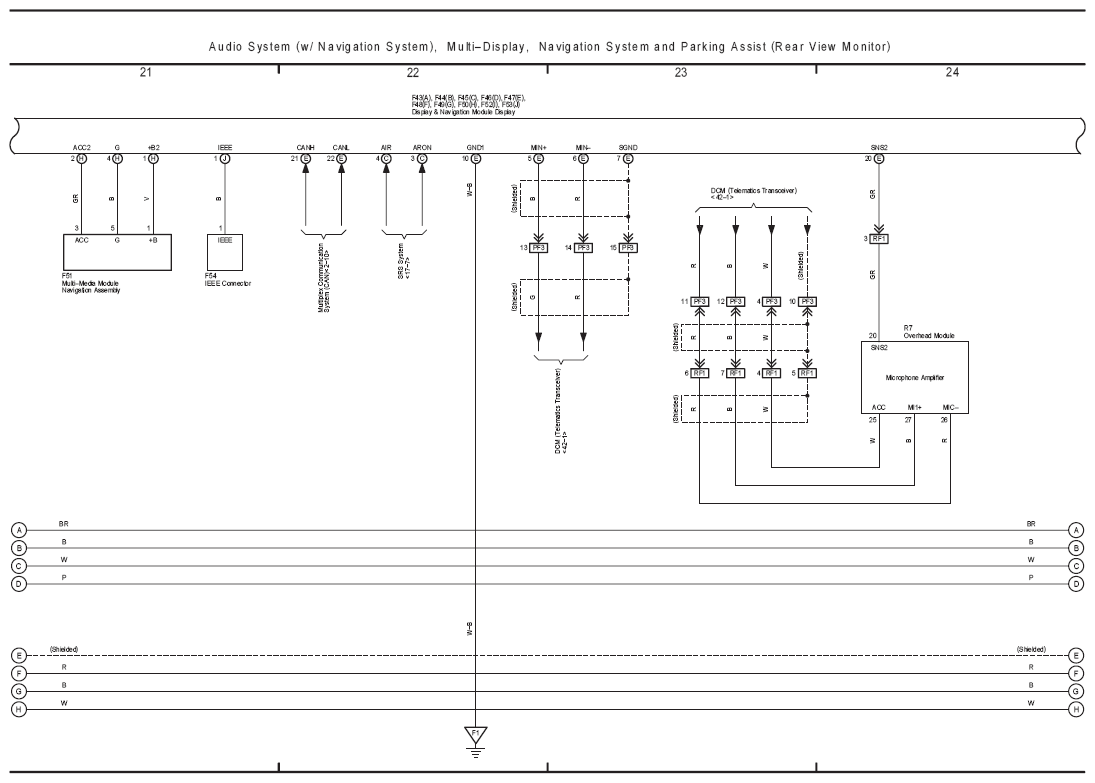

Fig 6: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (6 Of 8)

Fig 7: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (7 Of 8)

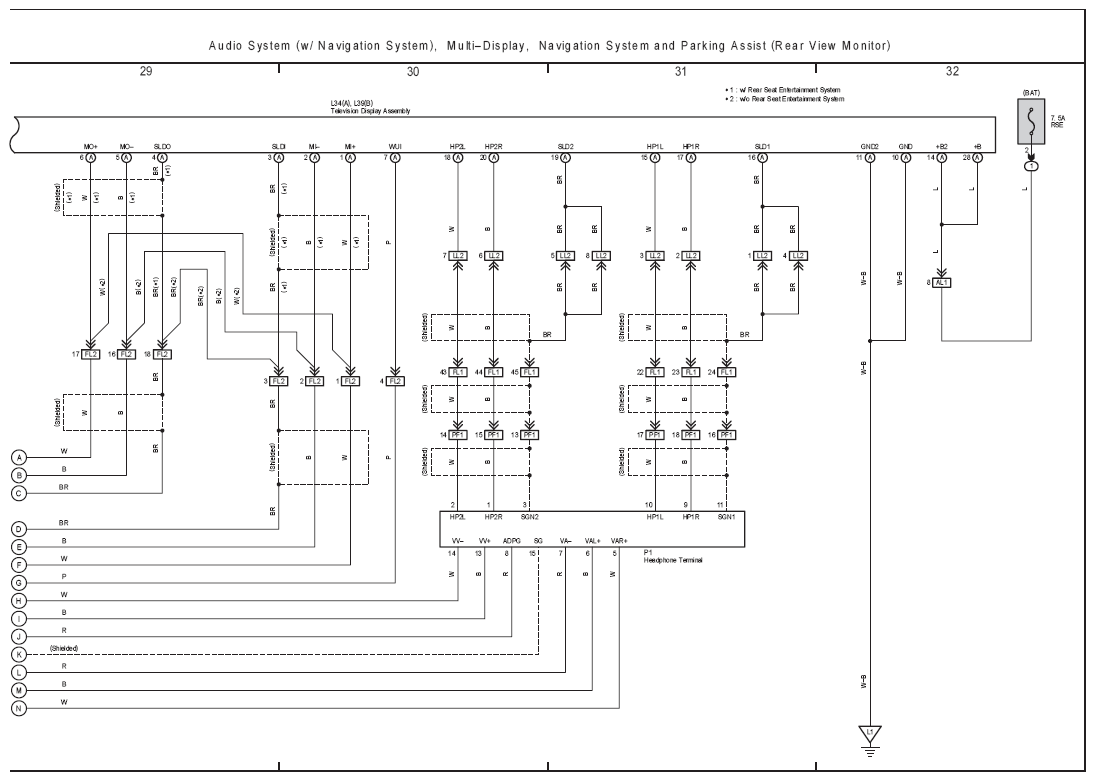

Fig 8: Audio System (w/ Navigation System), Multi-display, Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (8 Of 8)
