OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
32 Clock (w/o Multi-Display)
32 Clock (w/o Multi-Display)

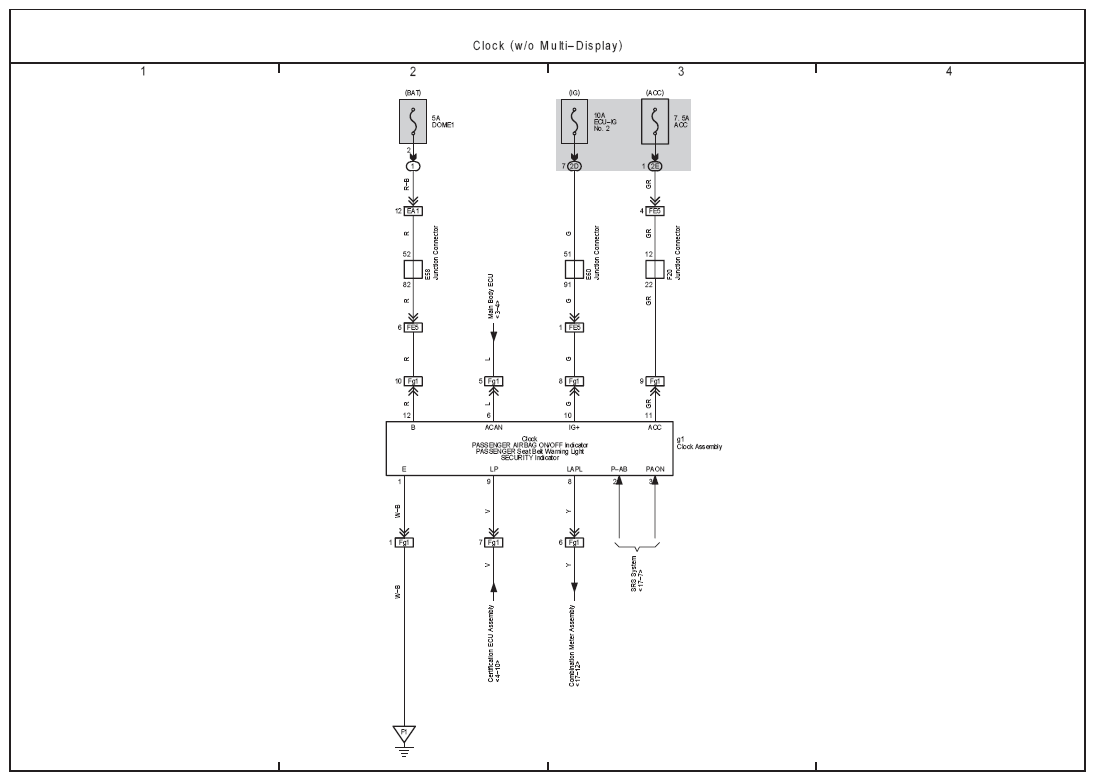

Fig 1: Clock (w/o Multi-display) Electrical Wiring Diagram
