3 Automatic Light Control, Door Lock Control, Front Fog Light, Headlight, Illumination, Interior Light, Light Auto Turn Off System, Remote Control Mirror, Taillight

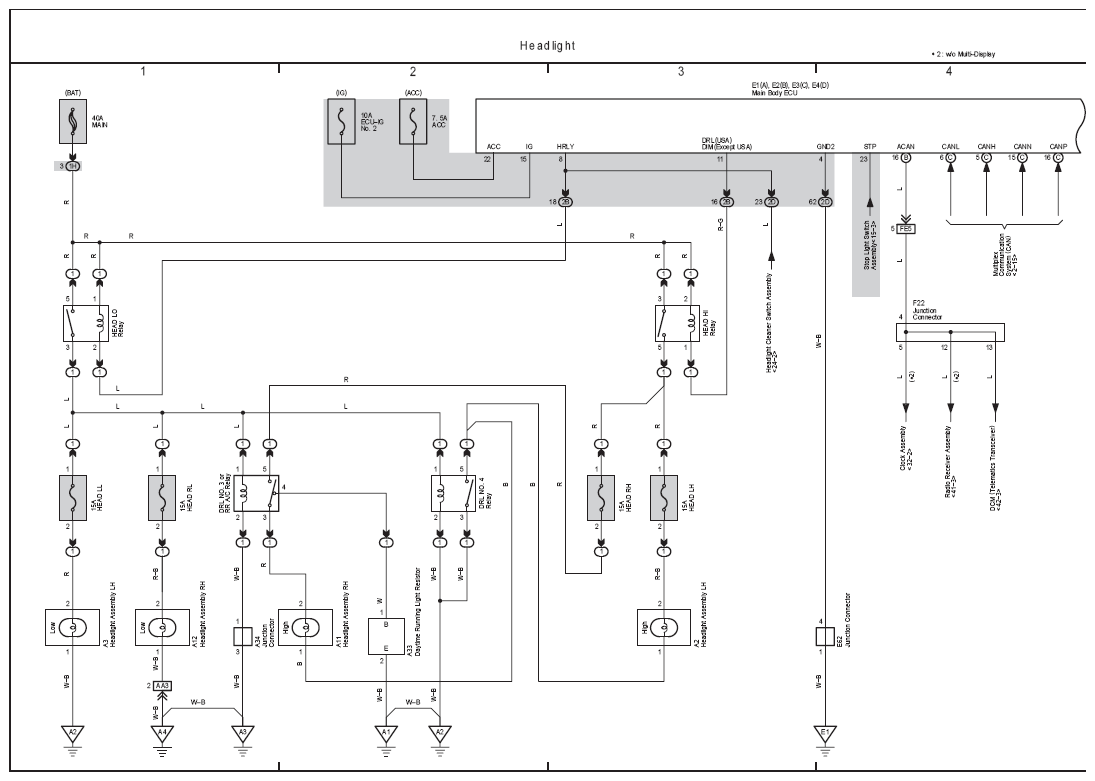

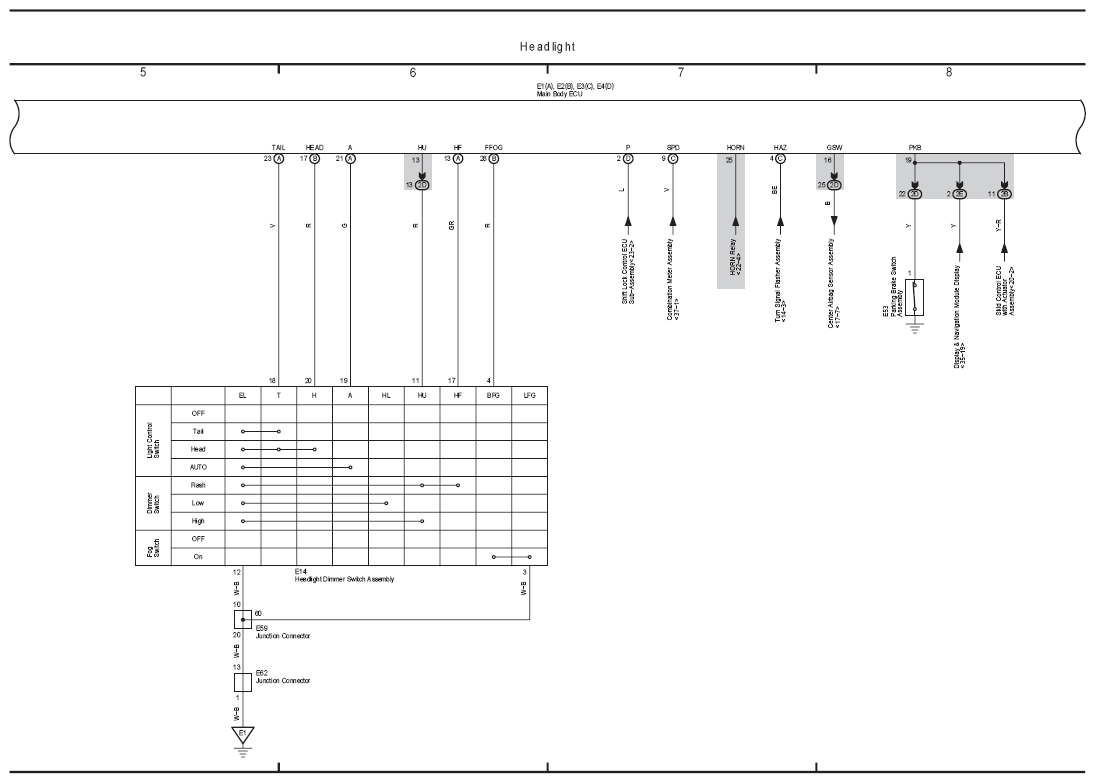

Fig 1: Headlight Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

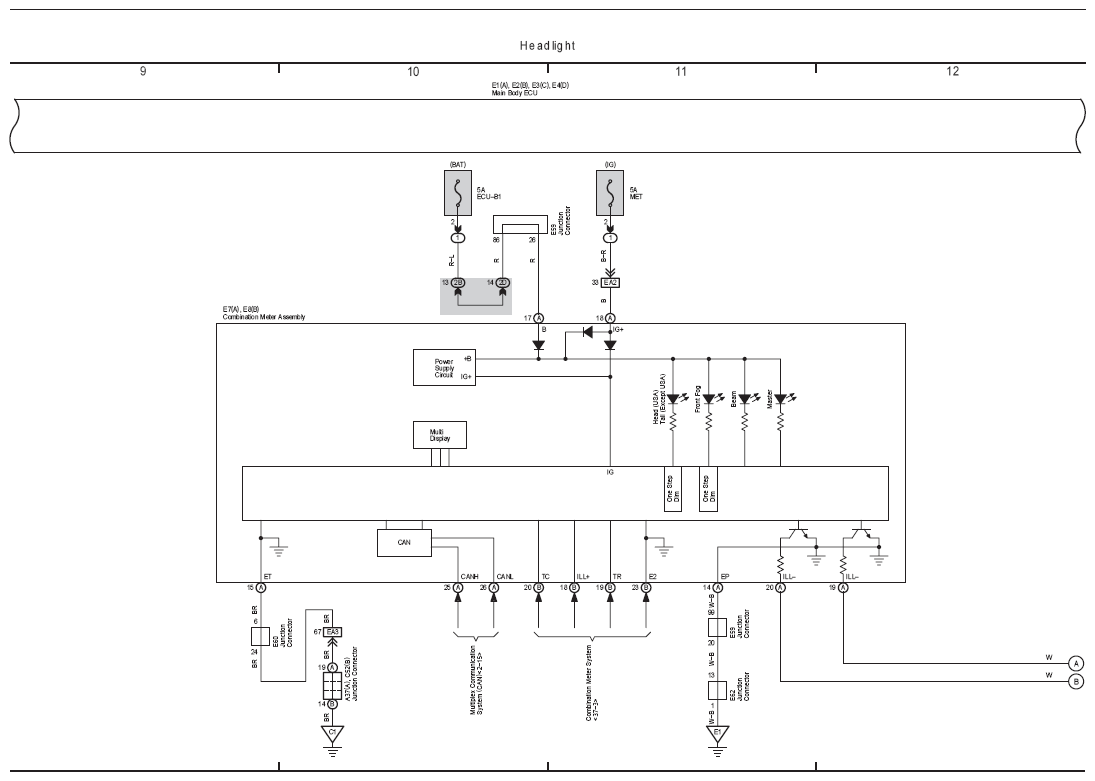

Fig 2: Headlight Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Headlight Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

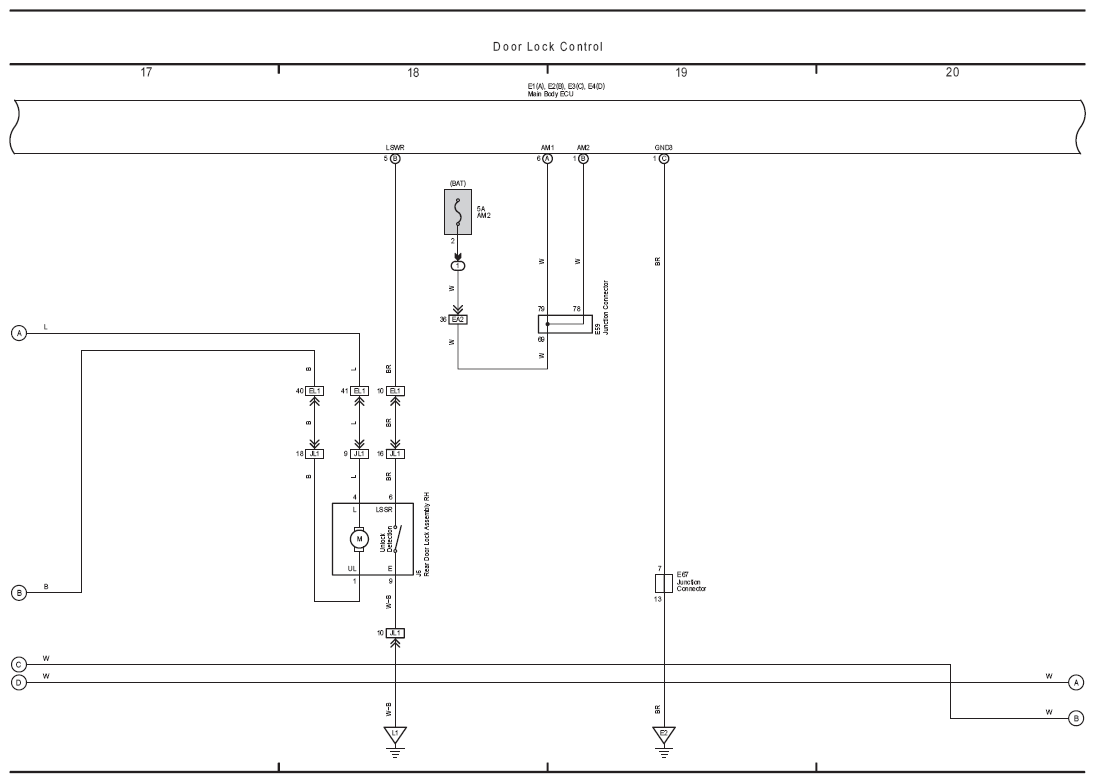

Fig 4: Door Lock Control Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

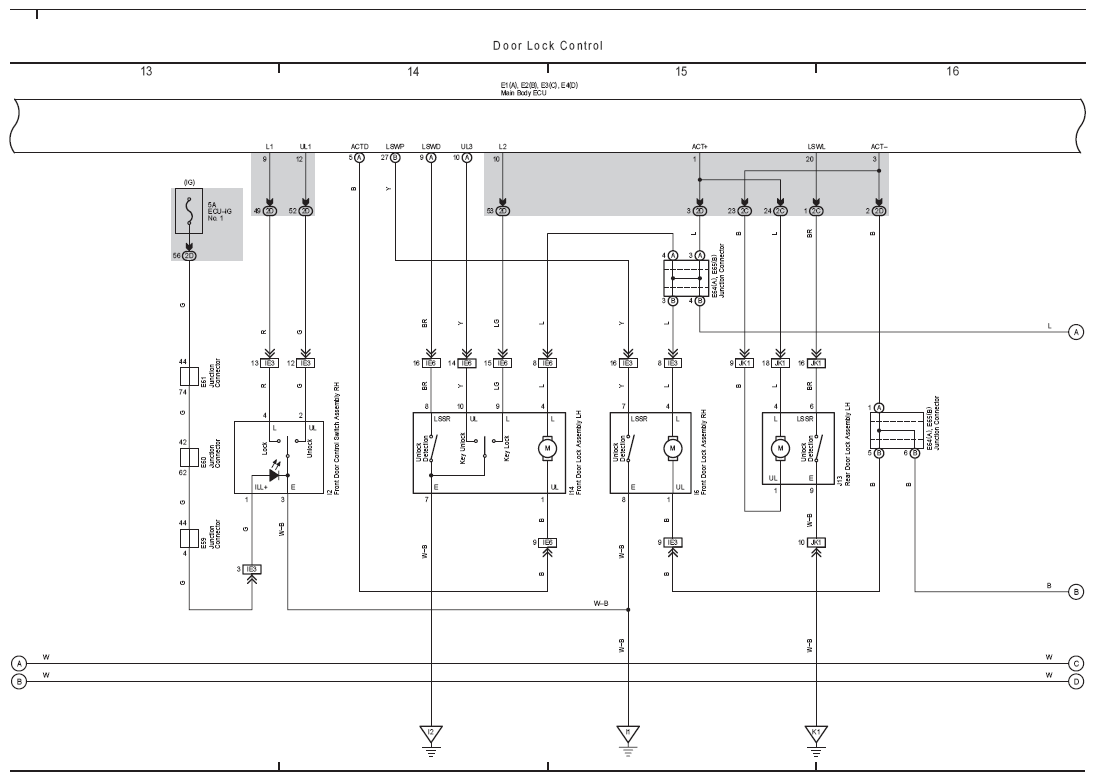

Fig 5: Door Lock Control Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

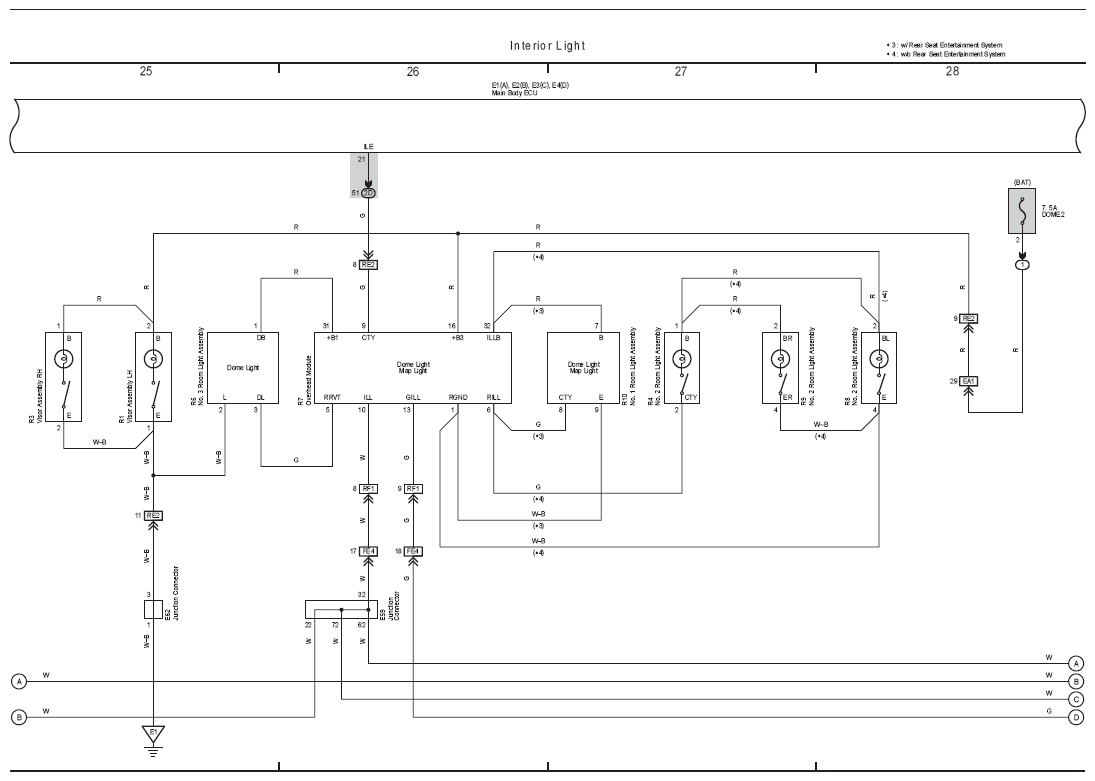

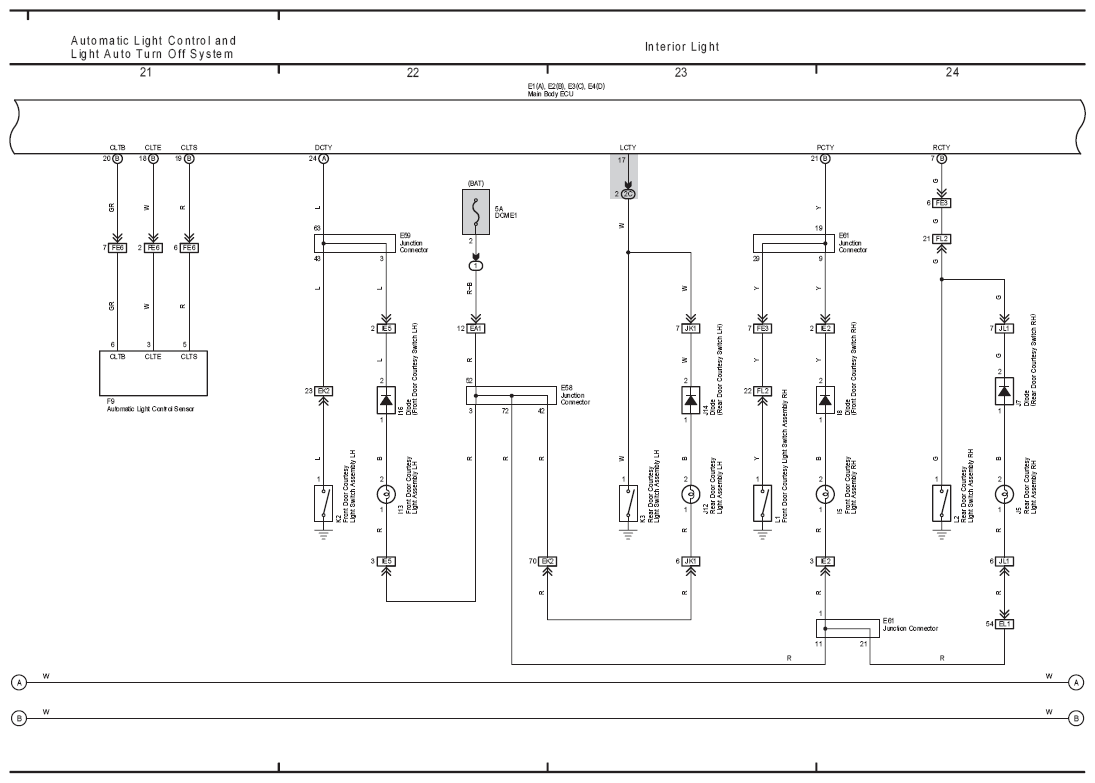

Fig 6: Interior Light Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Interior Light Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

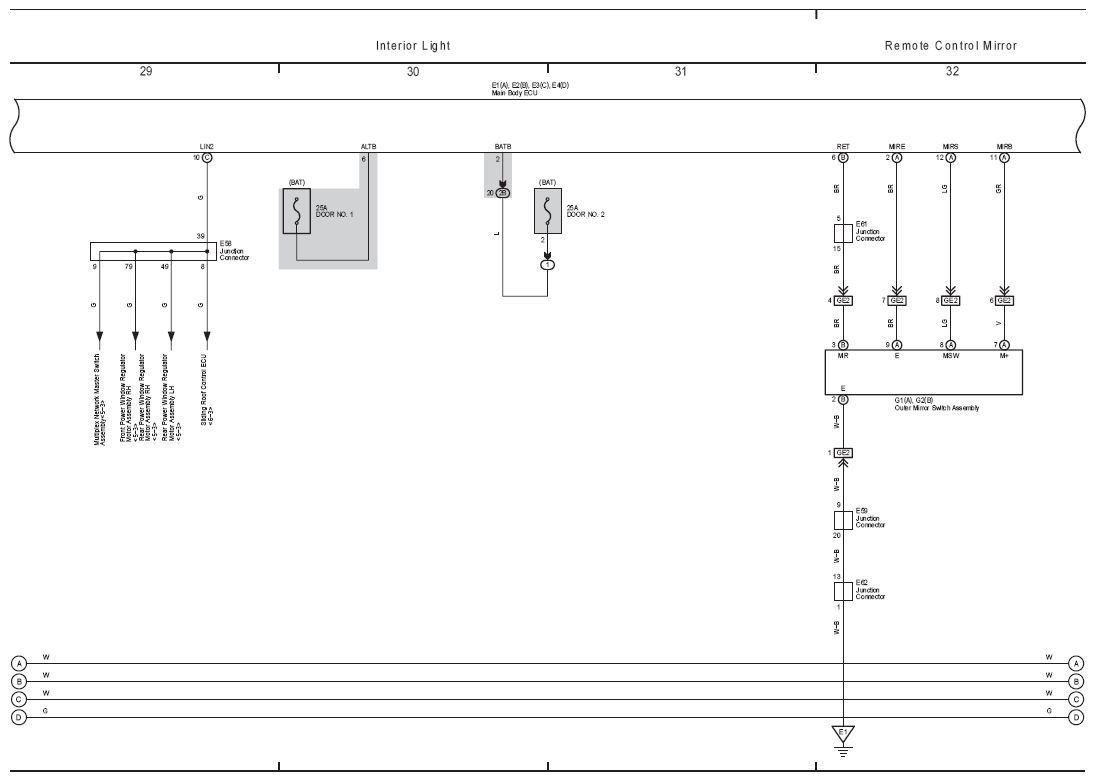

Fig 8: Interior Light Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

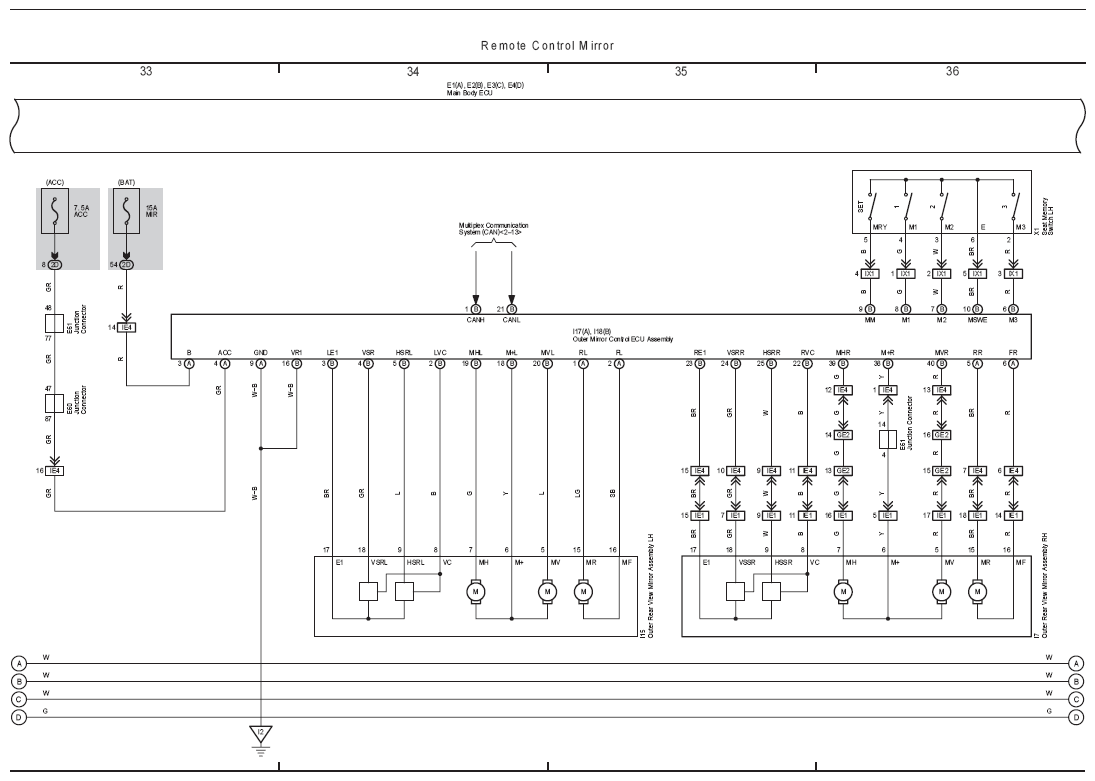

Fig 9: Remote Control Mirror Electrical Wiring Diagram

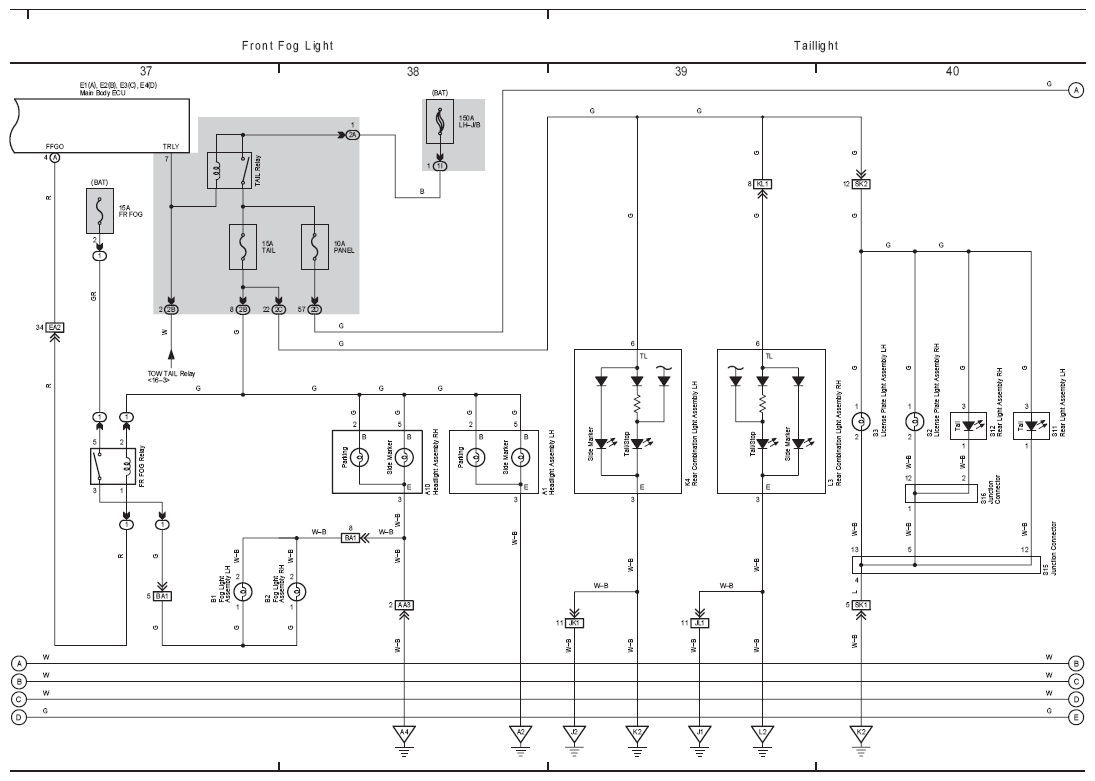

Fig 10: Front Fog Light Electrical Wiring Diagram

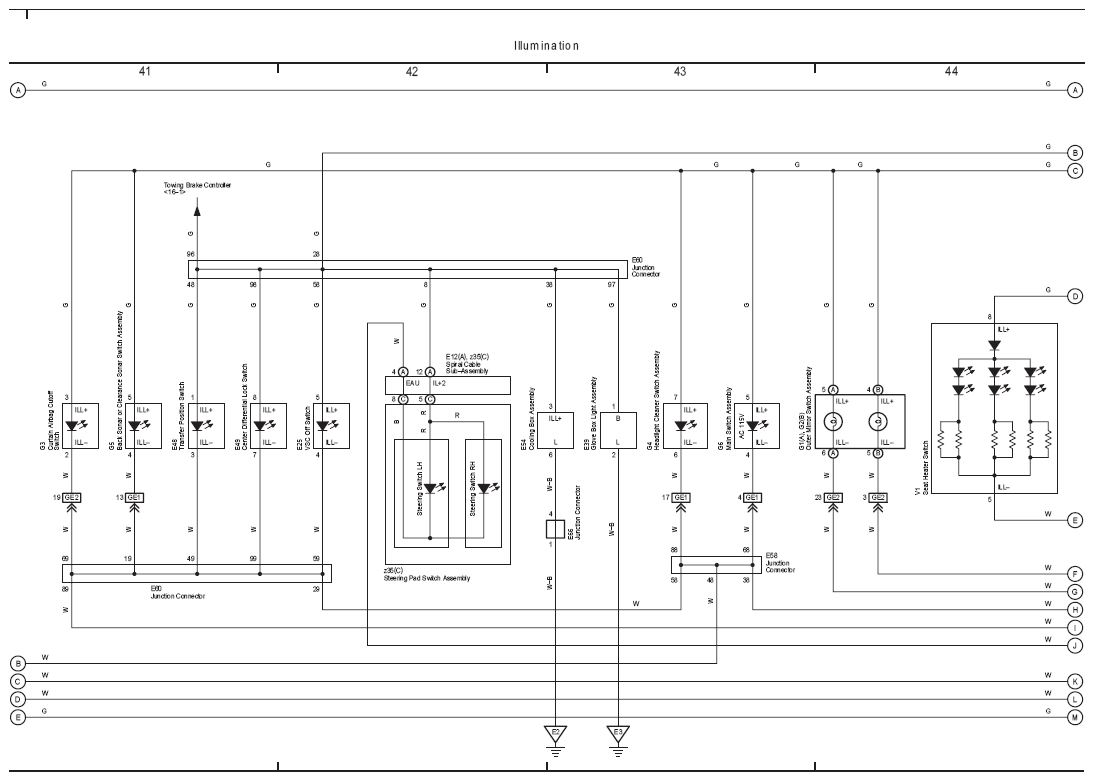

Fig 11: Illumination Electrical Wiring Diagram (1 Of 2)

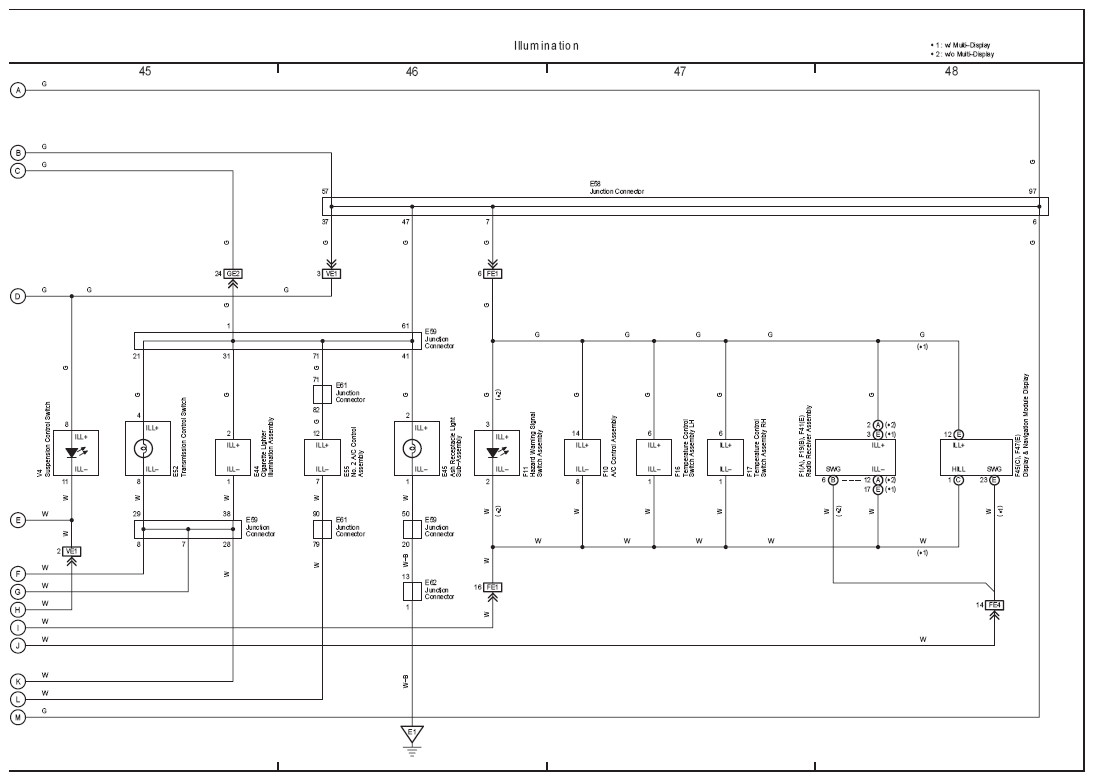

Fig 12: Illumination Electrical Wiring Diagram (2 Of 2)
