Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
29 Seat Heater (Rear)
29 Seat Heater (Rear)

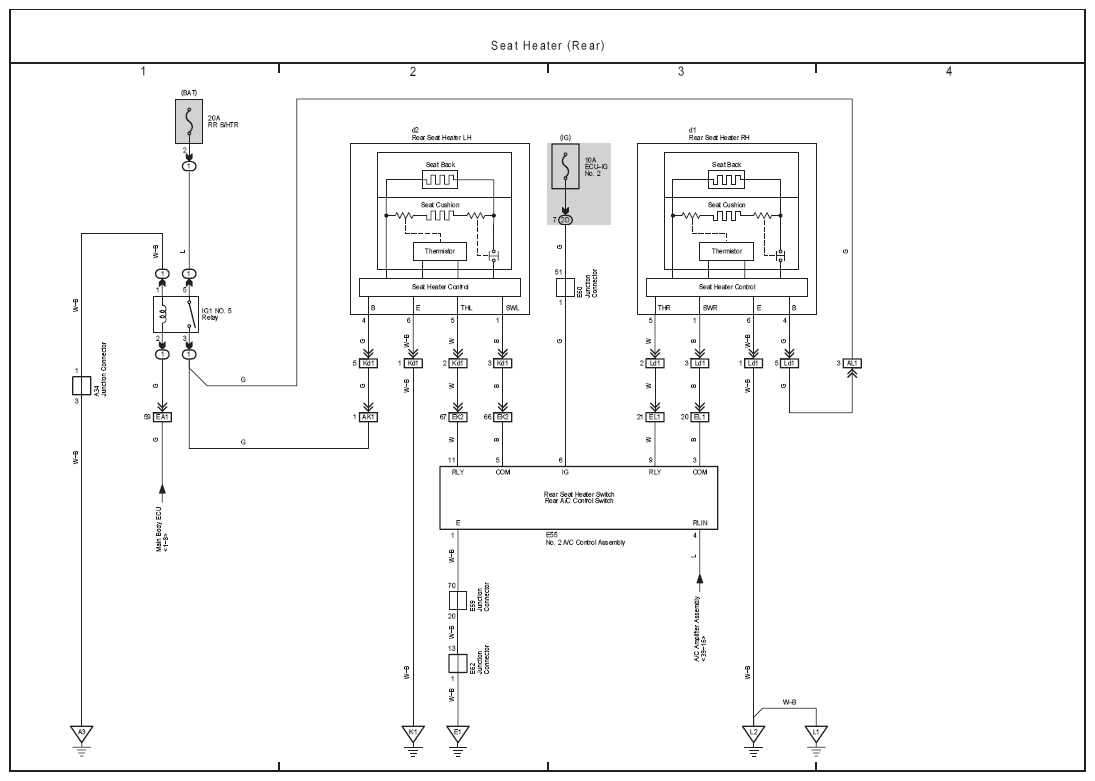

Fig 1: Rear Seat Heater Electrical Wiring Diagram
