OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
28 Seat Heater (Front)
28 Seat Heater (Front)

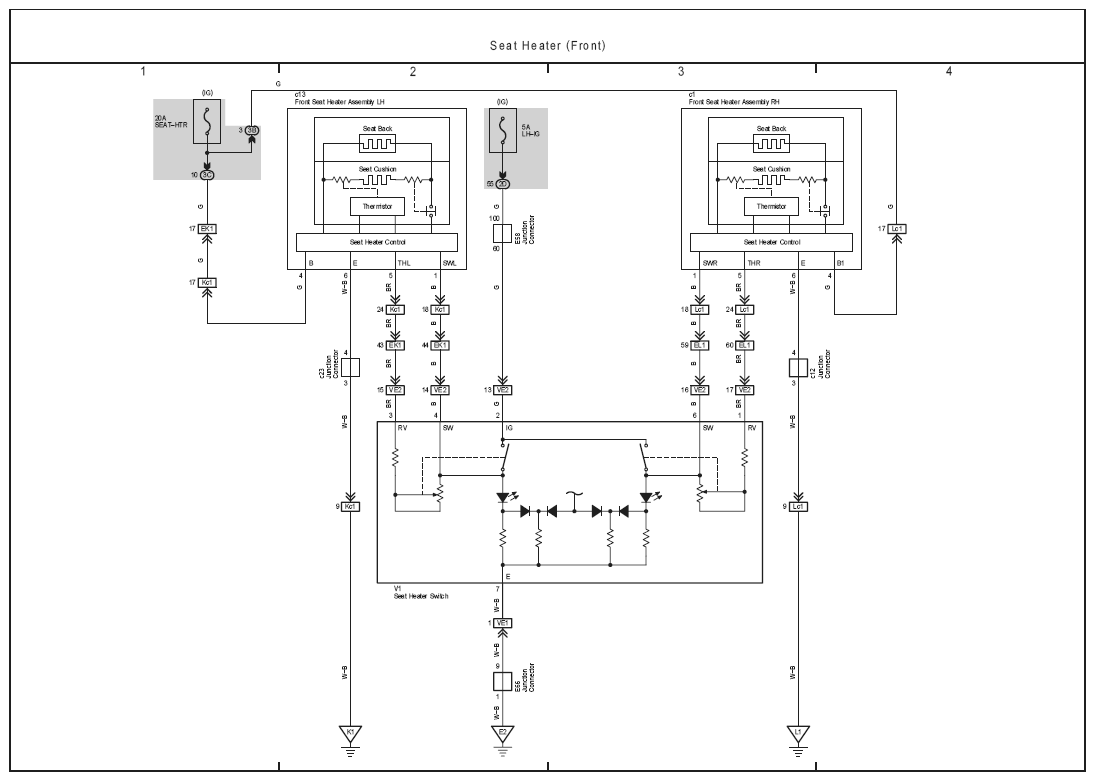

Fig 1: Front Seat Heater Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
