Overall Electrical Wiring Diagram
>>
27 Automatic Glare-Resistant EC Mirror with Compass, Mirror Heater
27 Automatic Glare-Resistant EC Mirror with Compass, Mirror Heater

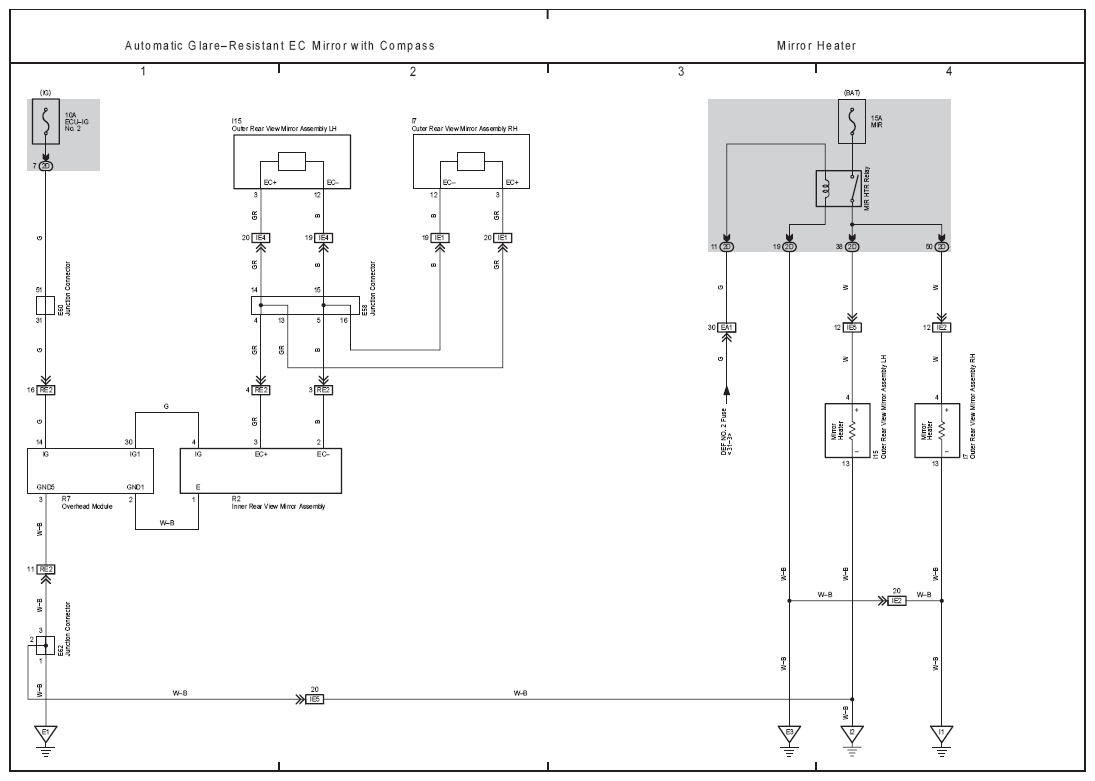

Fig 1: Automatic Glare-Resistant EC Mirror With Compass Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
