26 Garage Door Opener, Rear Wiper and Washer

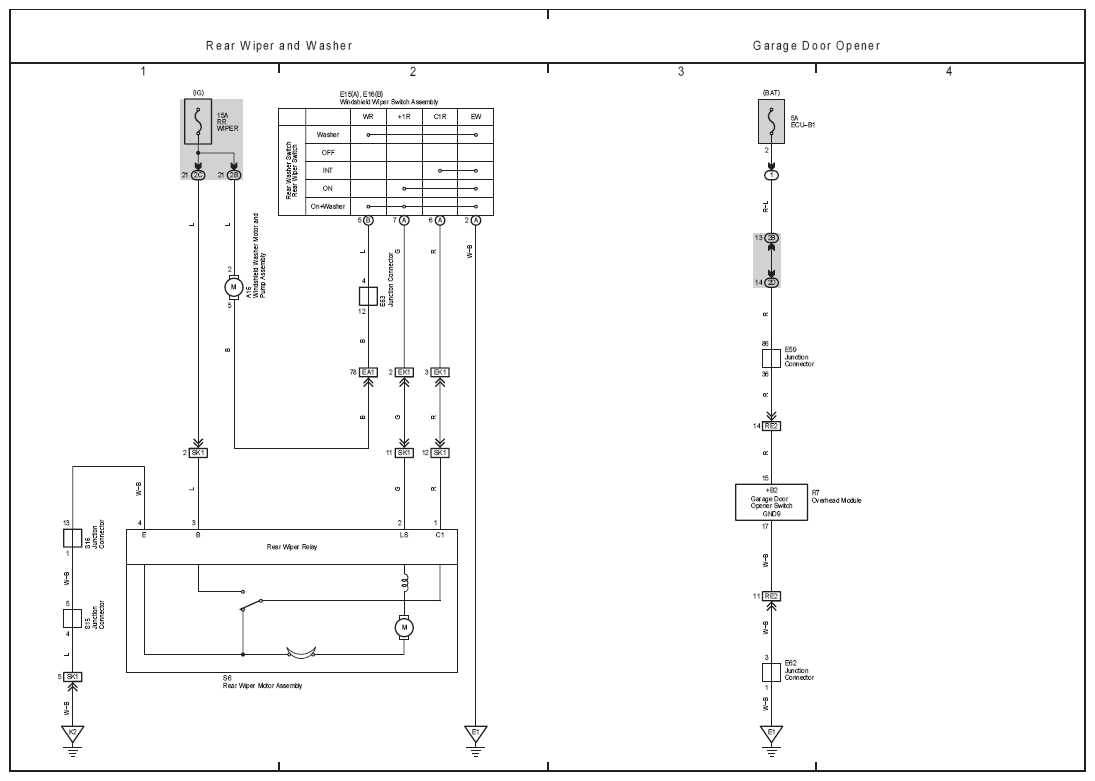

Fig 1: Garage Door Opener And Rear Wiper And Washer Electrical Wiring Diagram

G07555958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
