OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
25 Front Wiper and Washer (w/o Auto Wiper System)
25 Front Wiper and Washer (w/o Auto Wiper System)

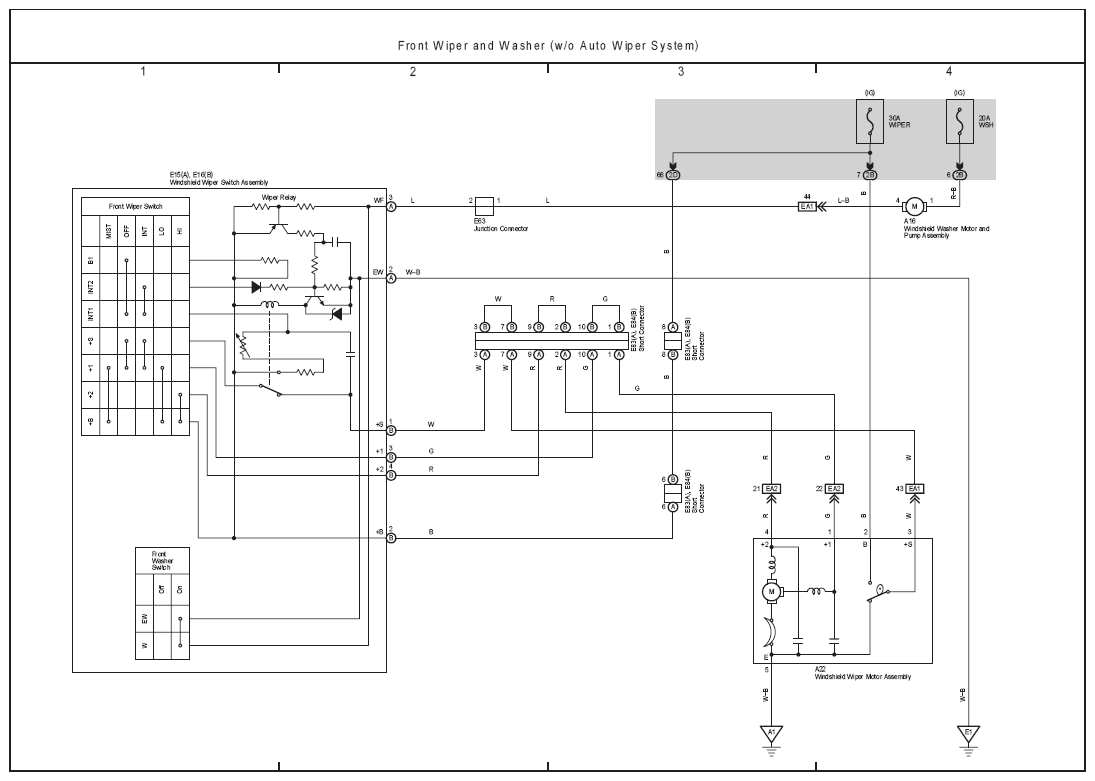

Fig 1: Front Wiper And Washer (w/o Auto Wiper System) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
