24 Headlight Cleaner

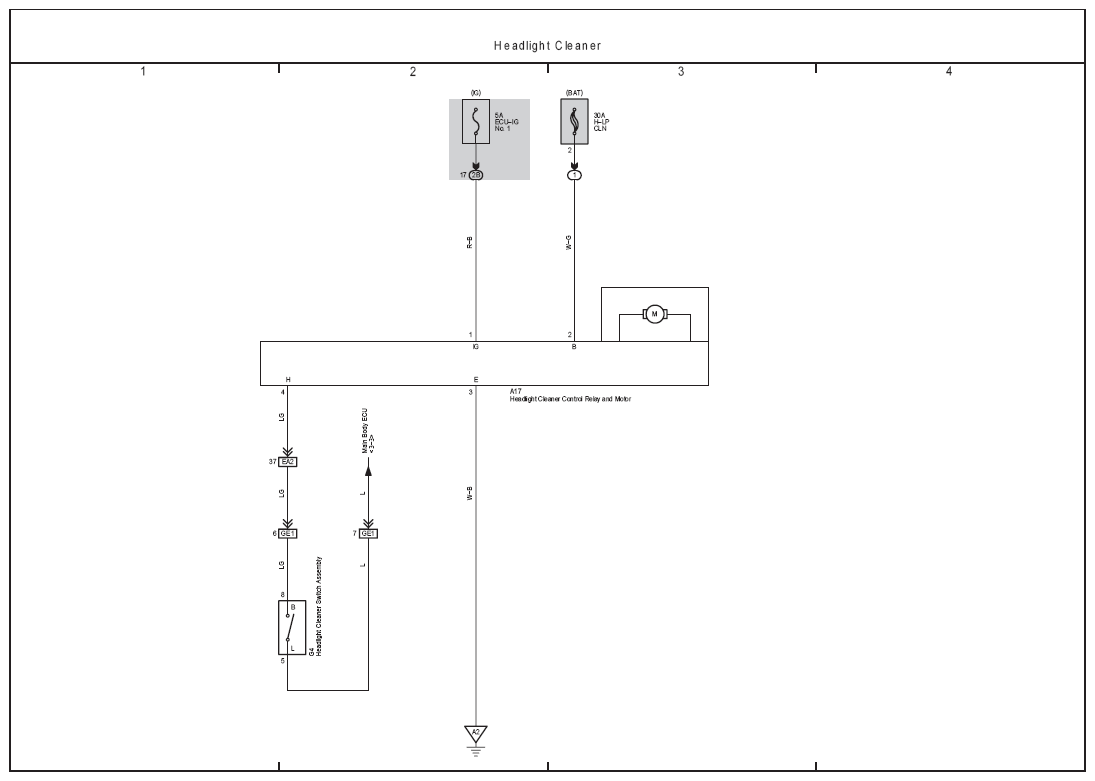

Fig 1: Headlight Cleaner Electrical Wiring Diagram

G07555956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
