22 Horn, Tire Pressure Warning System

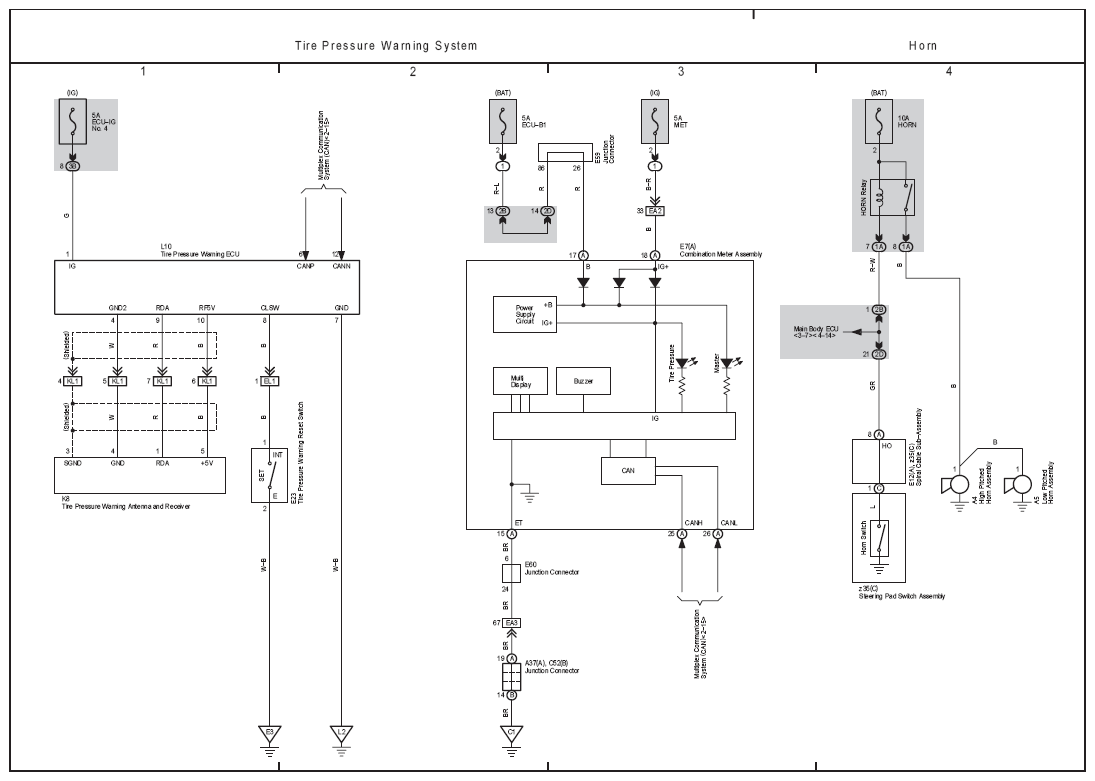

Fig 1: Tire Pressure Warning System Electrical Wiring Diagram

G07555954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
