21 Multi Mode 4WD

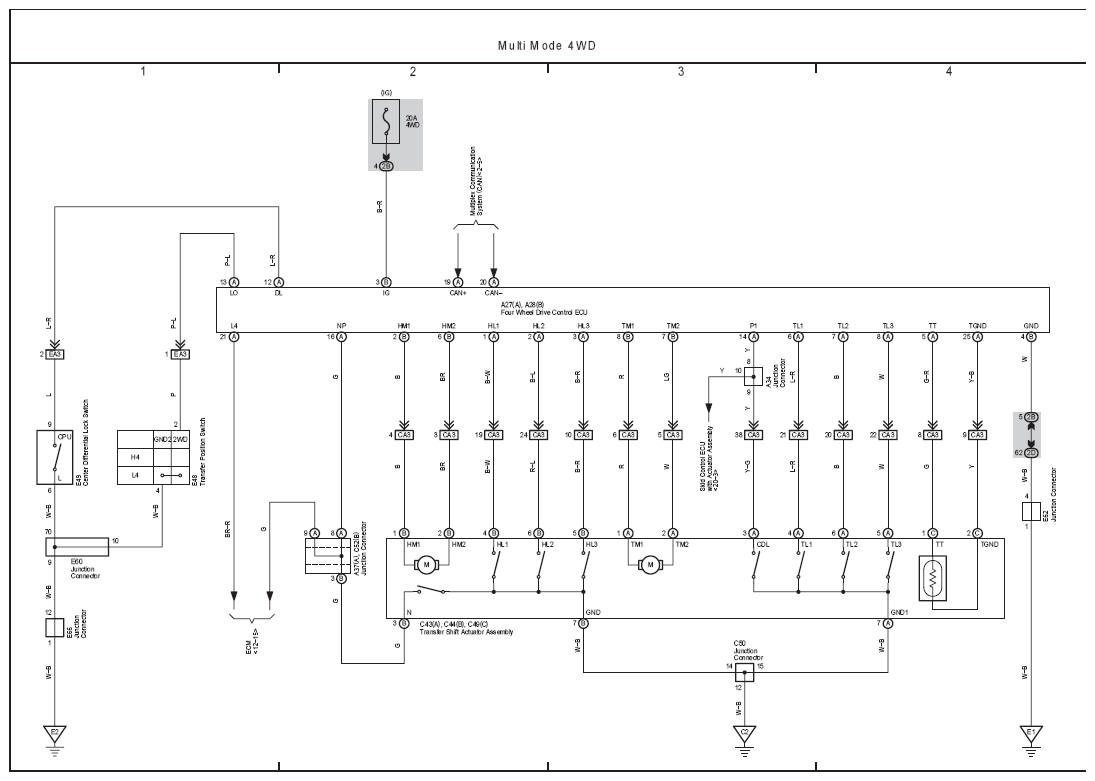

Fig 1: Multi Mode 4WD Electrical Wiring Diagram (1 Of 2)
G07555952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

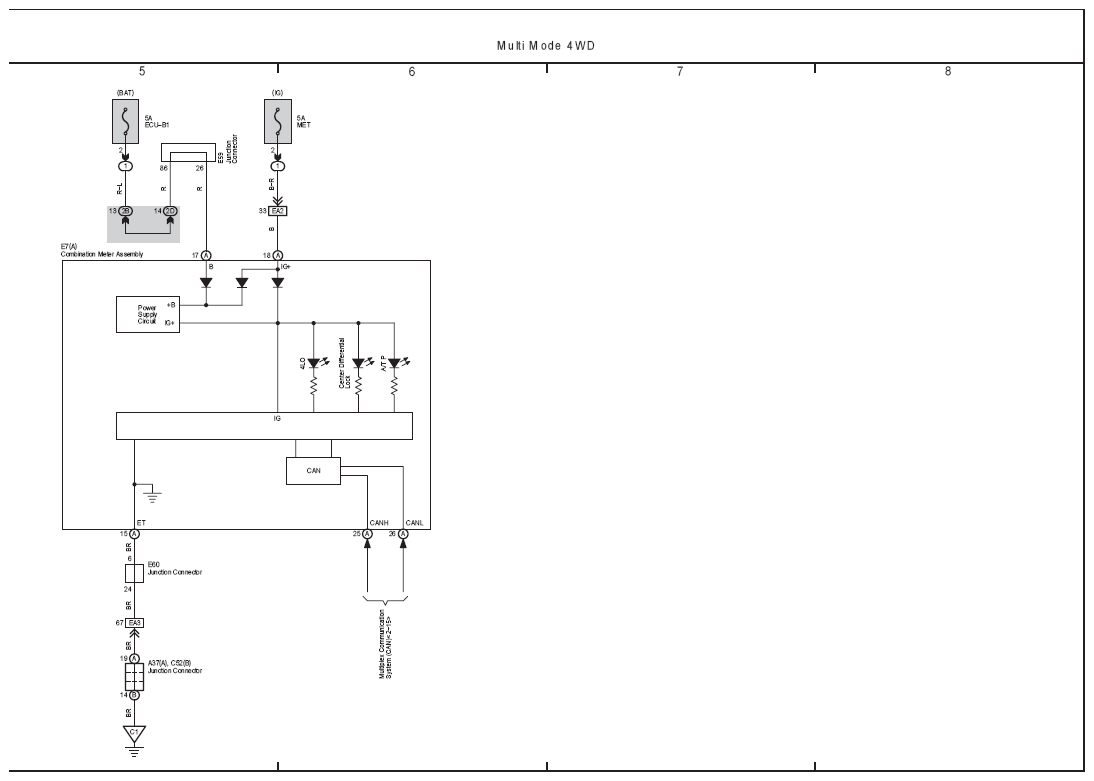

Fig 2: Multi Mode 4WD Electrical Wiring Diagram (2 Of 2)
G07555953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
