Overall Electrical Wiring Diagram
>>
20 ABS, A-TRAC, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC
20 ABS, A-TRAC, Brake Assist, Crawl, EBD, Hill-Start Assist Control, VSC

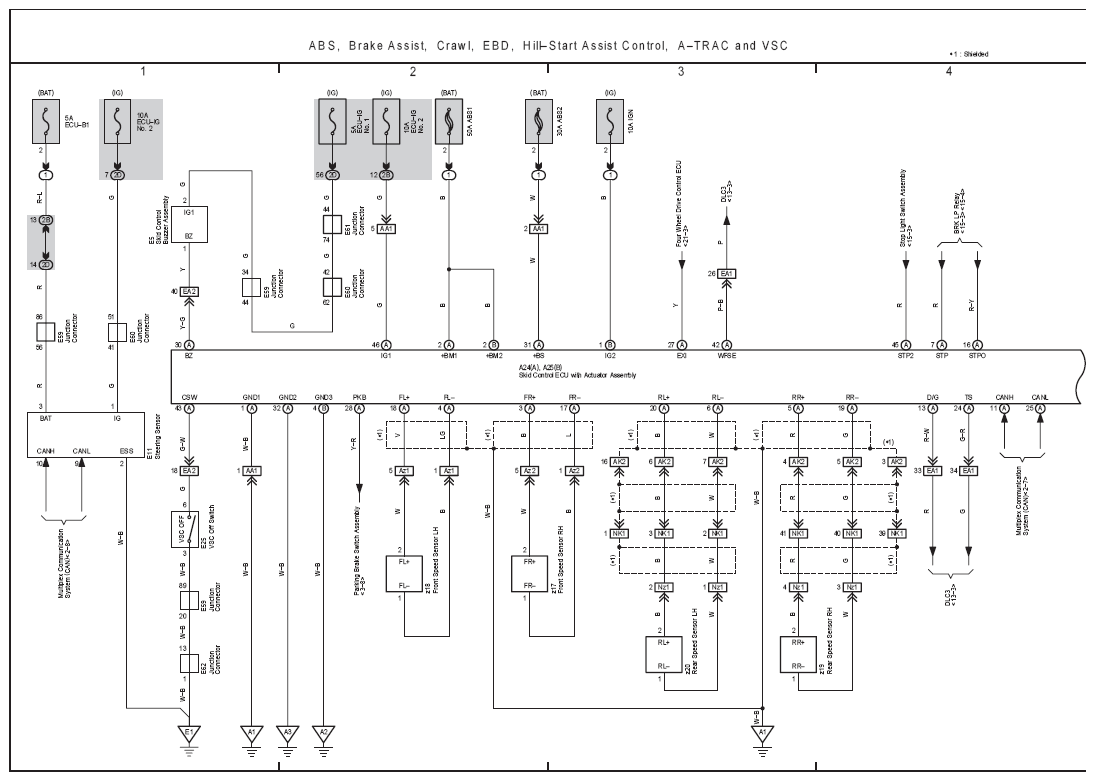

Fig 1: ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, A-TRAC And VSC Electrical Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

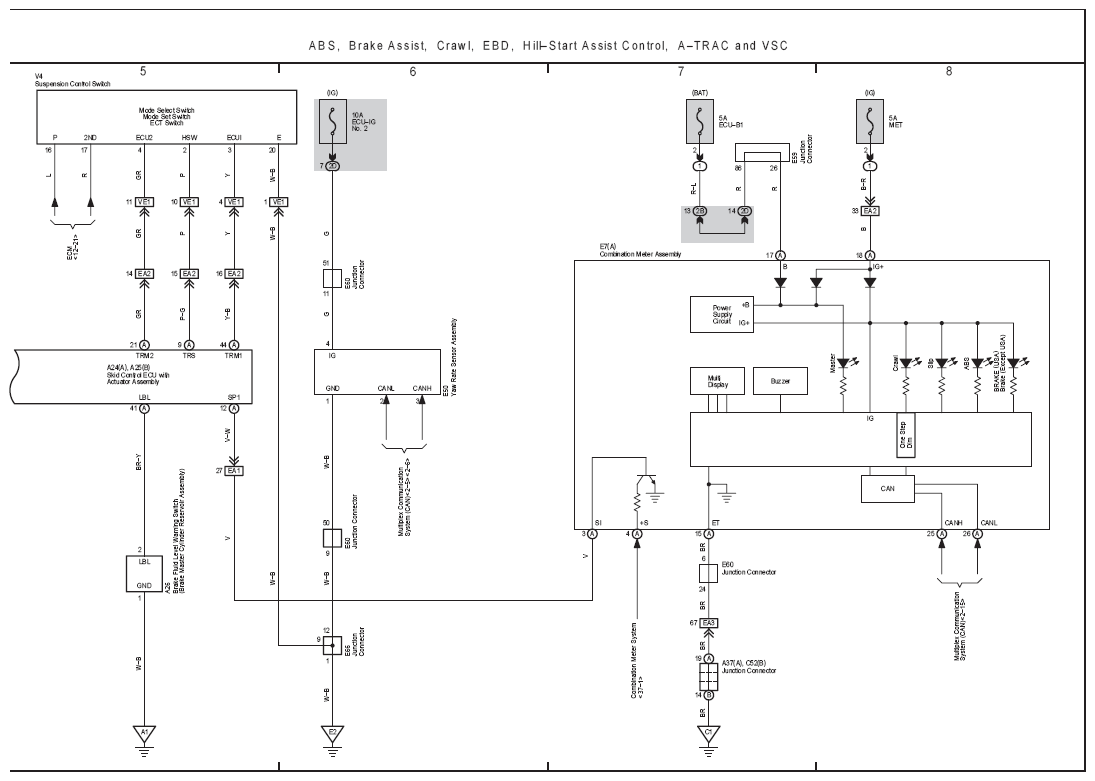

Fig 2: ABS, Brake Assist, Crawl, EBD, Hill-Start Assist Control, A-TRAC And VSC Electrical Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
