OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
18 Pre-Collision System
18 Pre-Collision System

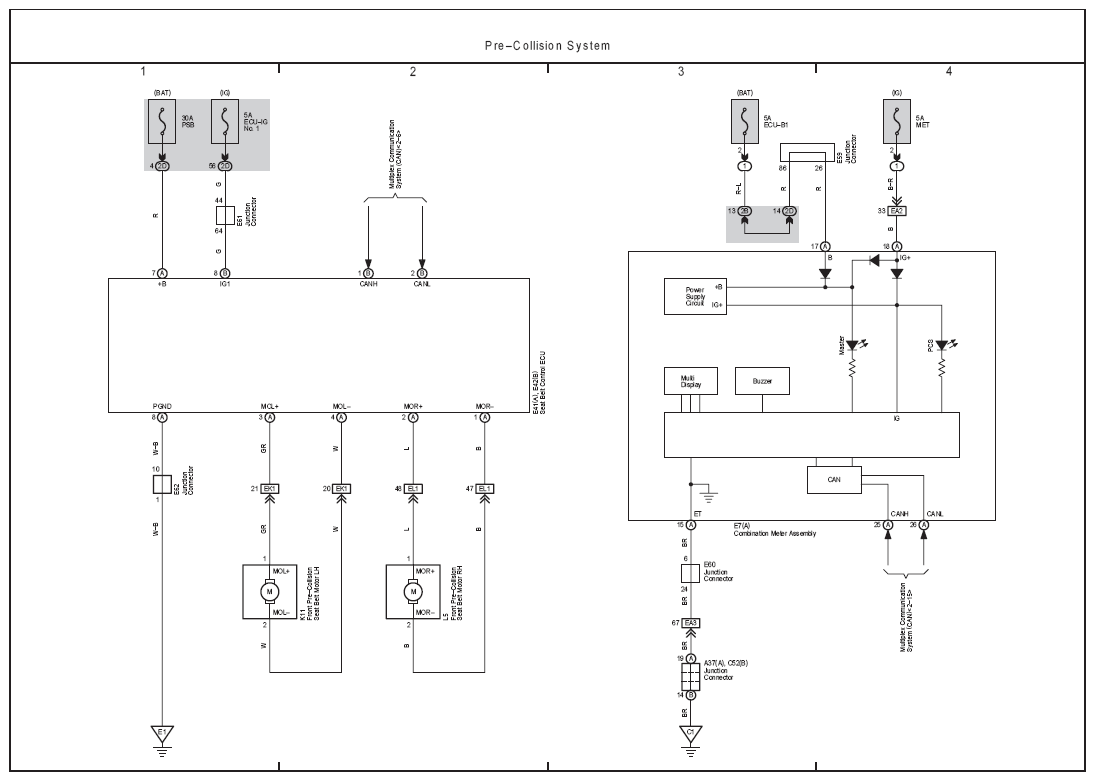

Fig 1: Pre-Collision System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
