17 Seat Belt Warning, SRS

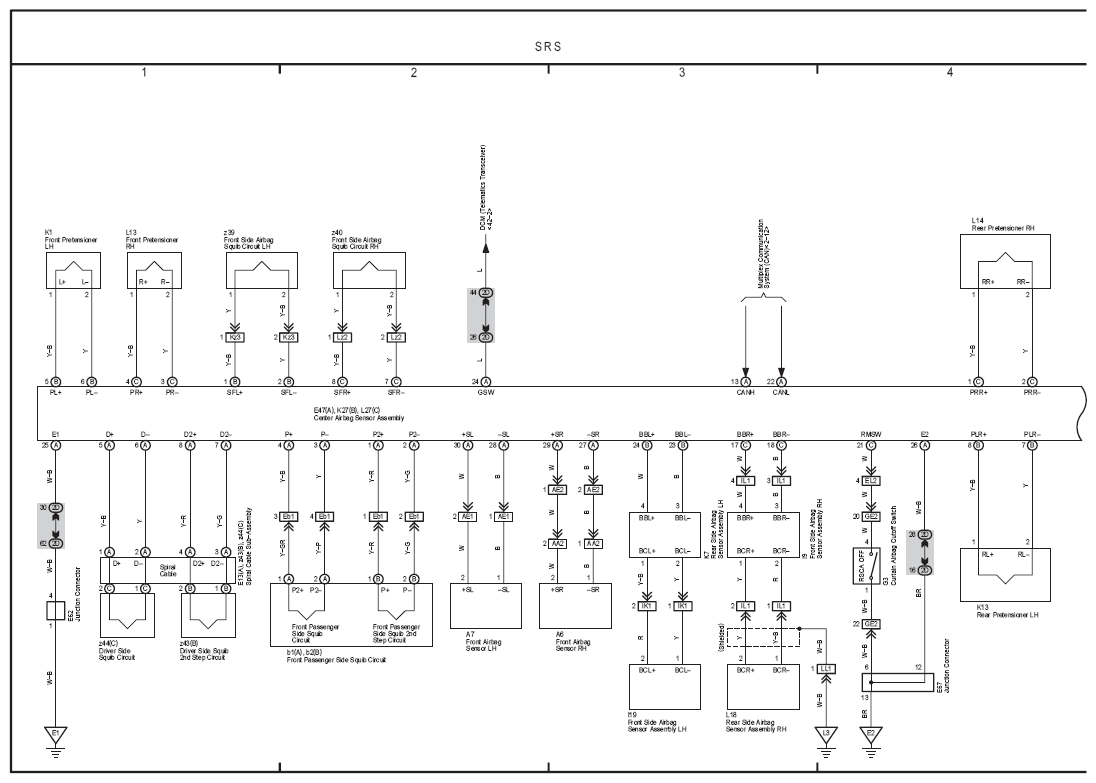

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G07555945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

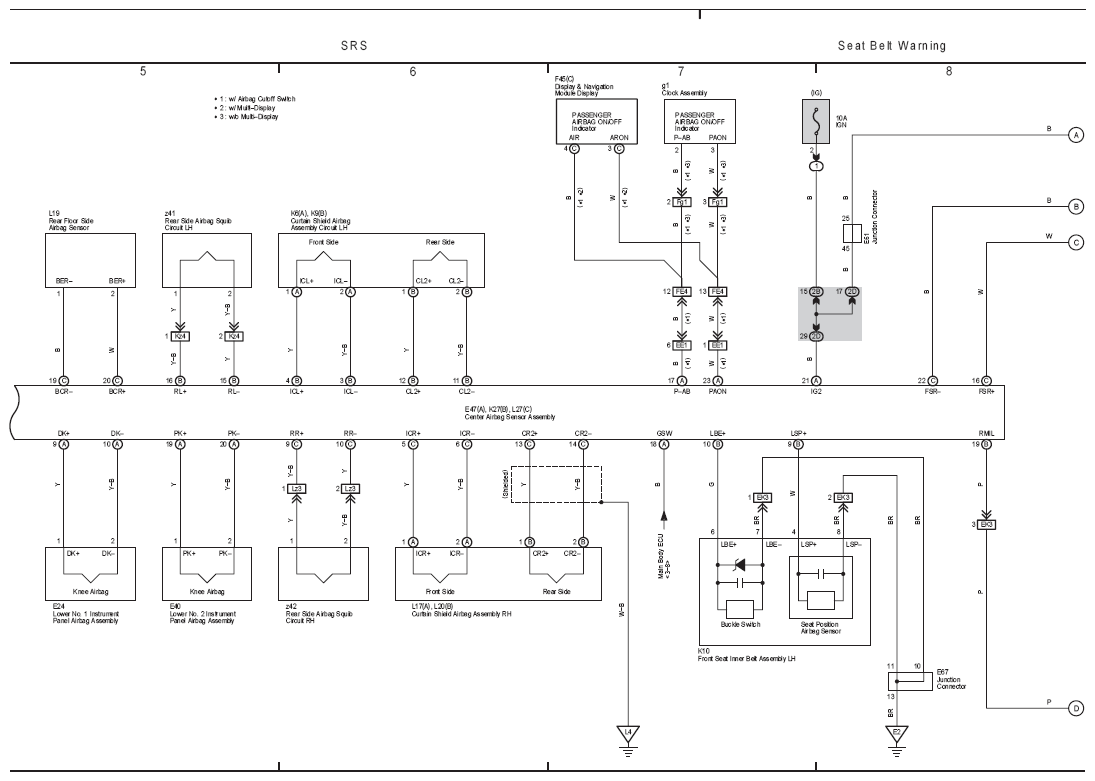

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
G07555946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

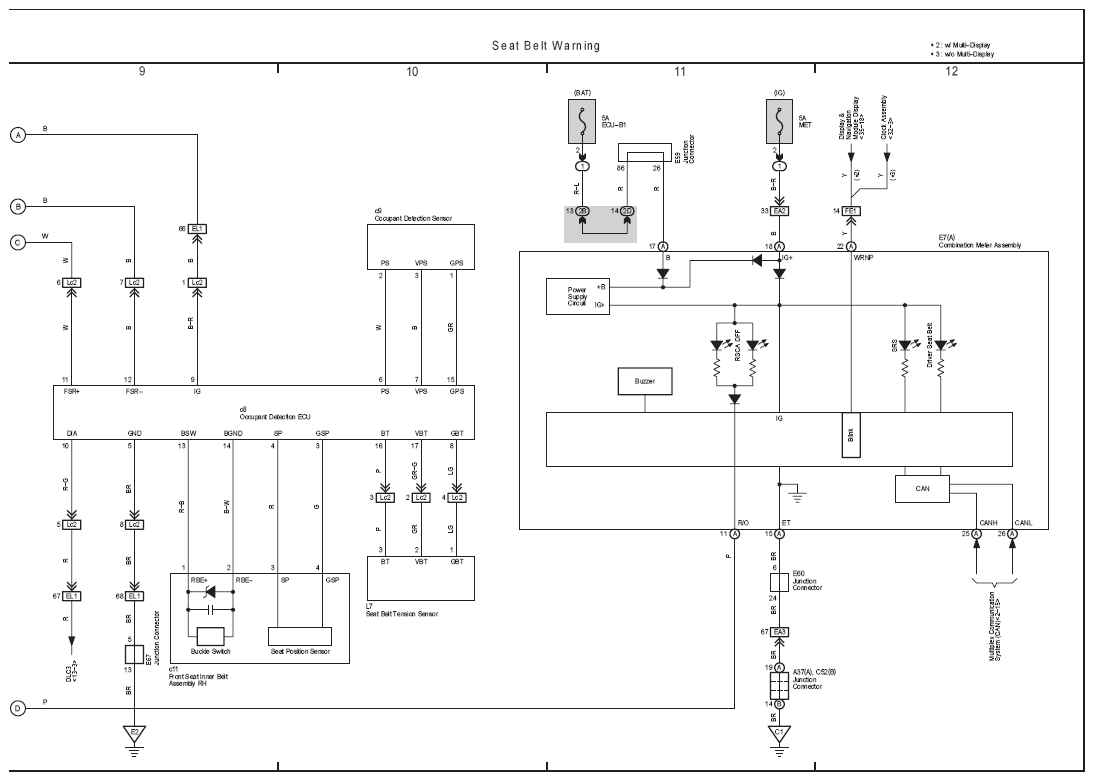

Fig 3: Seat Belt Warning Electrical Wiring Diagram
G07555947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
