Toyota
>>
2010
>>
Land Cruiser
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
15 Back-Up Light, Stop Light
15 Back-Up Light, Stop Light

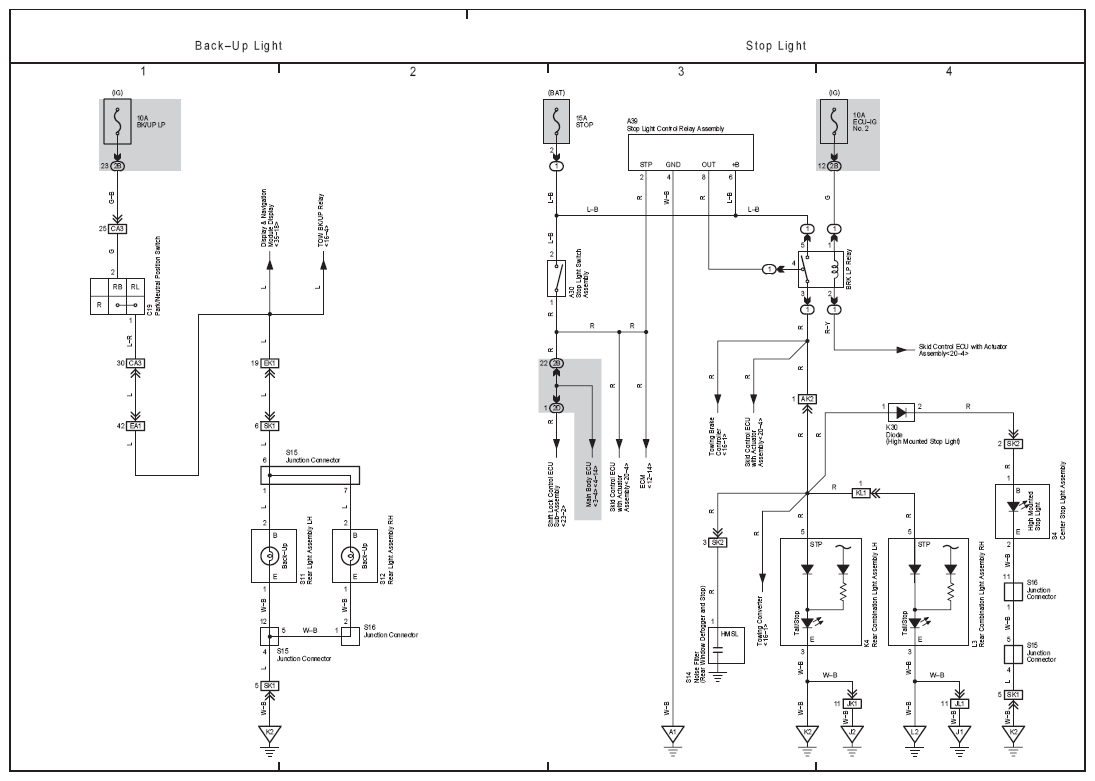

Fig 1: Back-up Light And Stop Light Electrical Wiring Diagram
