13 Data Link Connector 3

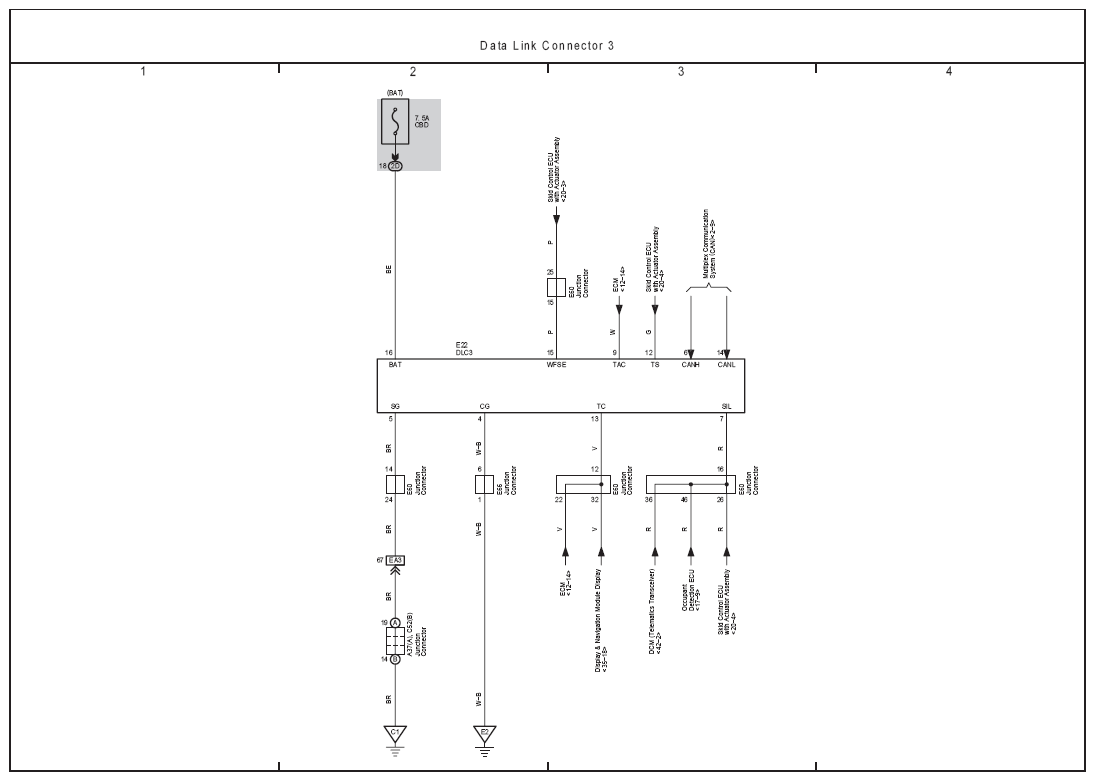

Fig 1: Data Link Connector 3 Electrical Wiring Diagram

G07555941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
