11 Ignition

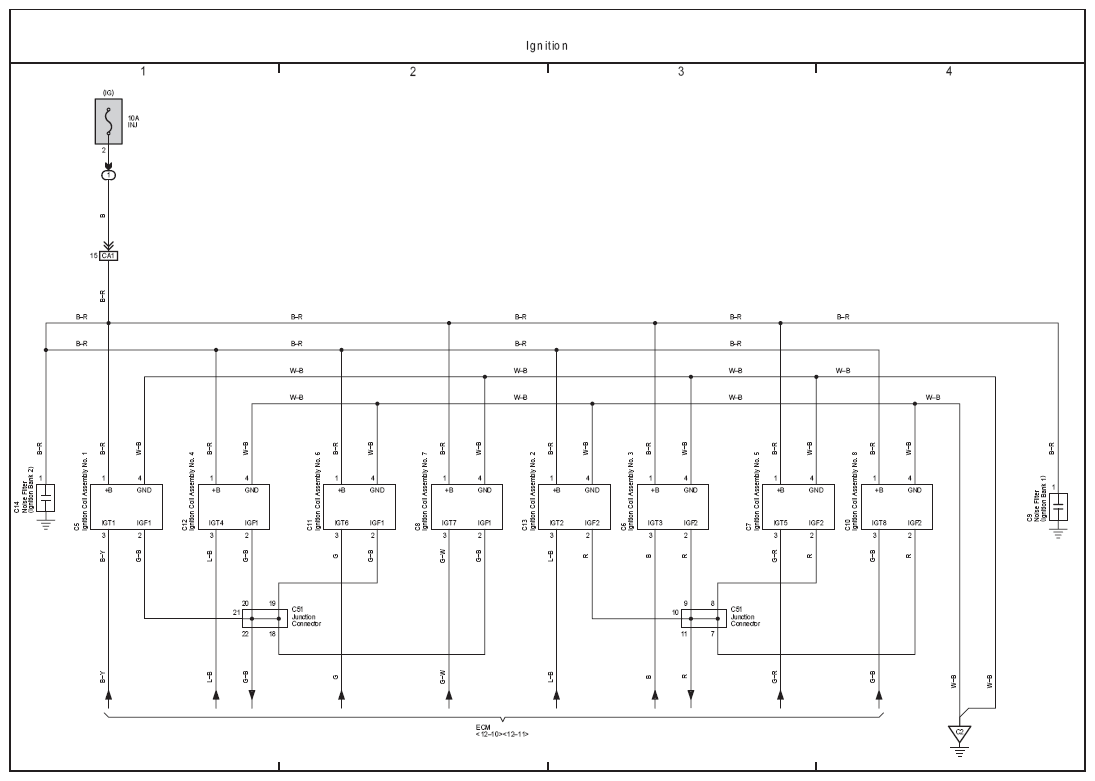

Fig 1: Ignition Electrical Wiring Diagram

G07555933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
