Parts Location: Illustration

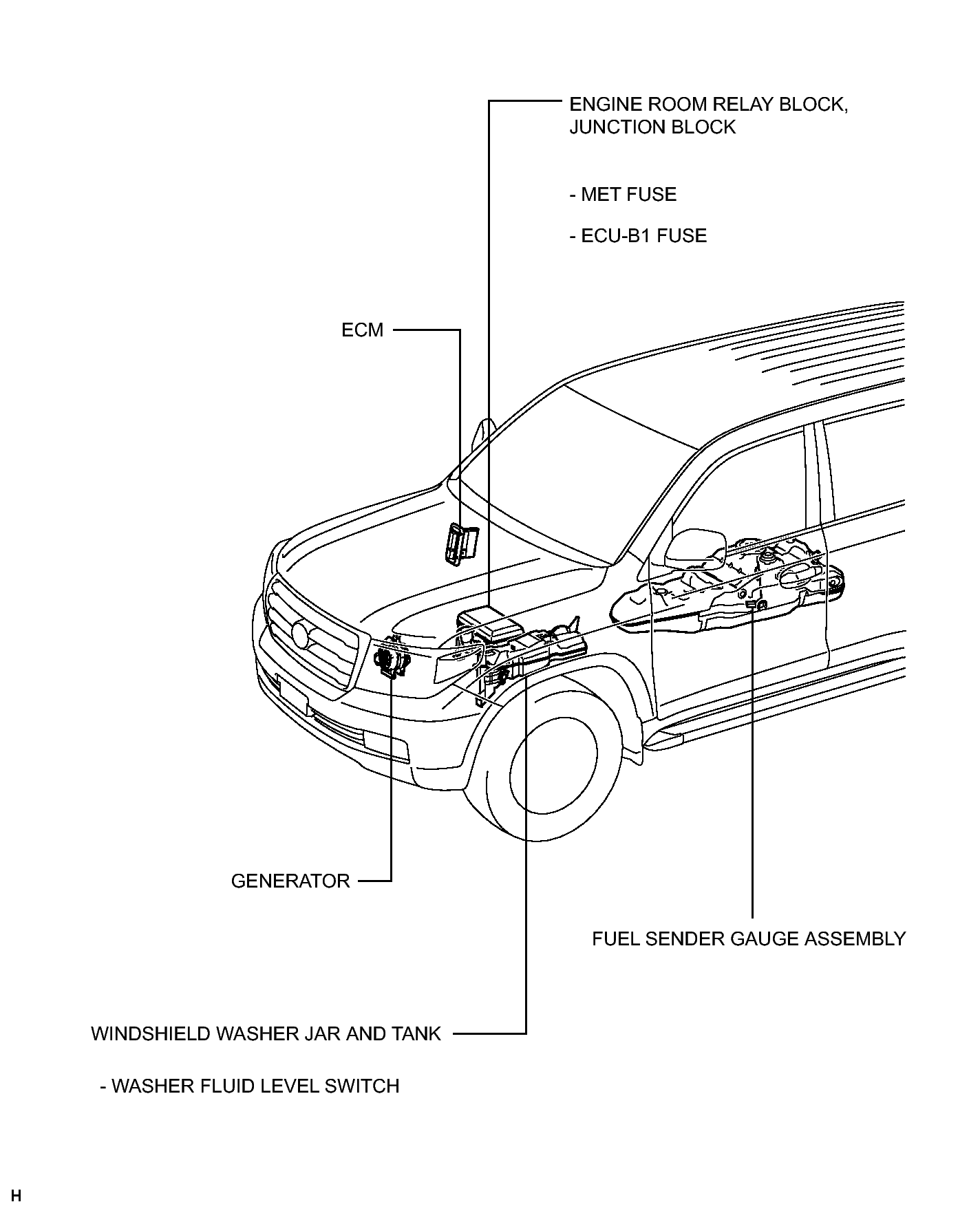

Fig 1: Identifying Meter / Gauge System Components (1 Of 6)
GTY246790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

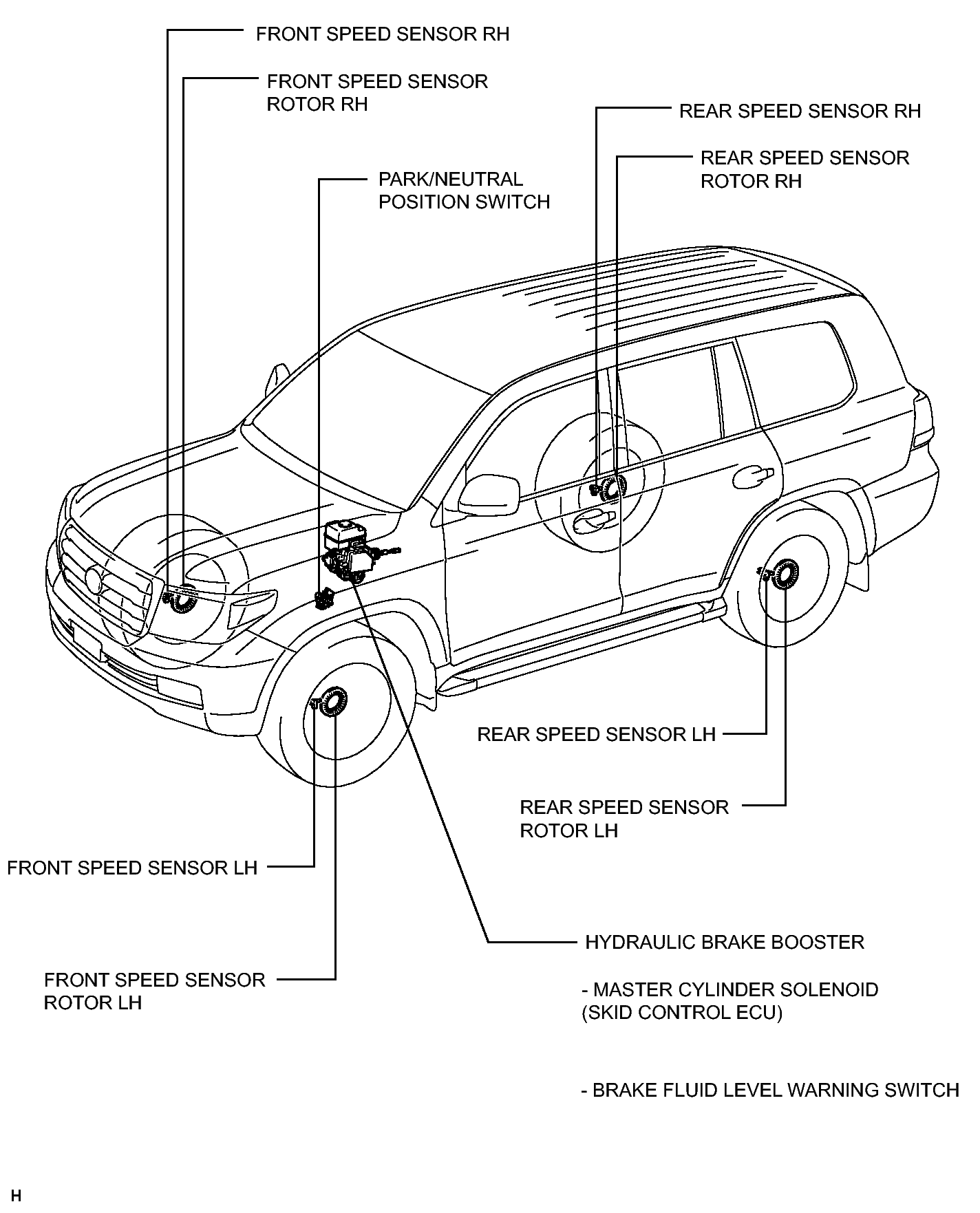

Fig 1: Identifying Meter / Gauge System Components (2 Of 6)
GTY246868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

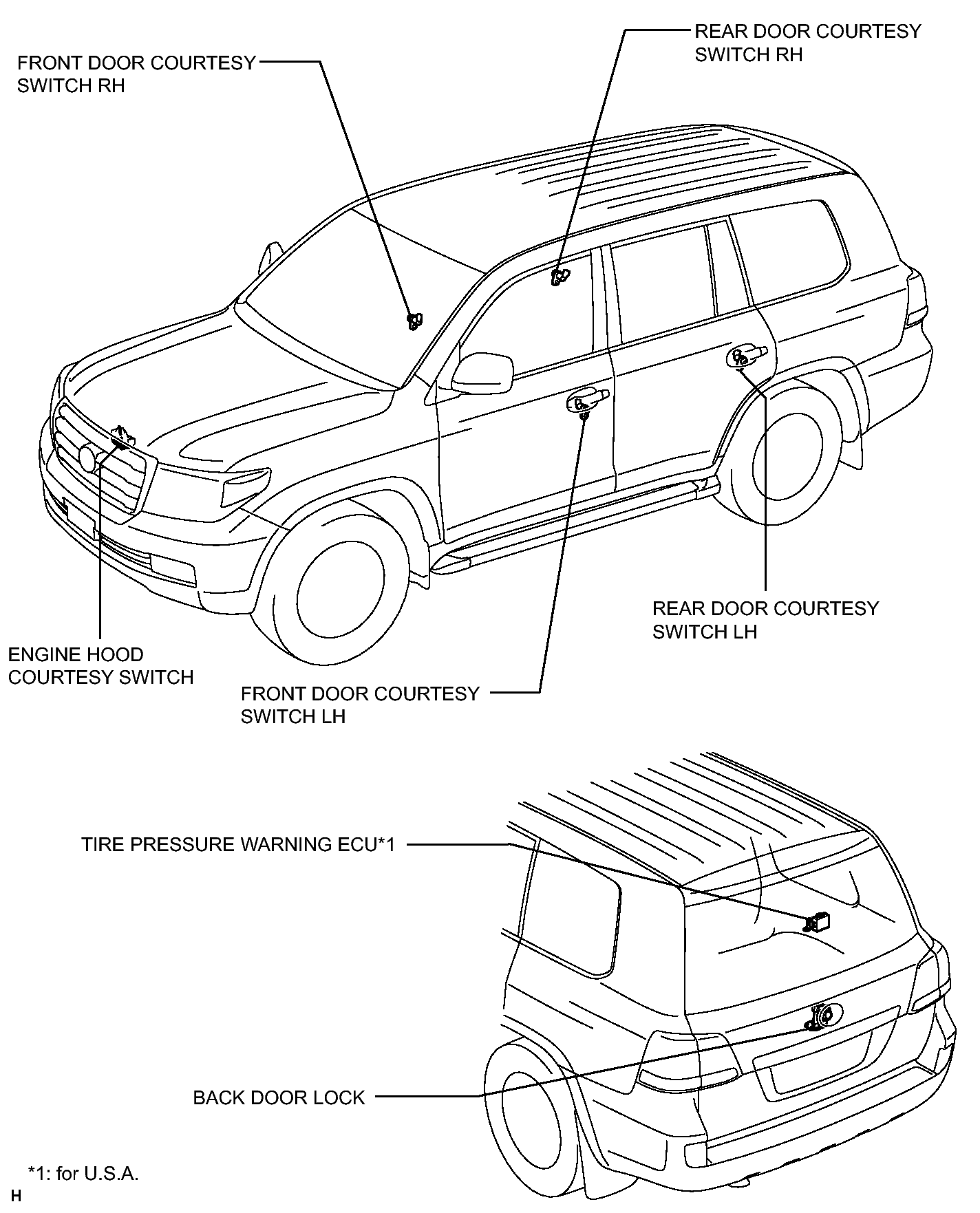

Fig 1: Identifying Meter / Gauge System Components (3 Of 6)
GTY246791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

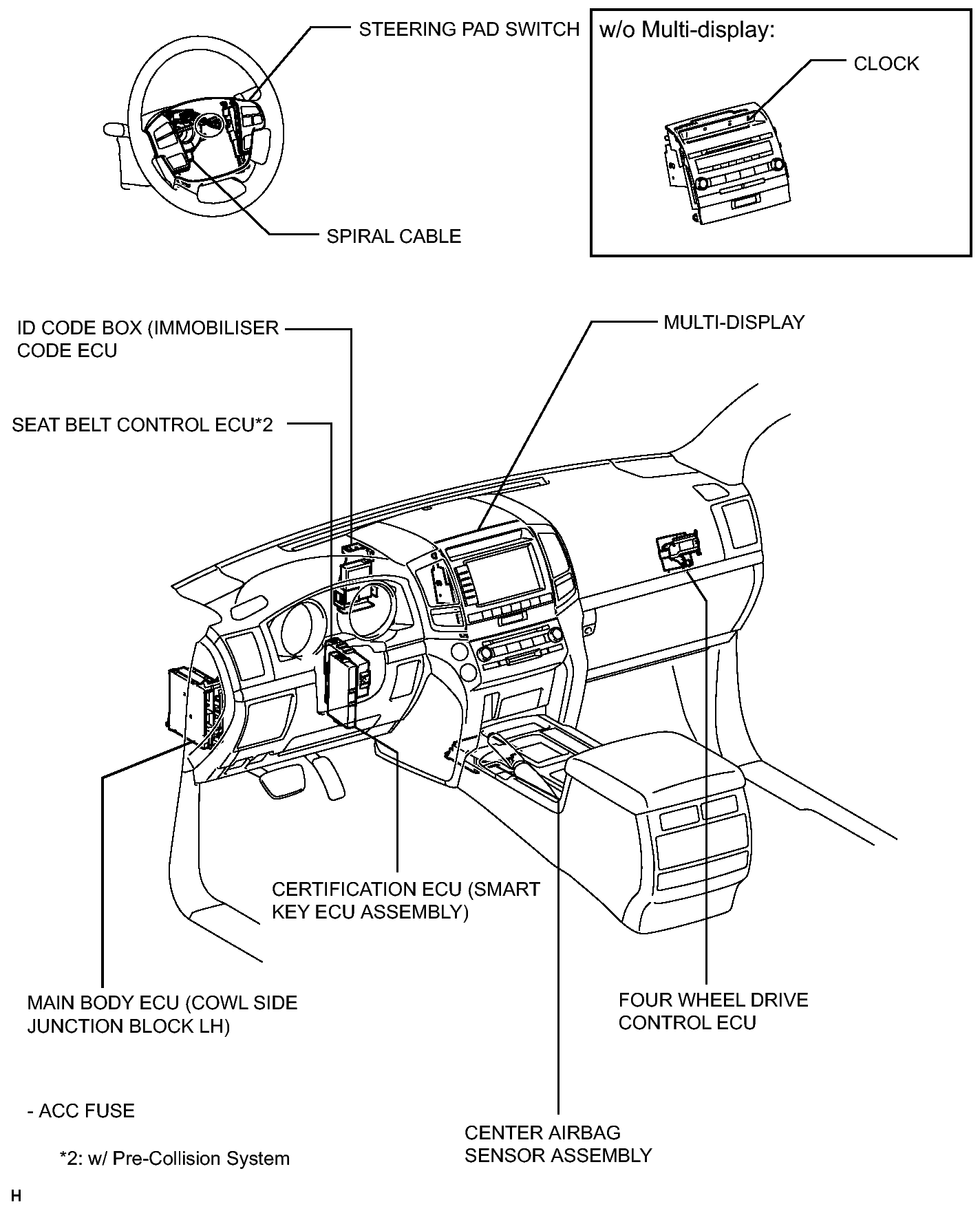

Fig 1: Identifying Meter / Gauge System Components (4 Of 6)
GTY246796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

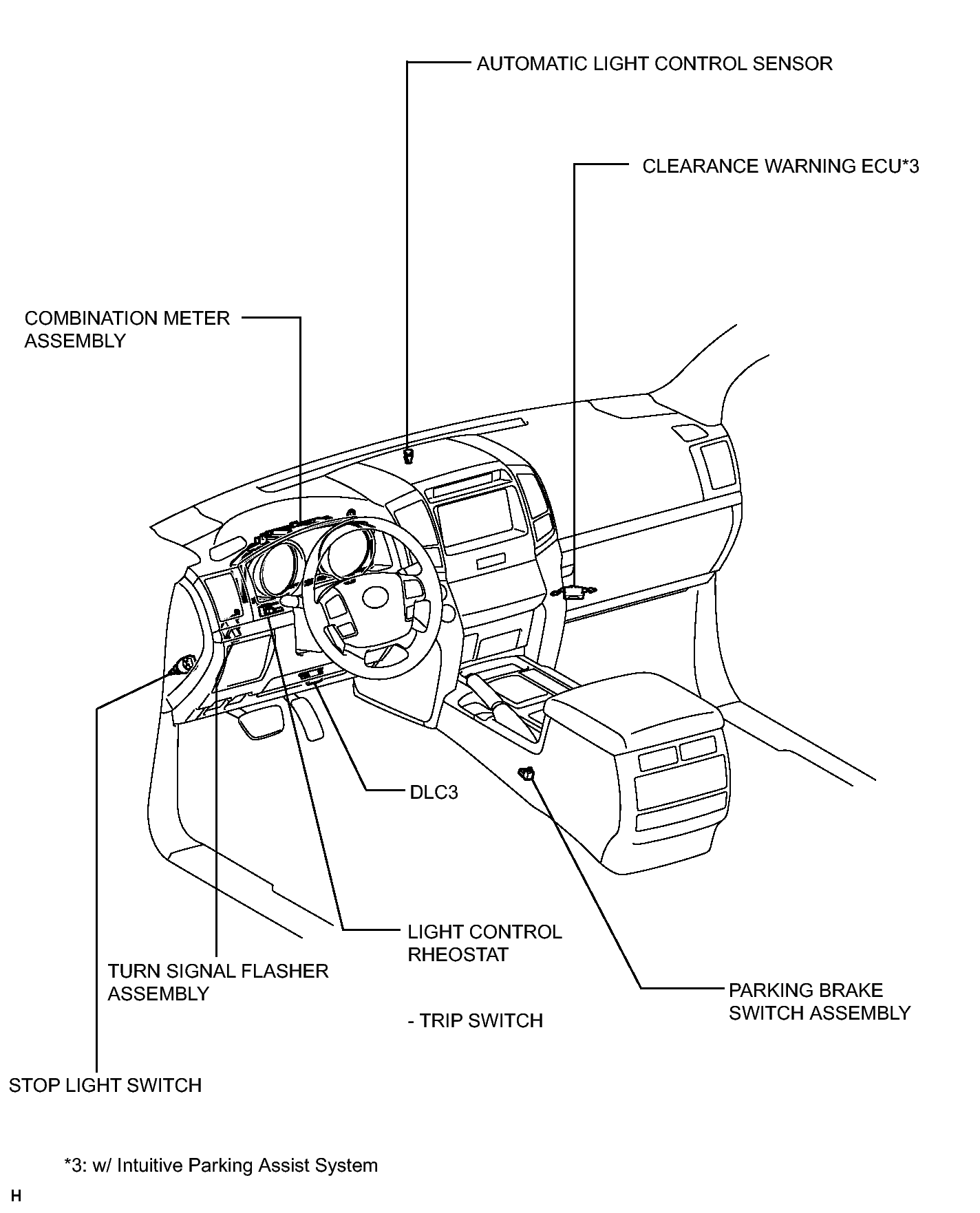

Fig 1: Identifying Meter / Gauge System Components (5 Of 6)
GTY246797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

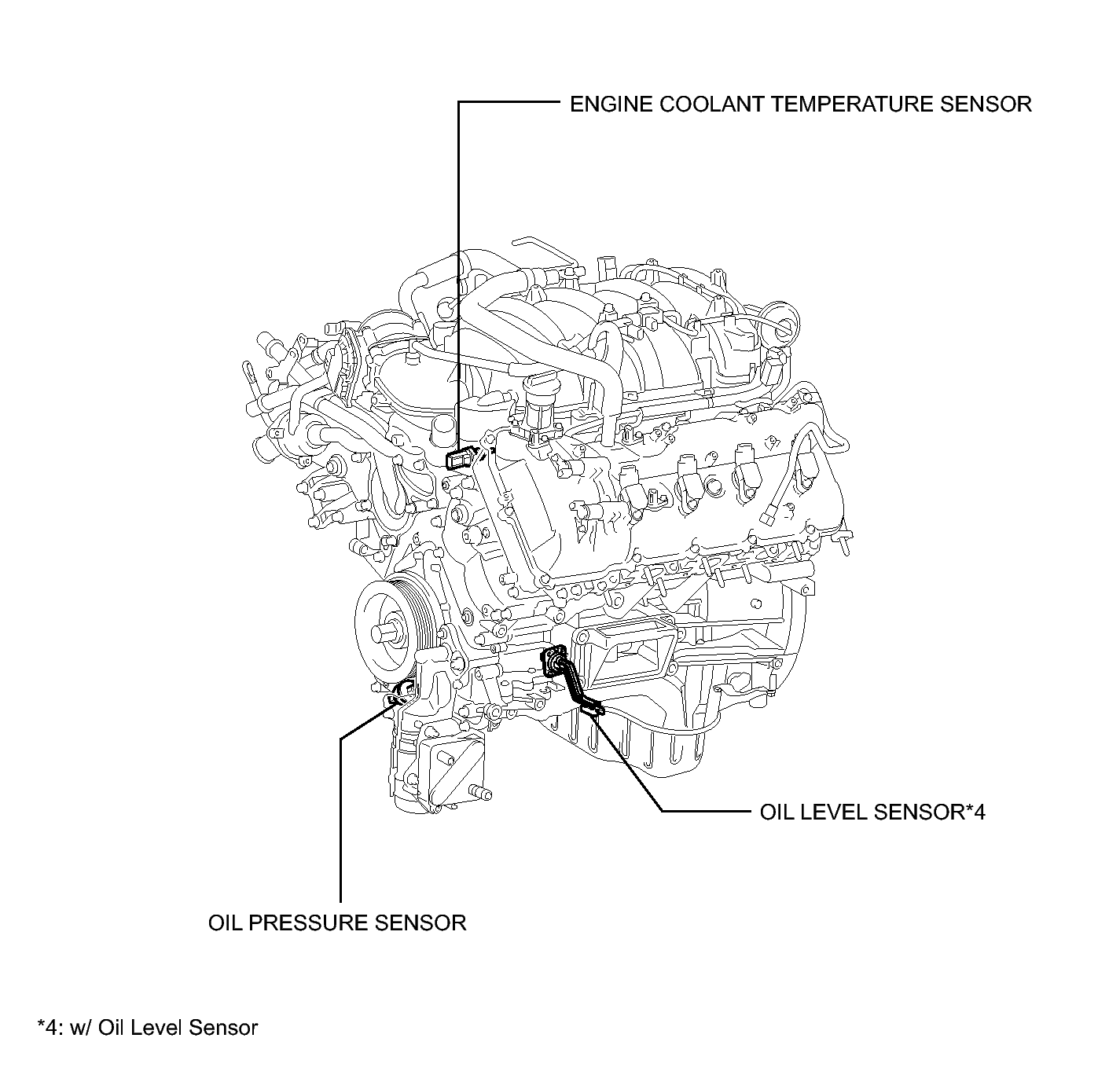

Fig 1: Identifying Meter / Gauge System Components (6 Of 6)
GTY219152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
