Meter Illumination is Always Dark: Wiring Diagram

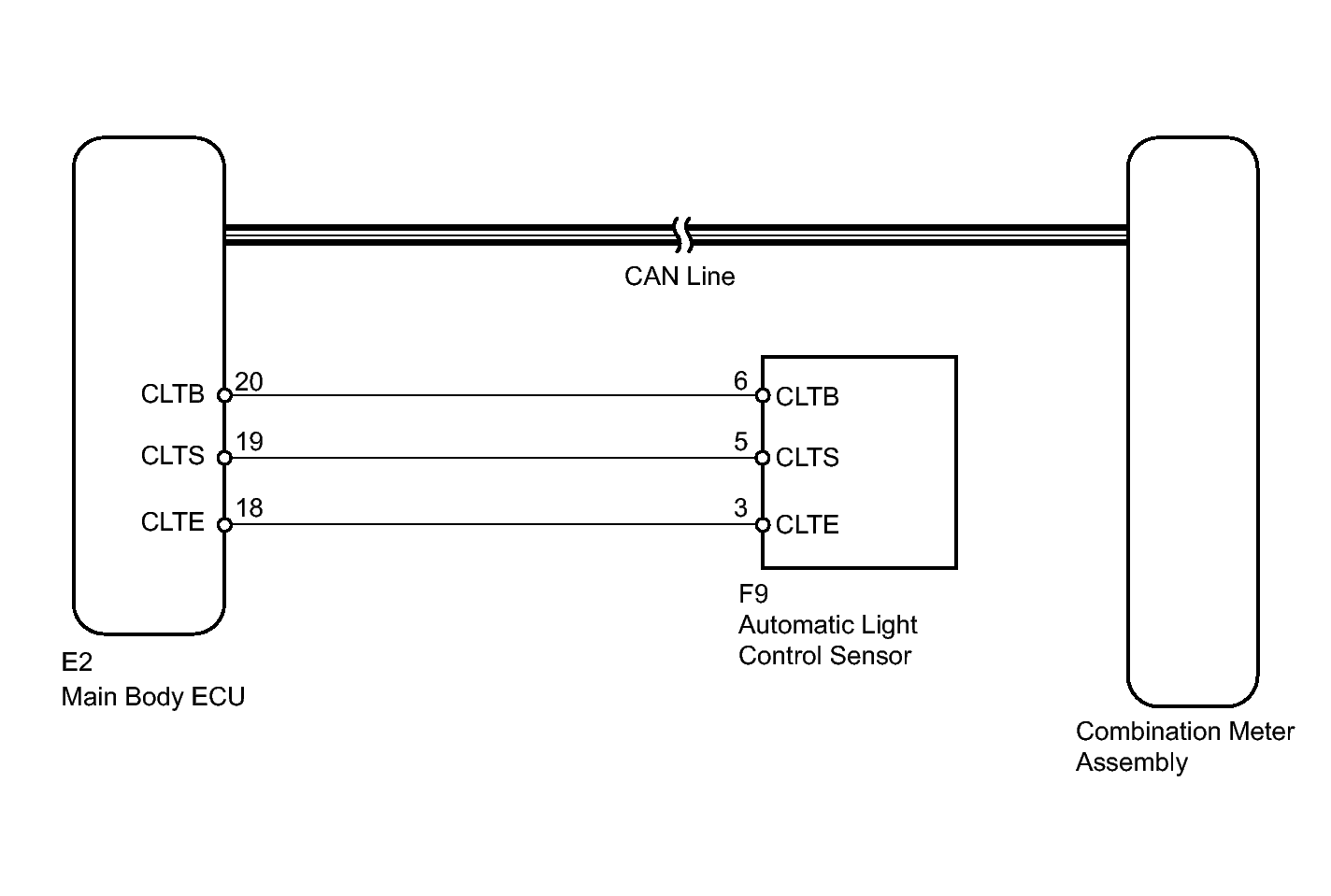

Fig 1: Combination Meter Assembly And Main Body ECU - Wiring Diagram

GTY136607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
