Turn Signal and Hazard Warning Light (Except TMC Made)

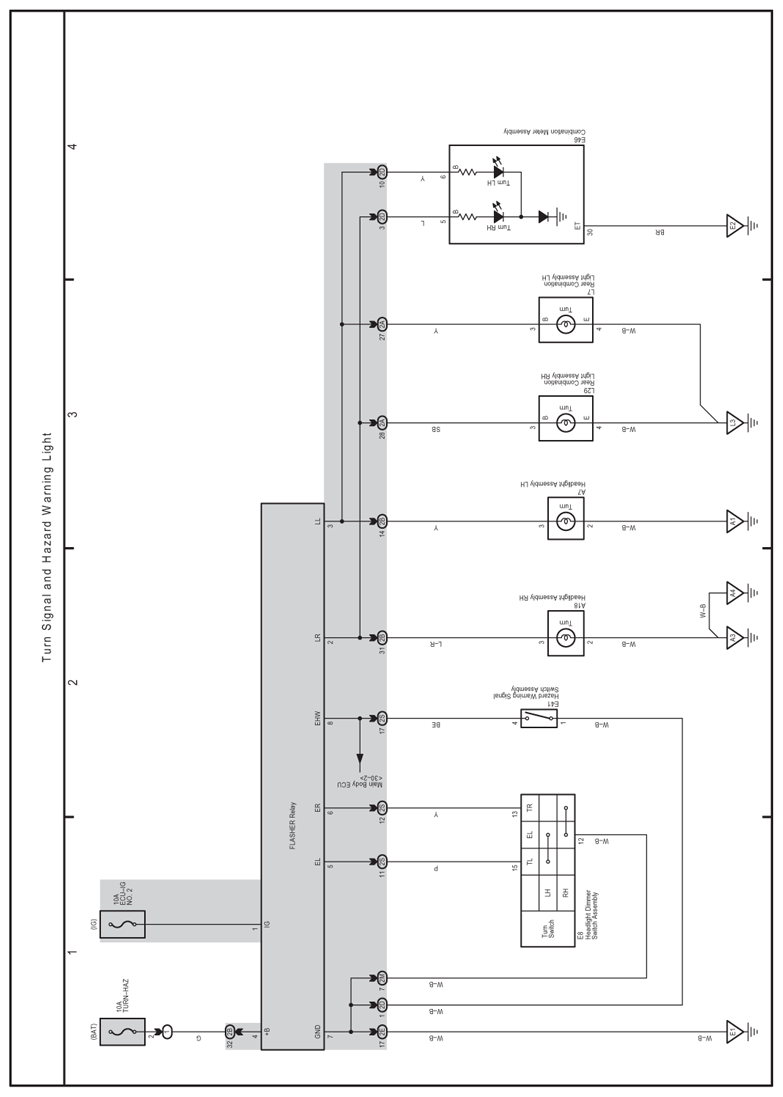

Fig 1: Turn Signal And Hazard Warning Light - Electrical Wiring Diagram - Except TMC Made

G07618231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
