Tire Pressure Warning System (TMC Made)

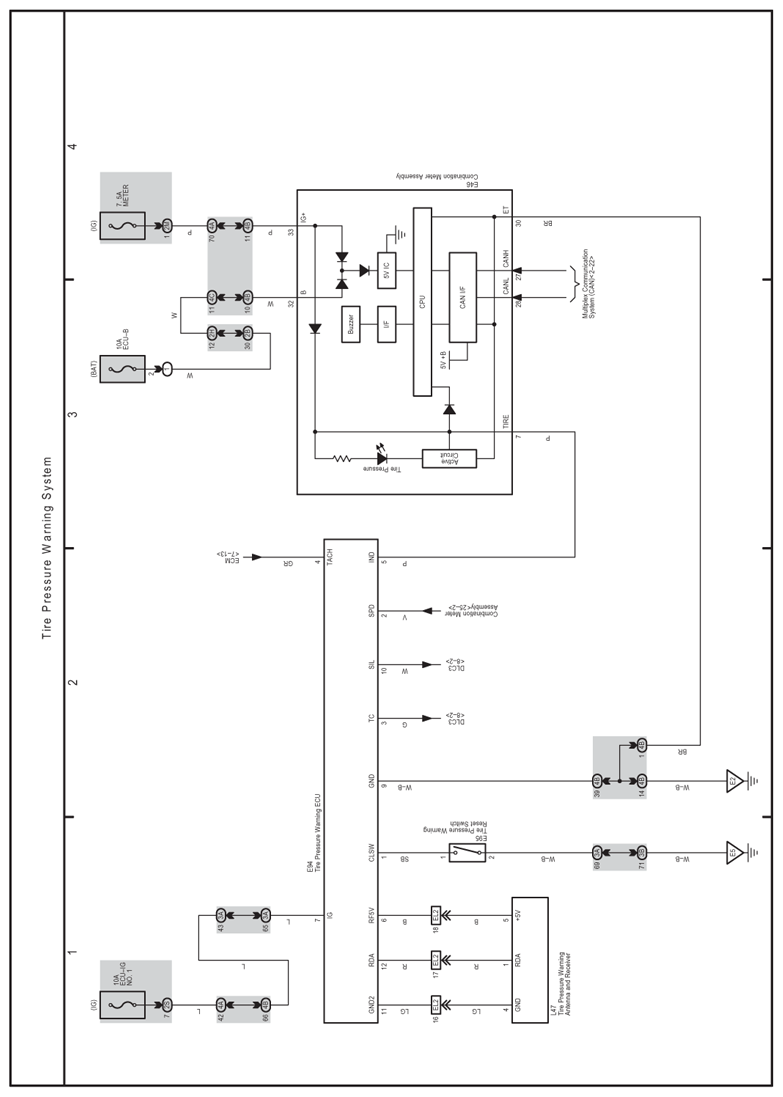

Fig 1: Tire Pressure Warning System - Electrical Wiring Diagram - TMC Made

G07618189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
