OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Theft Deterrent (Except TMC Made)
Theft Deterrent (Except TMC Made)

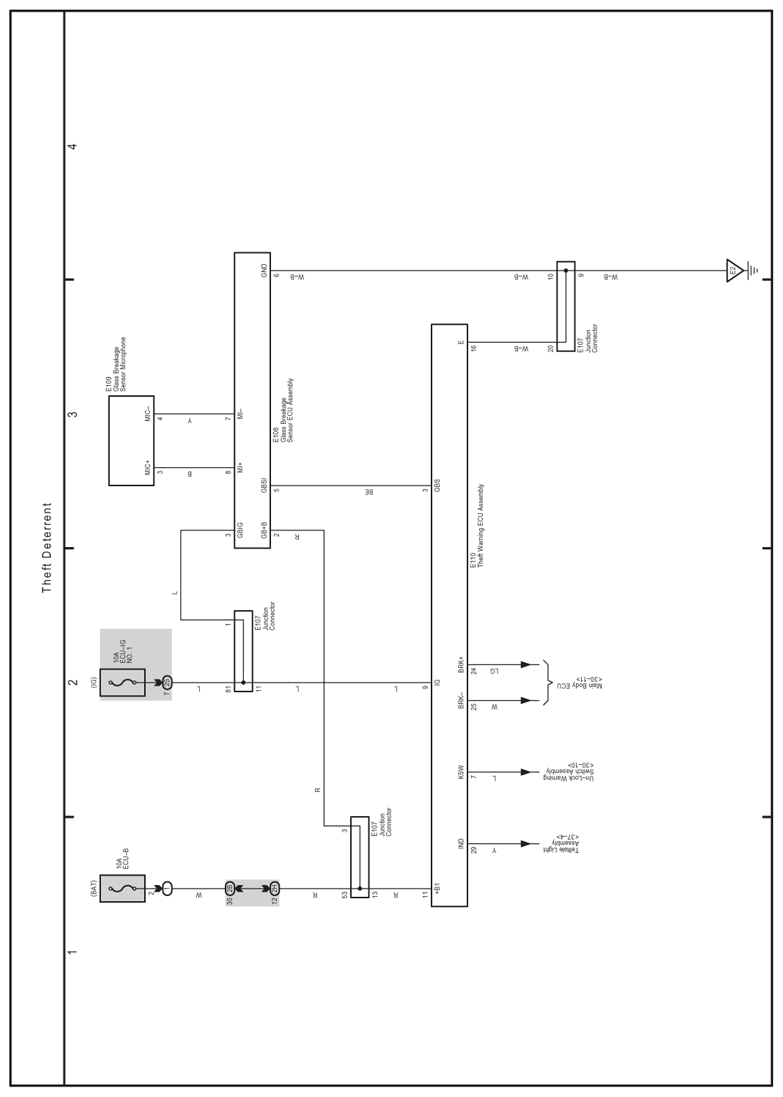

Fig 1: Theft Deterrent Electrical - Wiring Diagram - Except TMC Made
