Starting (w/o Smart Key System) (TMC Made)

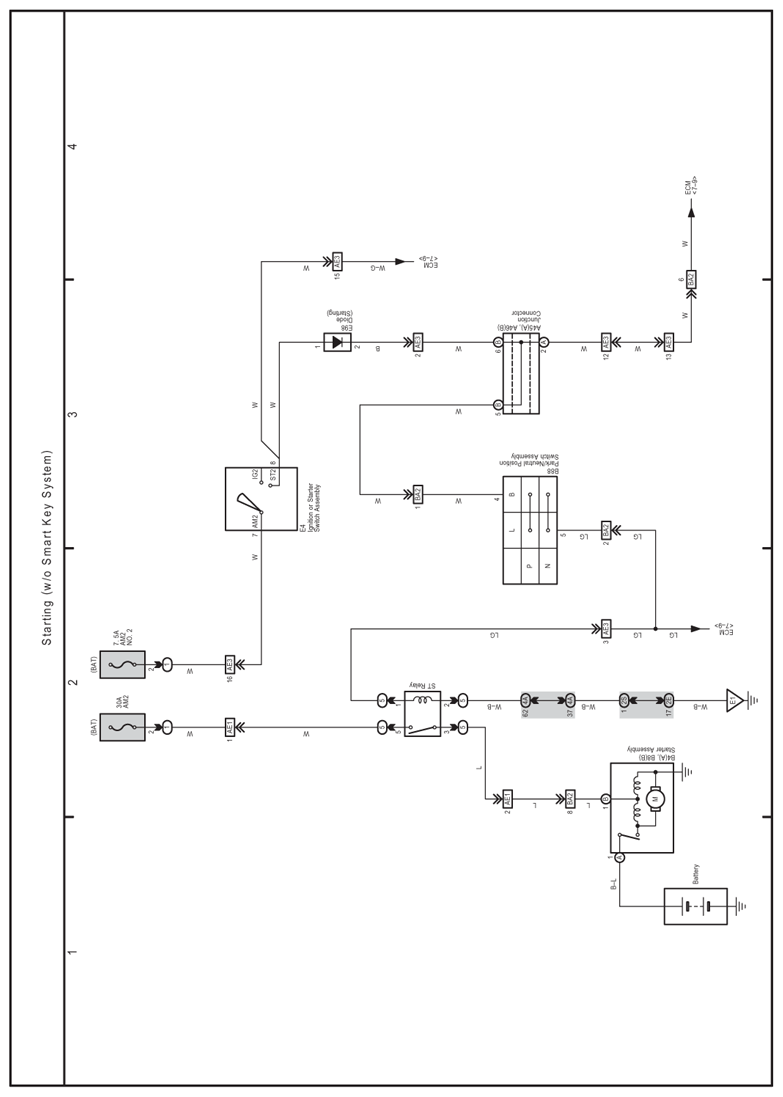

Fig 1: Starting (W/O Smart Key System) - Electrical Wiring Diagram - TMC Made

G07618167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
