Smart Key System (TMC Made)

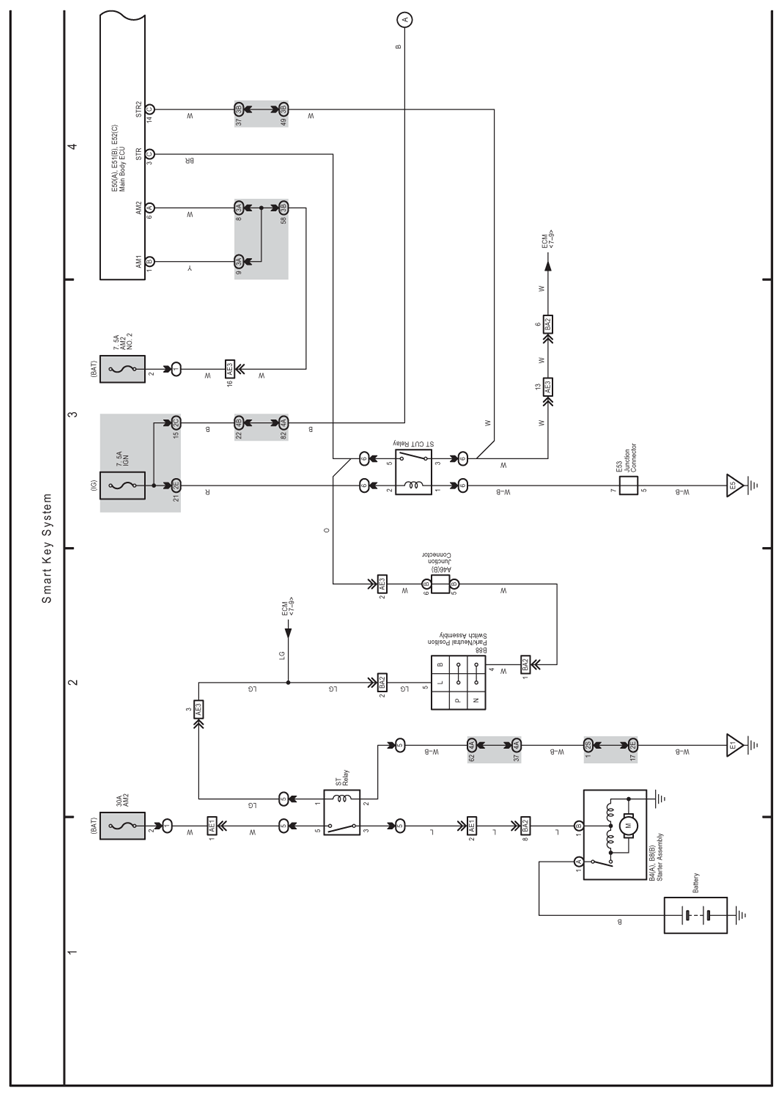

Fig 1: Smart Key System - Electrical Wiring Diagram - TMC Made (1 Of 6)
G07618161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

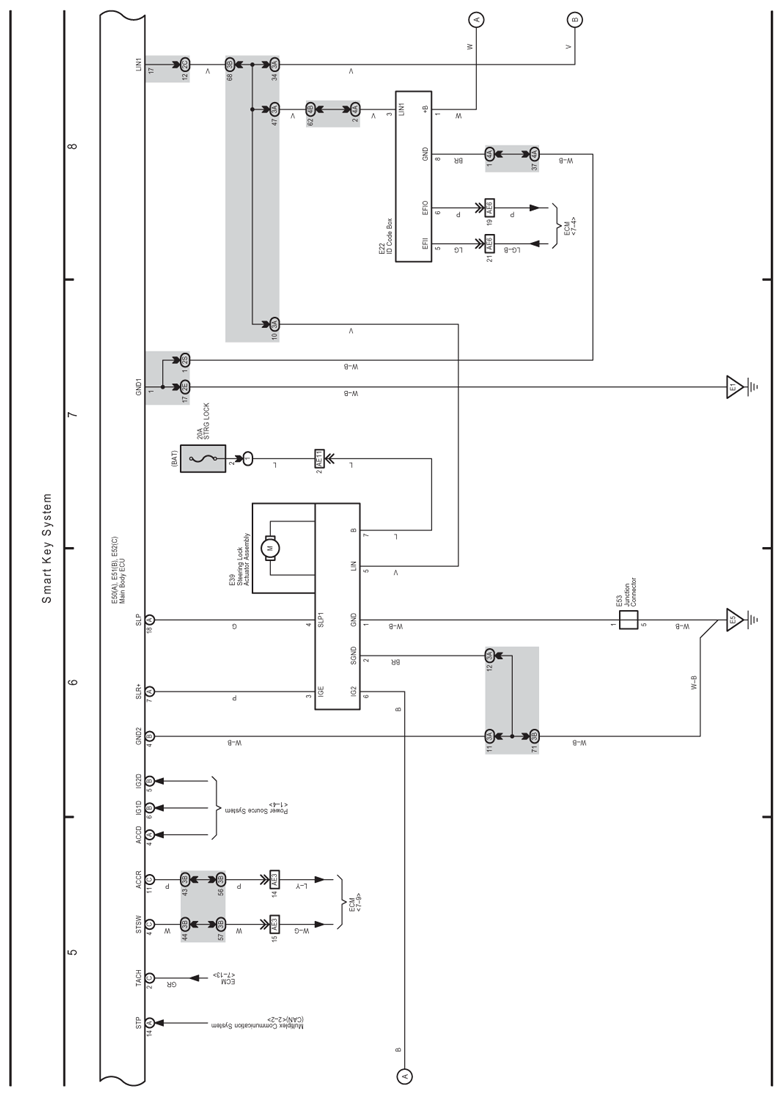

Fig 2: Smart Key System - Electrical Wiring Diagram - TMC Made (2 Of 6)
G07618162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

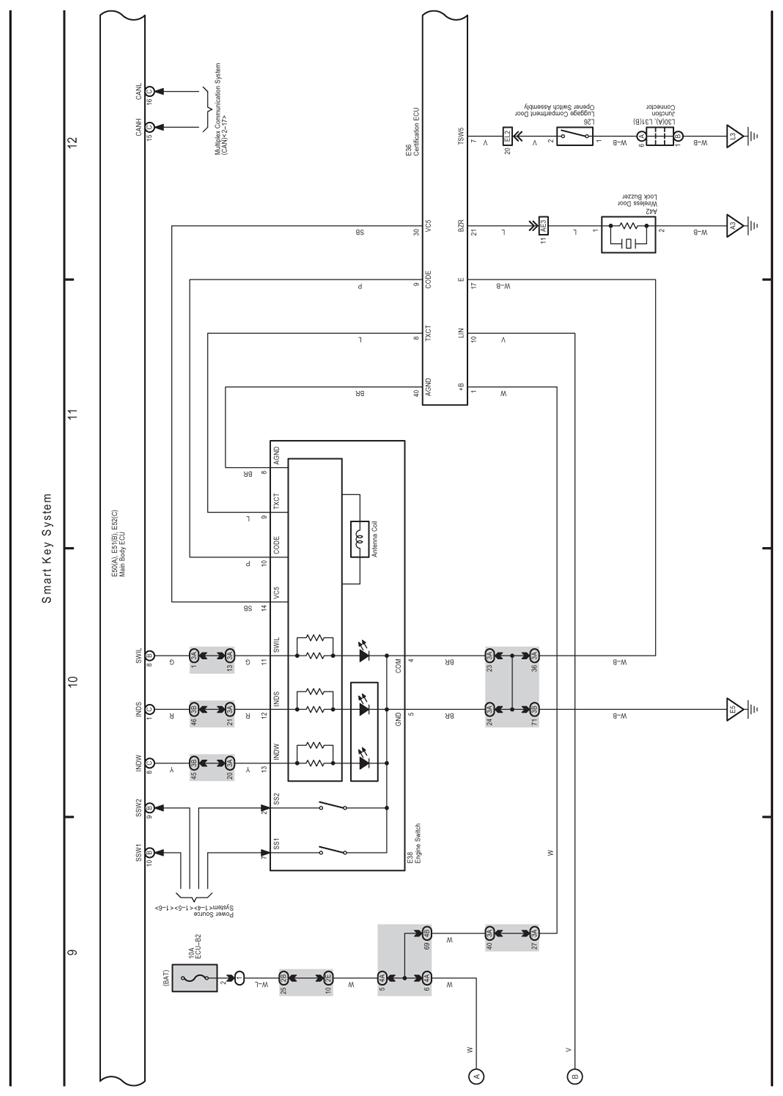

Fig 3: Smart Key System - Electrical Wiring Diagram - TMC Made (3 Of 6)
G07618163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

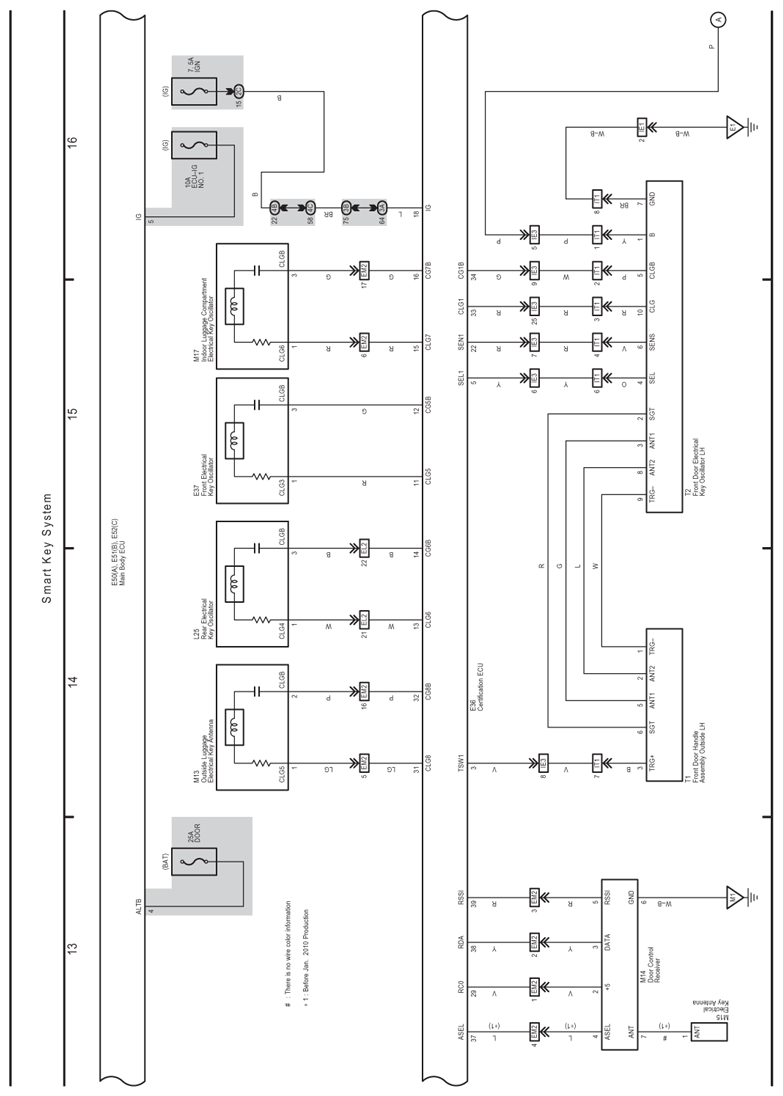

Fig 4: Smart Key System - Electrical Wiring Diagram - TMC Made (4 Of 6)
G07618164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

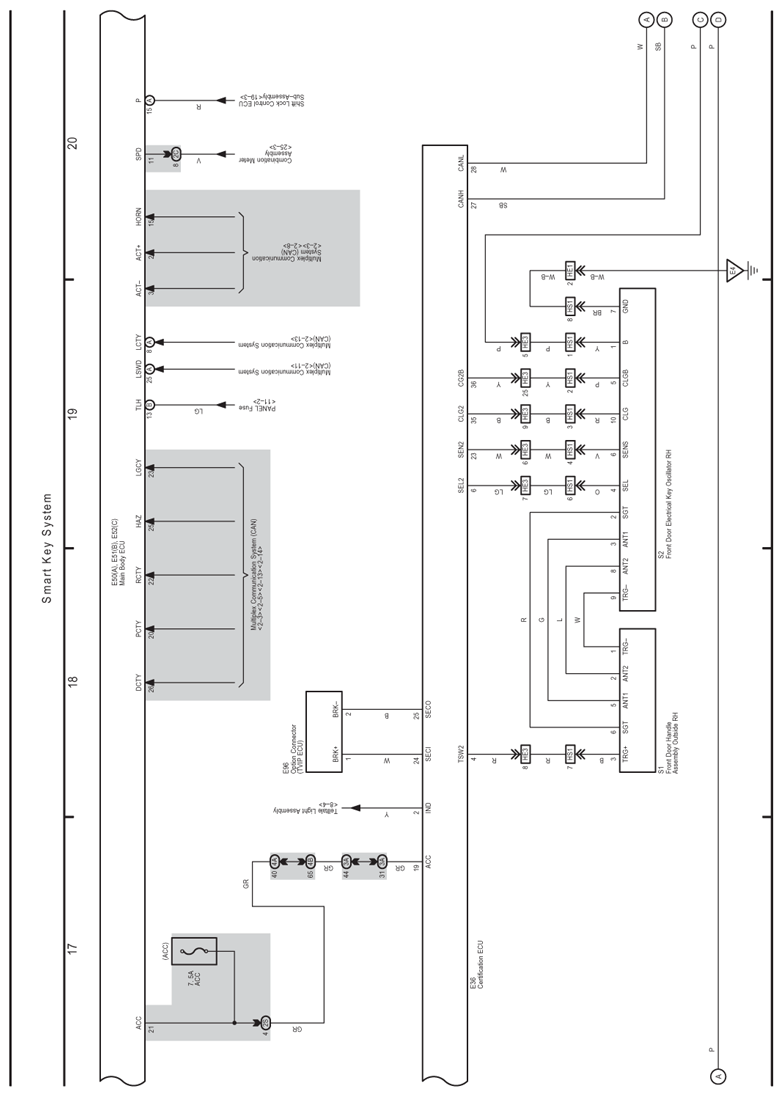

Fig 5: Smart Key System - Electrical Wiring Diagram - TMC Made (5 Of 6)
G07618165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

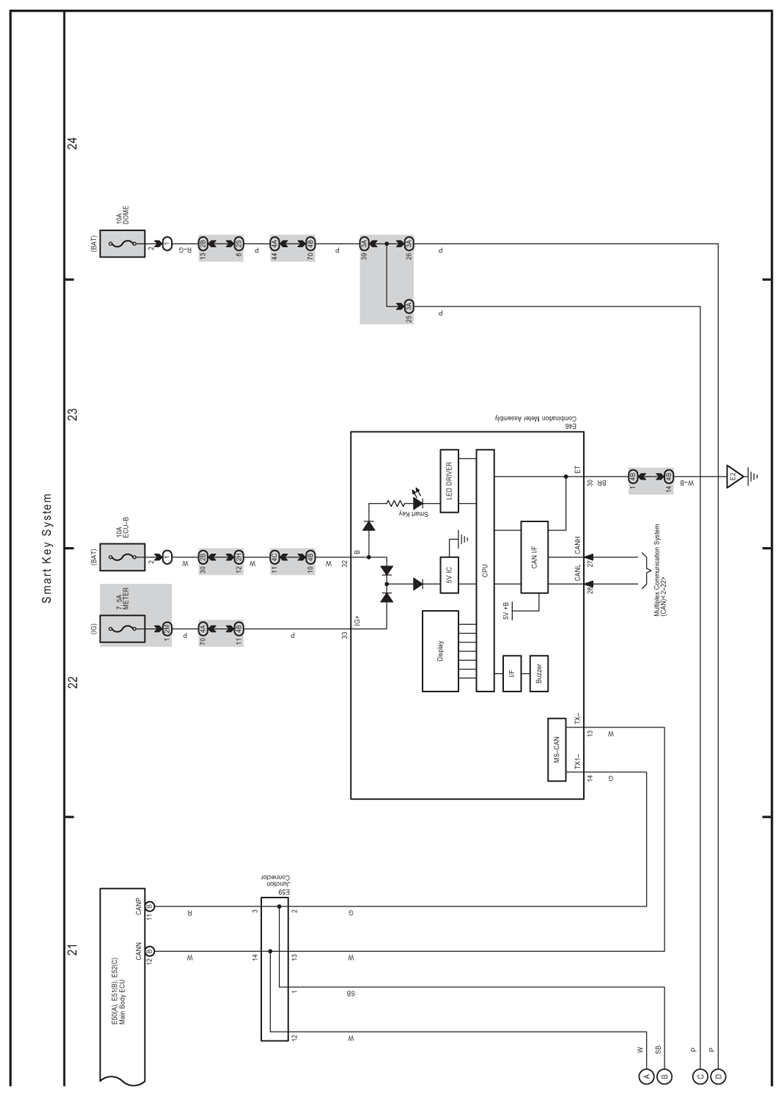

Fig 6: Smart Key System - Electrical Wiring Diagram - TMC Made (6 Of 6)
G07618166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
