Smart Key System (Except TMC Made)

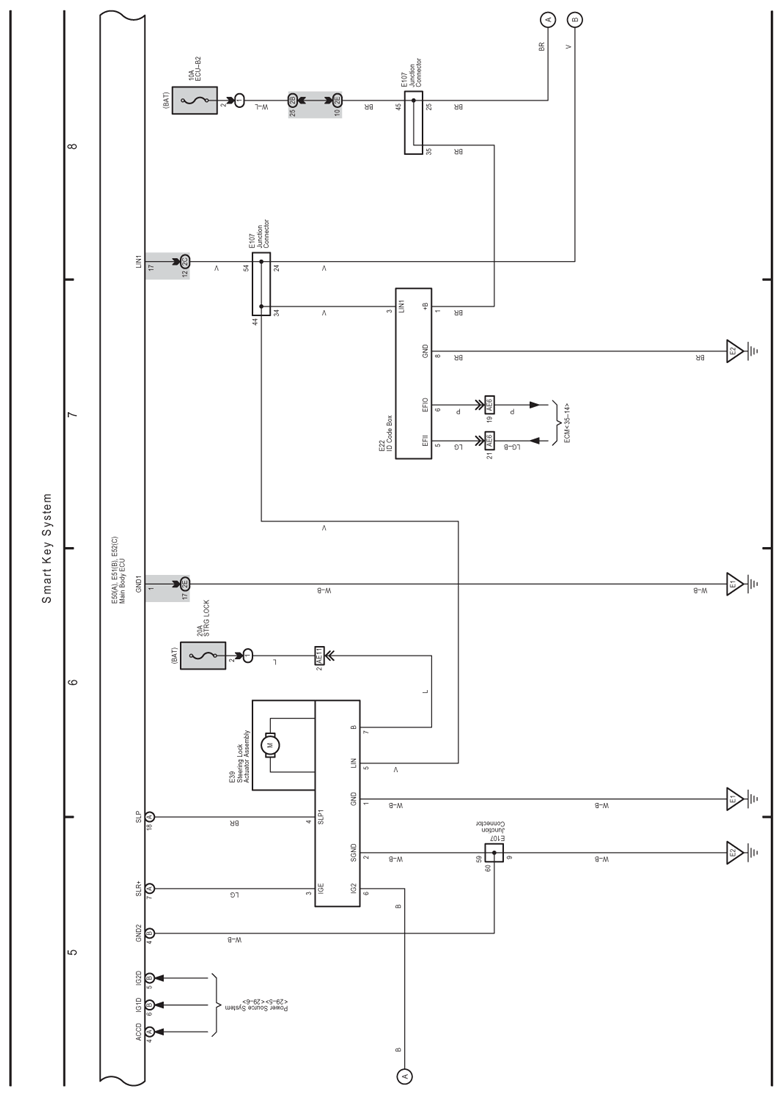

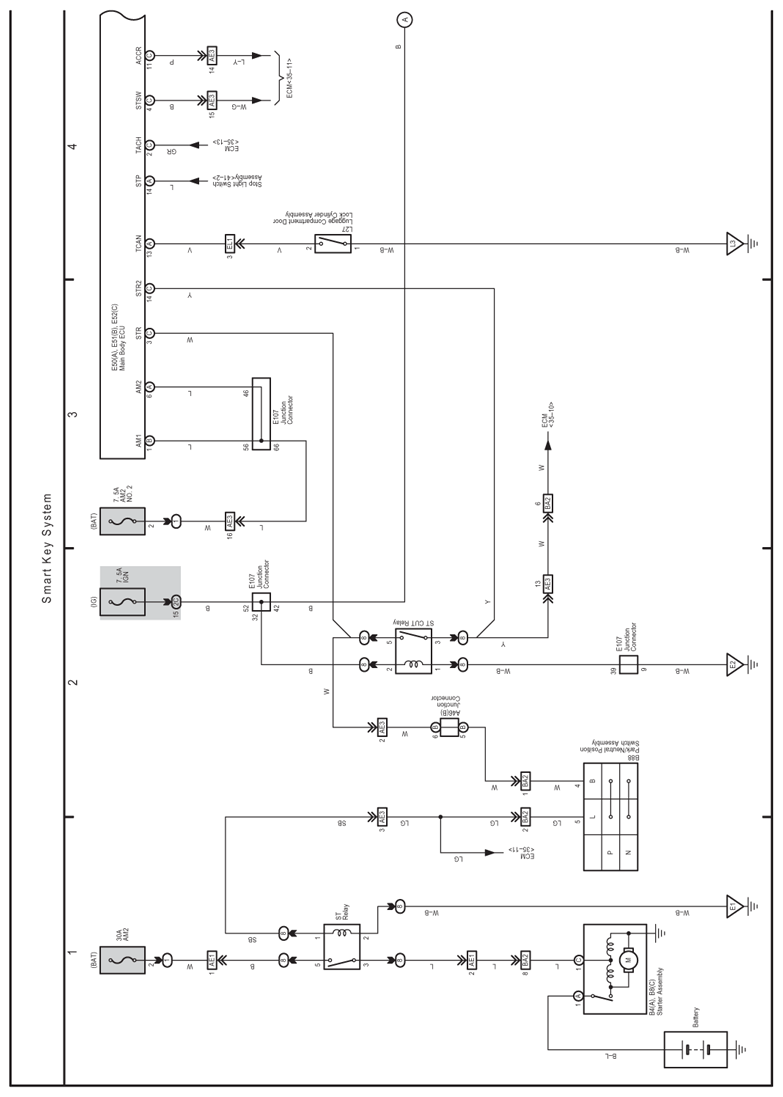

Fig 1: Smart Key System - Electrical Wiring Diagram - Except TMC Made (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

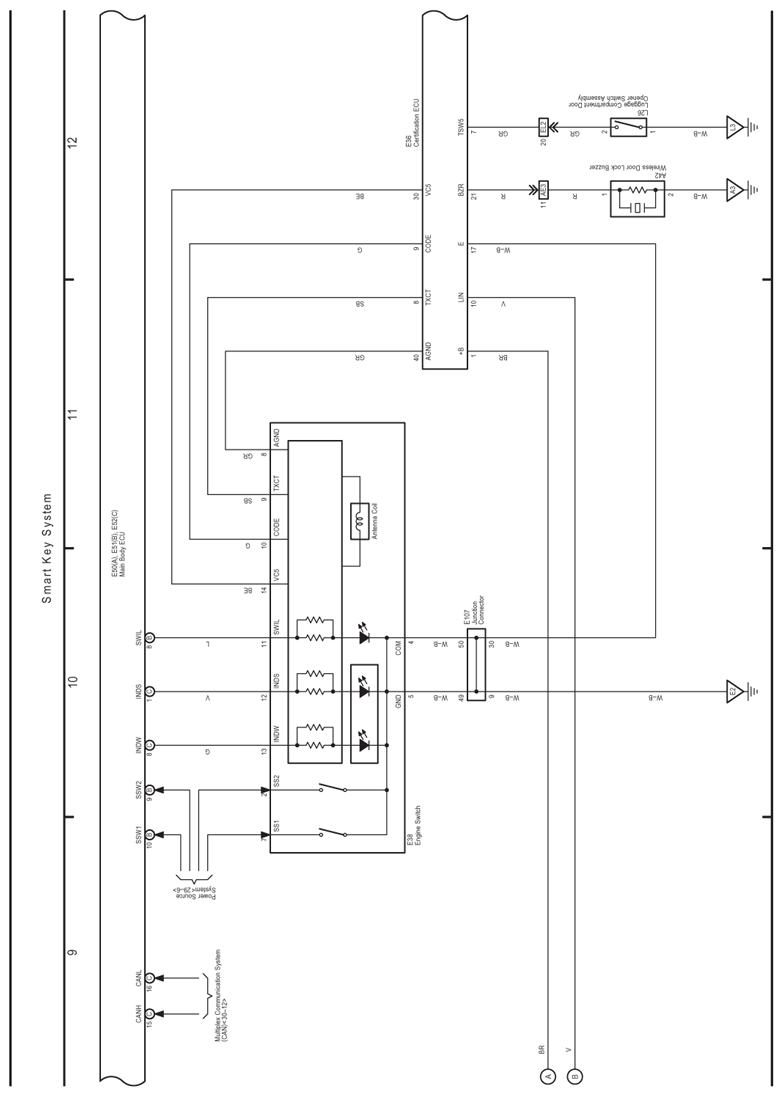

Fig 2: Smart Key System - Electrical Wiring Diagram - Except TMC Made (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Smart Key System - Electrical Wiring Diagram - Except TMC Made (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

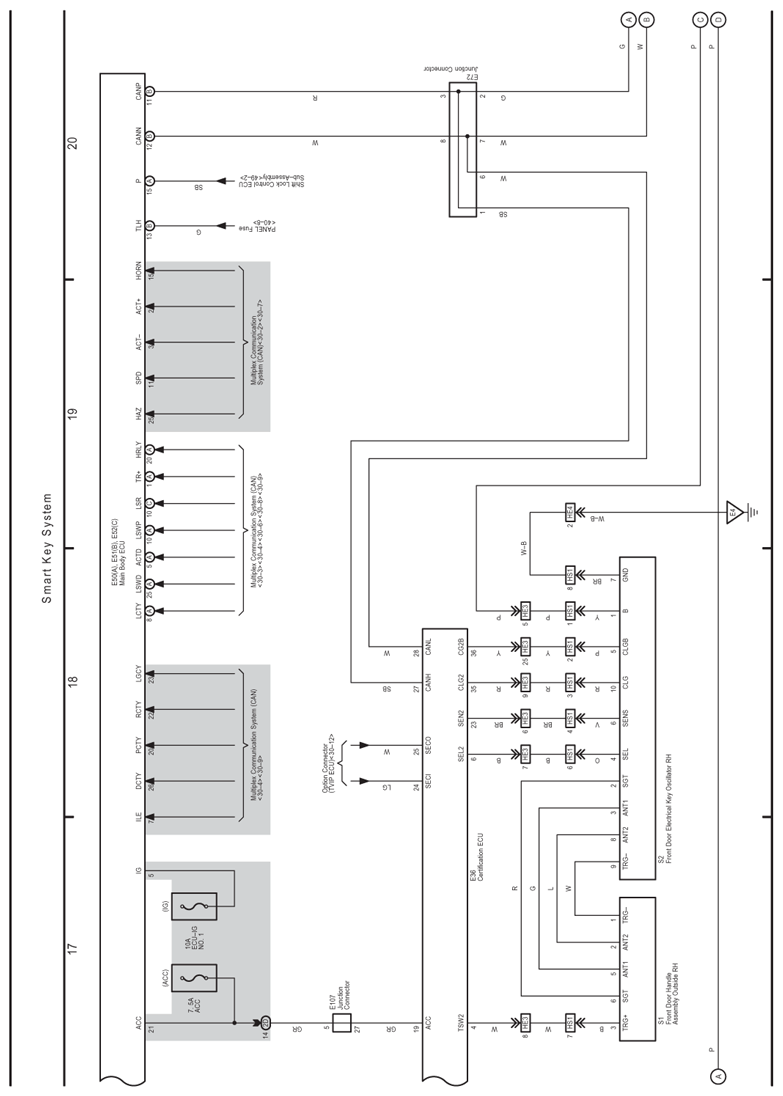

Fig 4: Smart Key System - Electrical Wiring Diagram - Except TMC Made (4 Of 6)

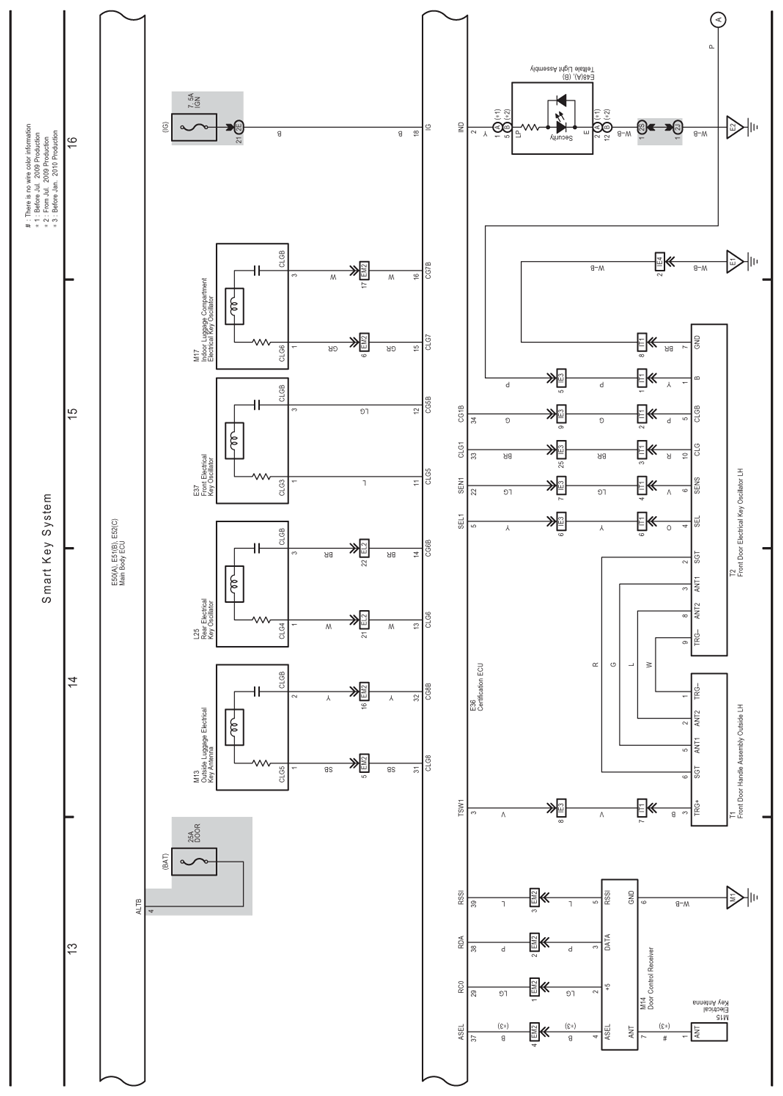

Fig 5: Smart Key System - Electrical Wiring Diagram - Except TMC Made (5 Of 6)

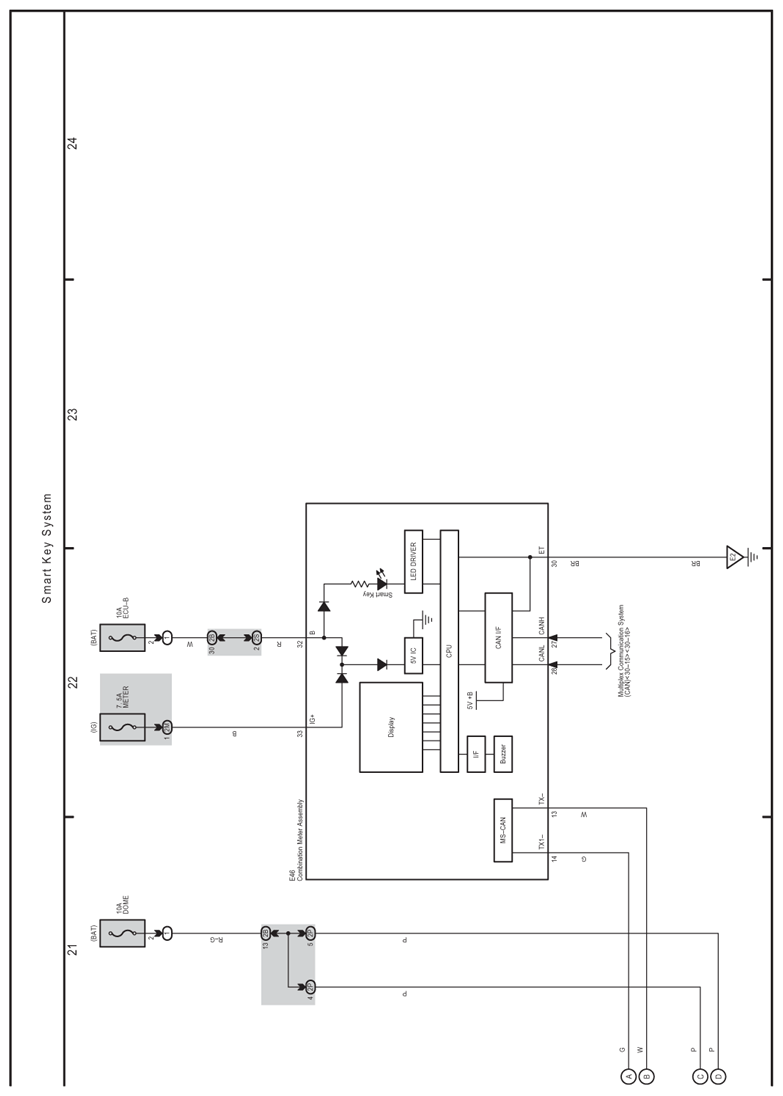

Fig 6: Smart Key System - Electrical Wiring Diagram - Except TMC Made (6 Of 6)
