SRS (TMC Made)

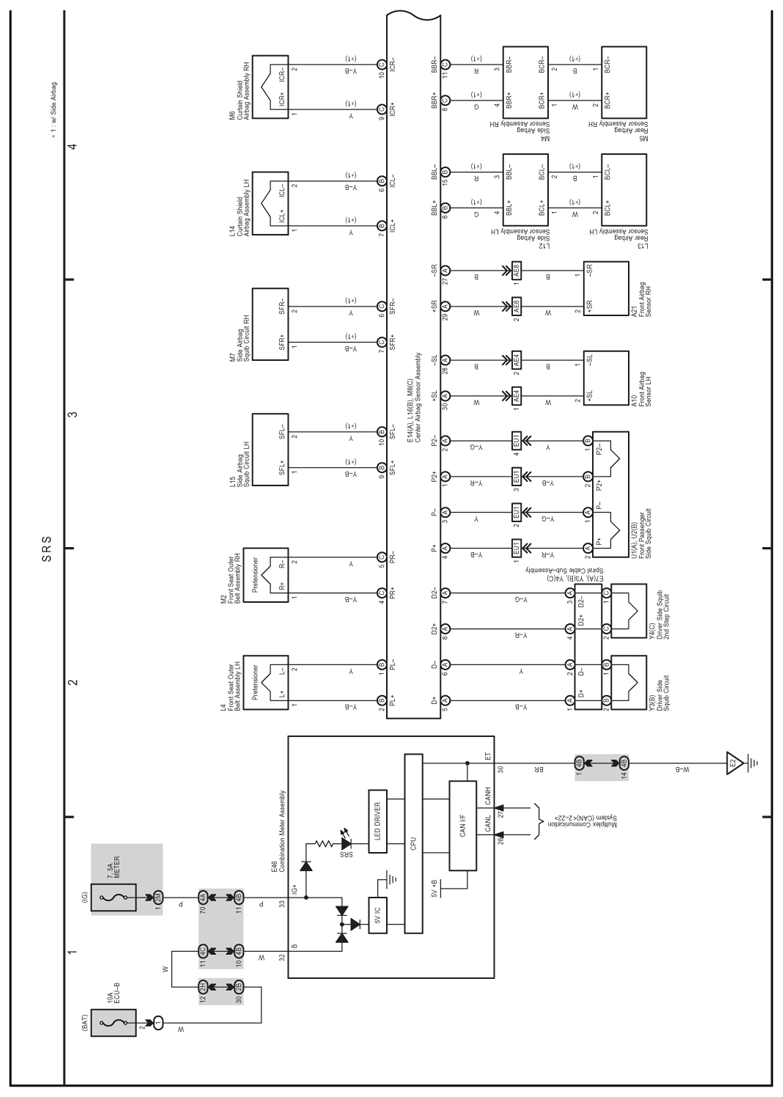

Fig 1: SRS - Electrical Wiring Diagram - TMC Made (1 Of 2)
G07618185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

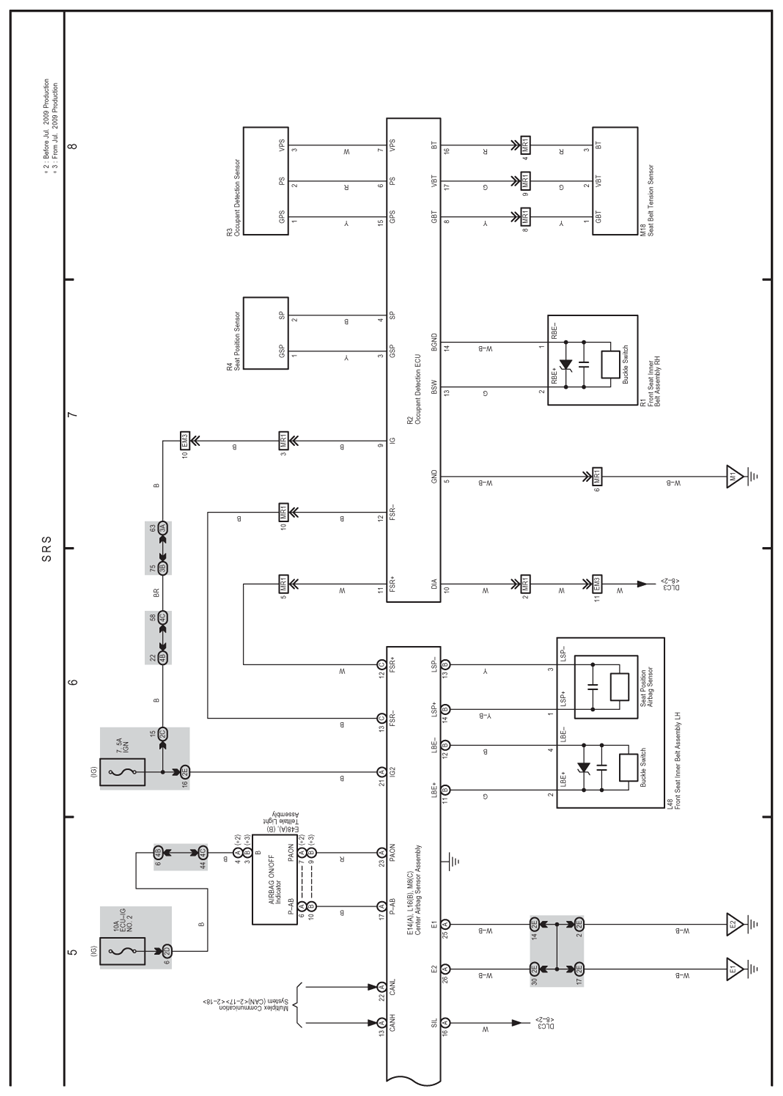

Fig 2: SRS - Electrical Wiring Diagram - TMC Made (2 Of 2)
G07618186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
