OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Window (Except TMC Made)
Power Window (Except TMC Made)

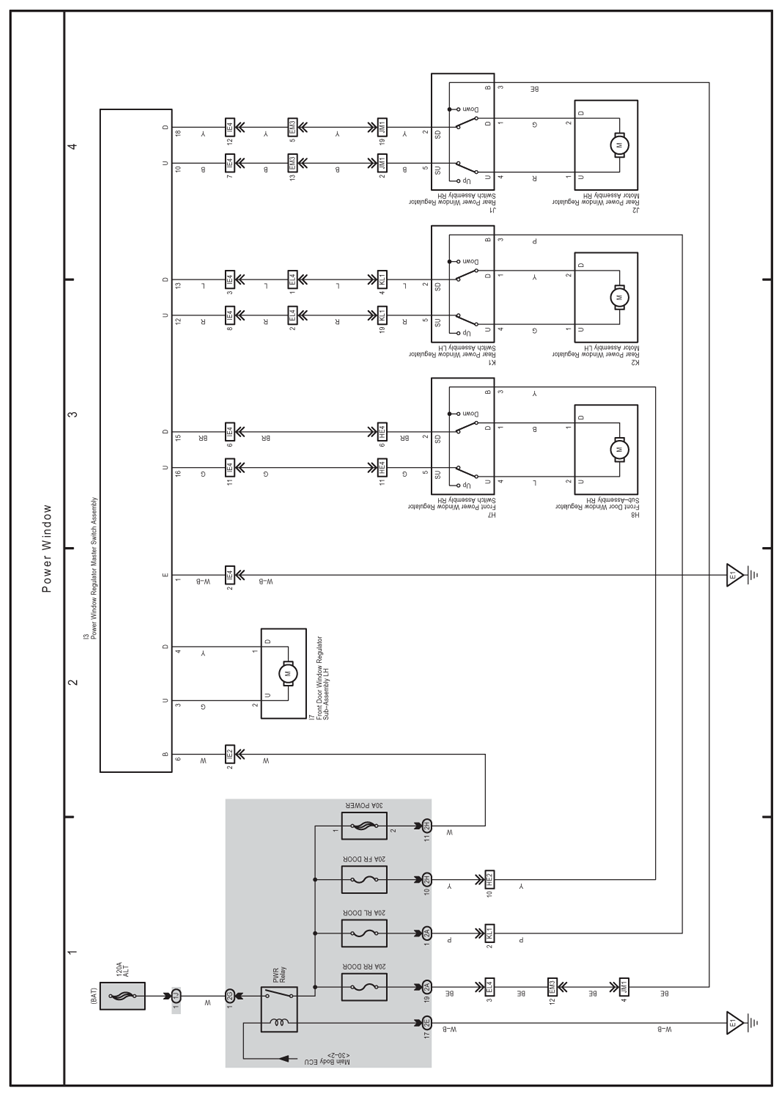

Fig 1: Power Window - Electrical Wiring Diagram - Except TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
