Power Source (TMC Made)

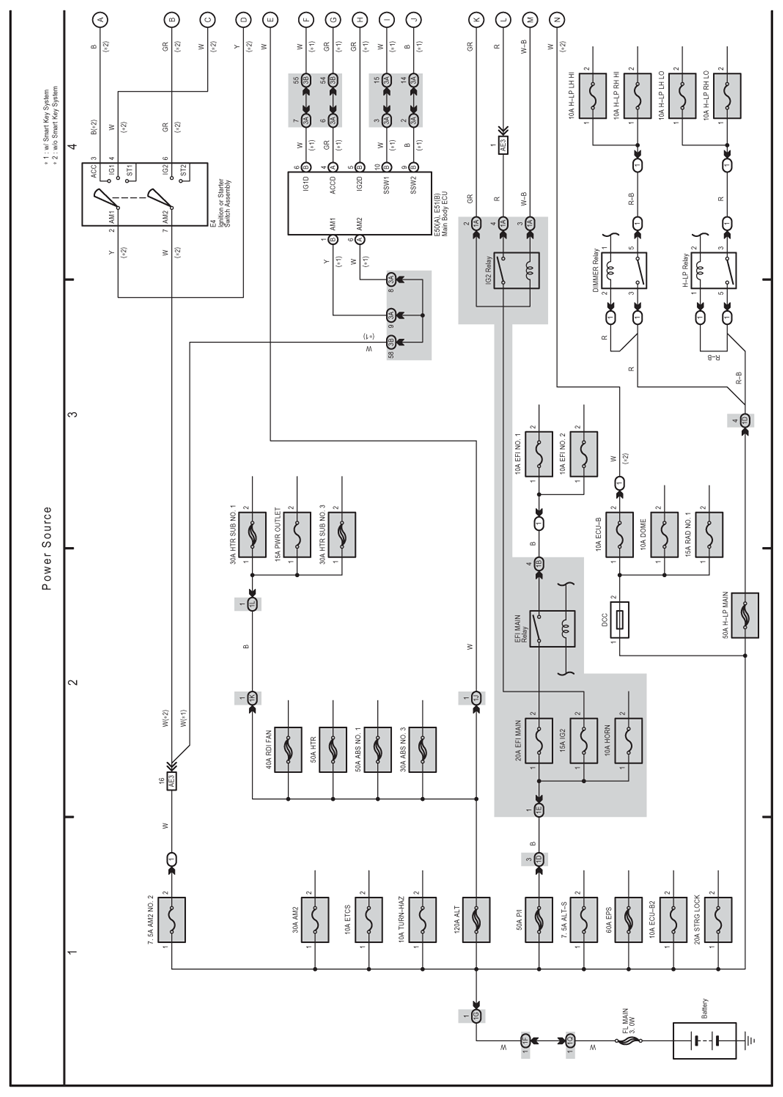

Fig 1: Power Source - Electrical Wiring Diagram - TMC Made (1 Of 2)
G07618153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

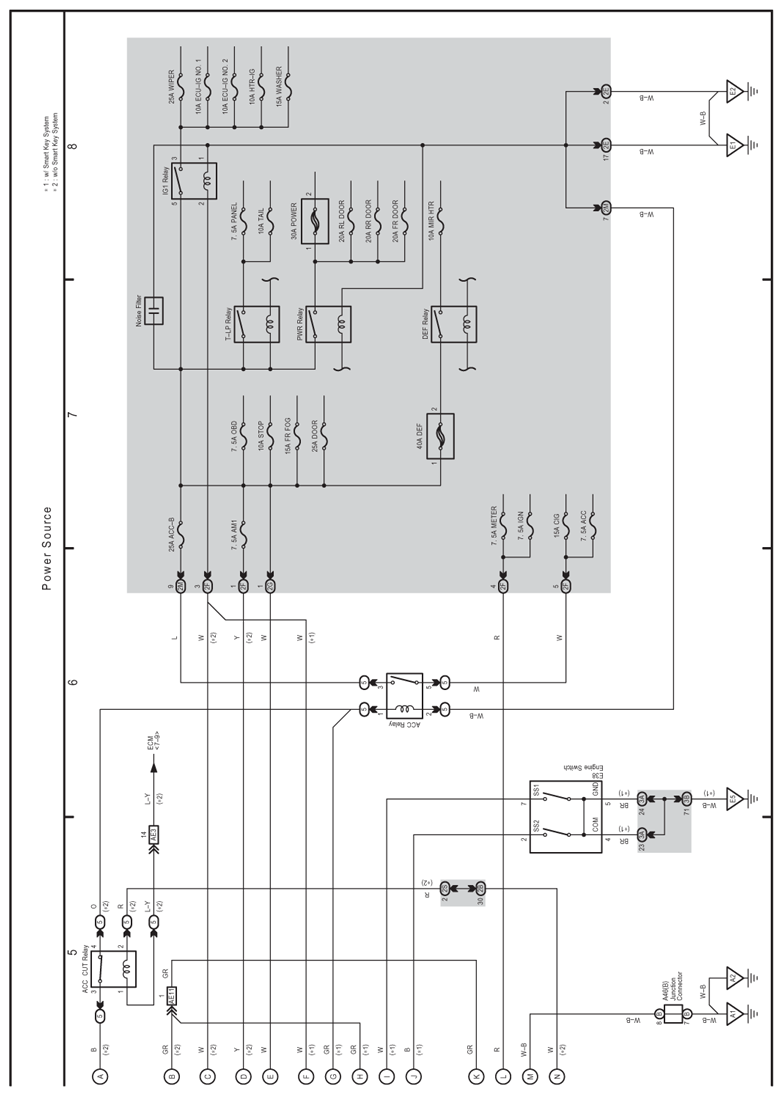

Fig 2: Power Source - Electrical Wiring Diagram - TMC Made (2 Of 2)
G07618154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
