Power Source (Except TMC Made)

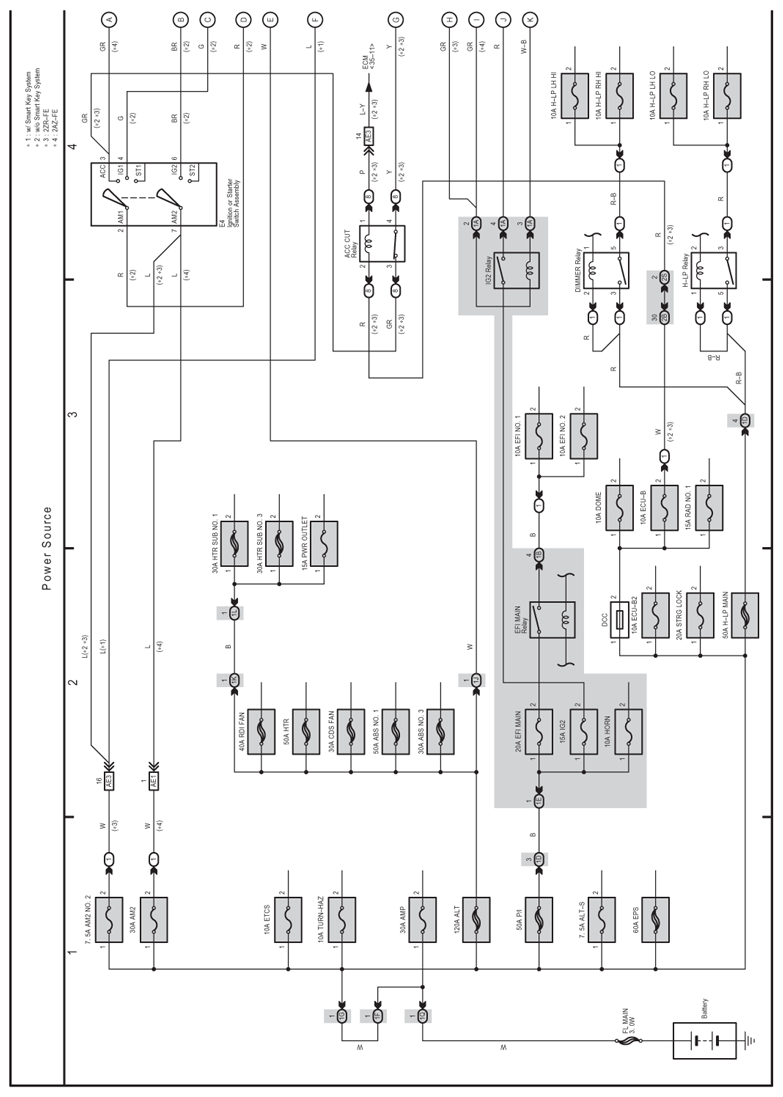

Fig 1: Power Source - Electrical Wiring Diagram - Except TMC Made (1 Of 2)
G07618203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

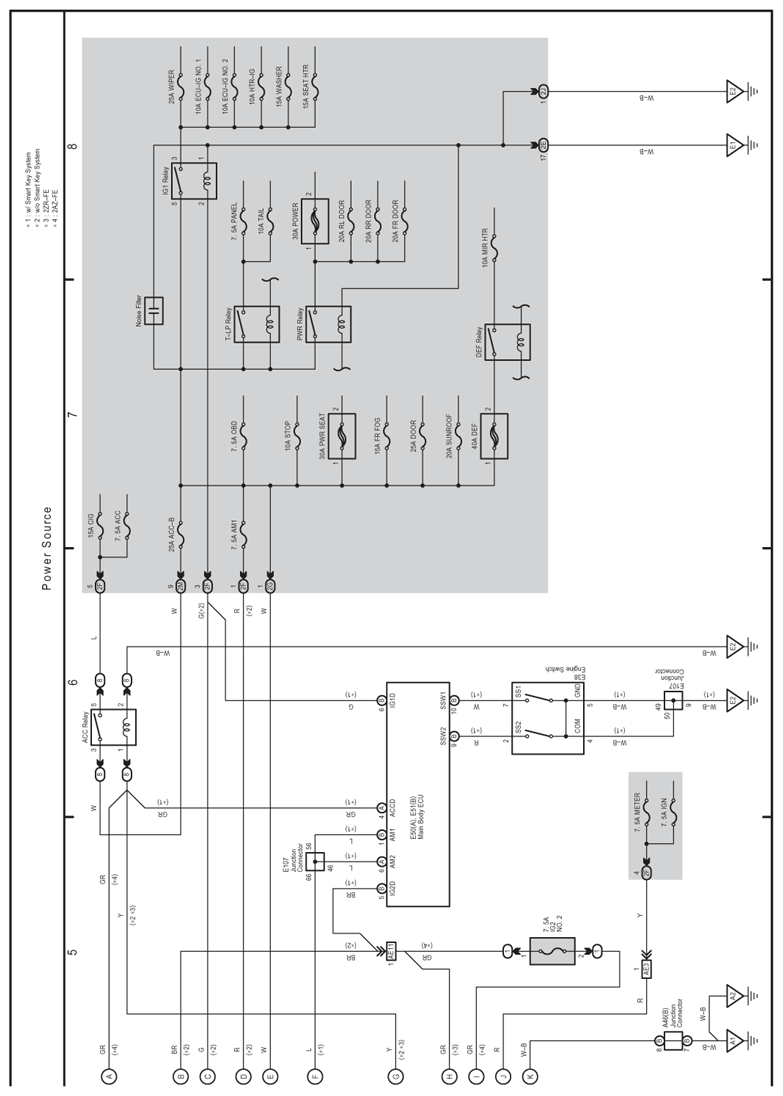

Fig 2: Power Source - Electrical Wiring Diagram - Except TMC Made (2 Of 2)
G07618204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
