Corolla XLE
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Outlet (Except TMC Made), Shift Lock (Except TMC Made)
Power Outlet (Except TMC Made), Shift Lock (Except TMC Made)

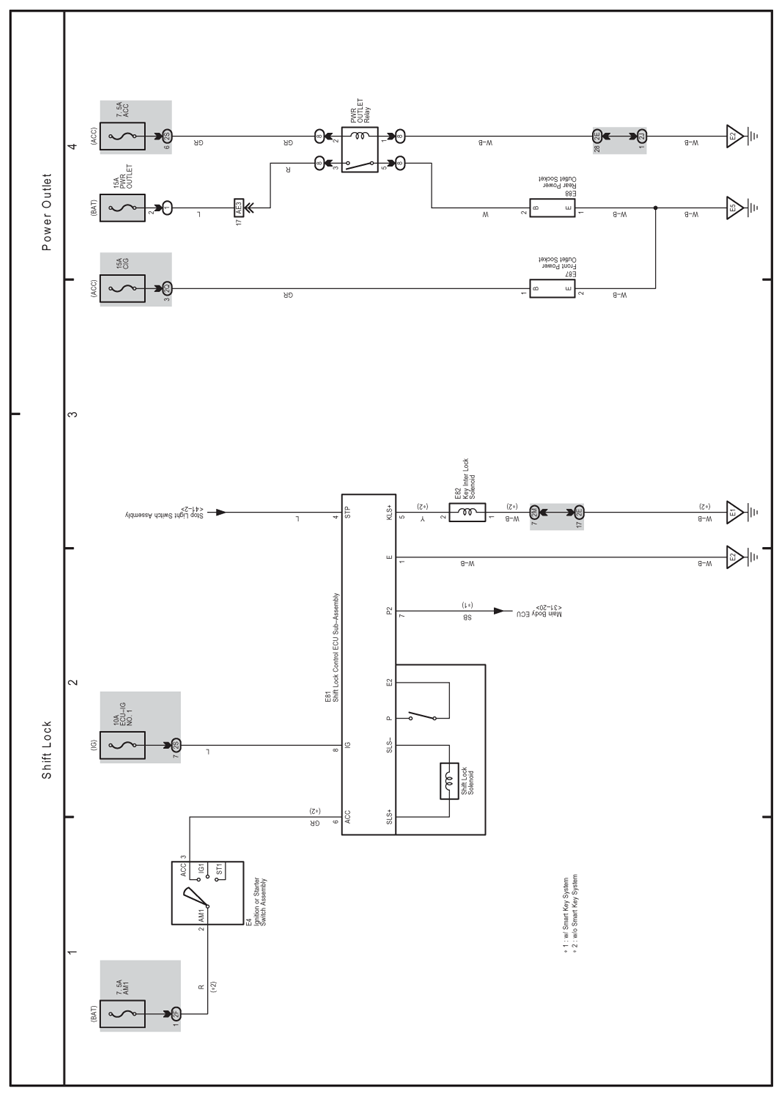

Fig 1: Power Outlet And Shift Lock - Electrical Wiring Diagram - Except TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
