Overall Electrical Wiring Diagram
>>
Mirror Heater (TMC Made), Rear Window Defogger (TMC Made)
Mirror Heater (TMC Made), Rear Window Defogger (TMC Made)

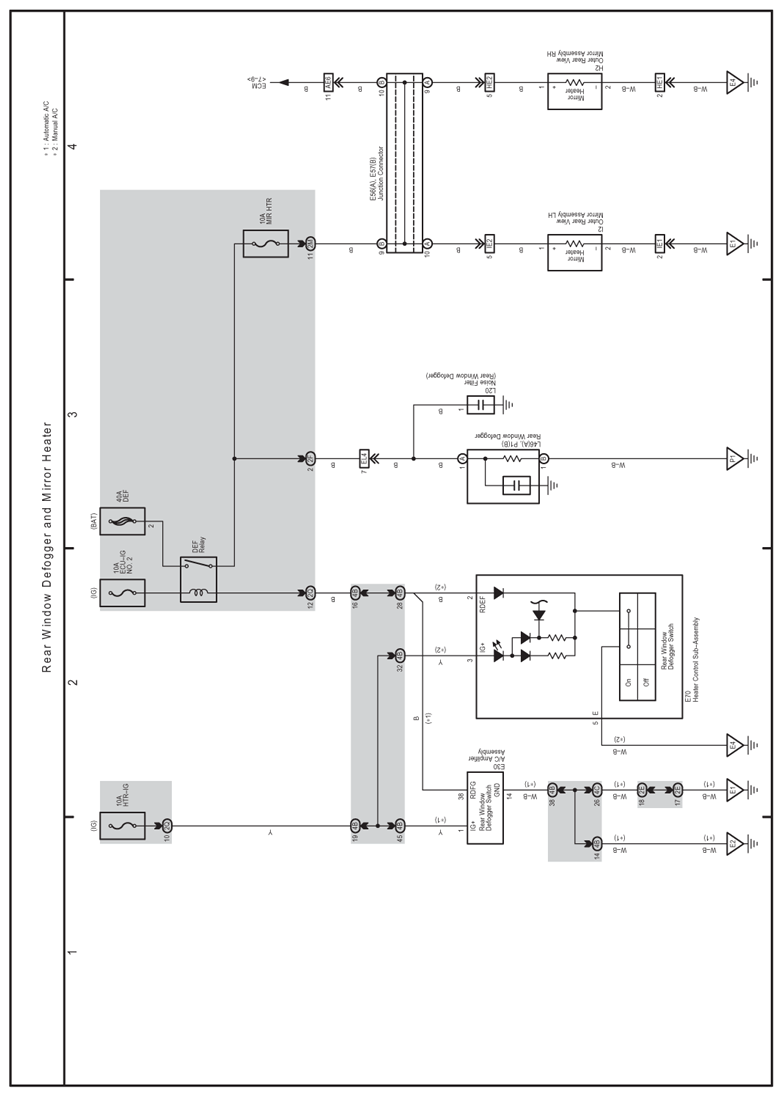

Fig 1: Rear Window Defogger And Mirror Heater - Electrical Wiring Diagram - TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
