Ignition (TMC Made)

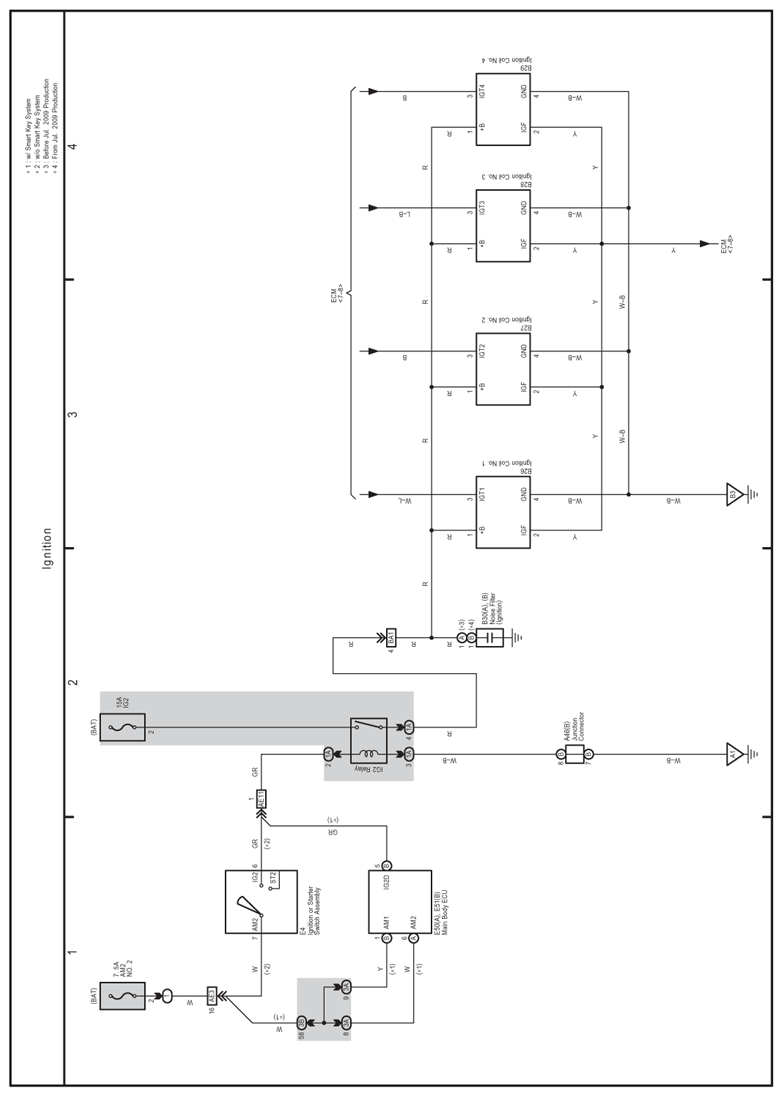

Fig 1: Ignition - Electrical Wiring Diagram - TMC Made

G07618169

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
