How To Read This Service Information

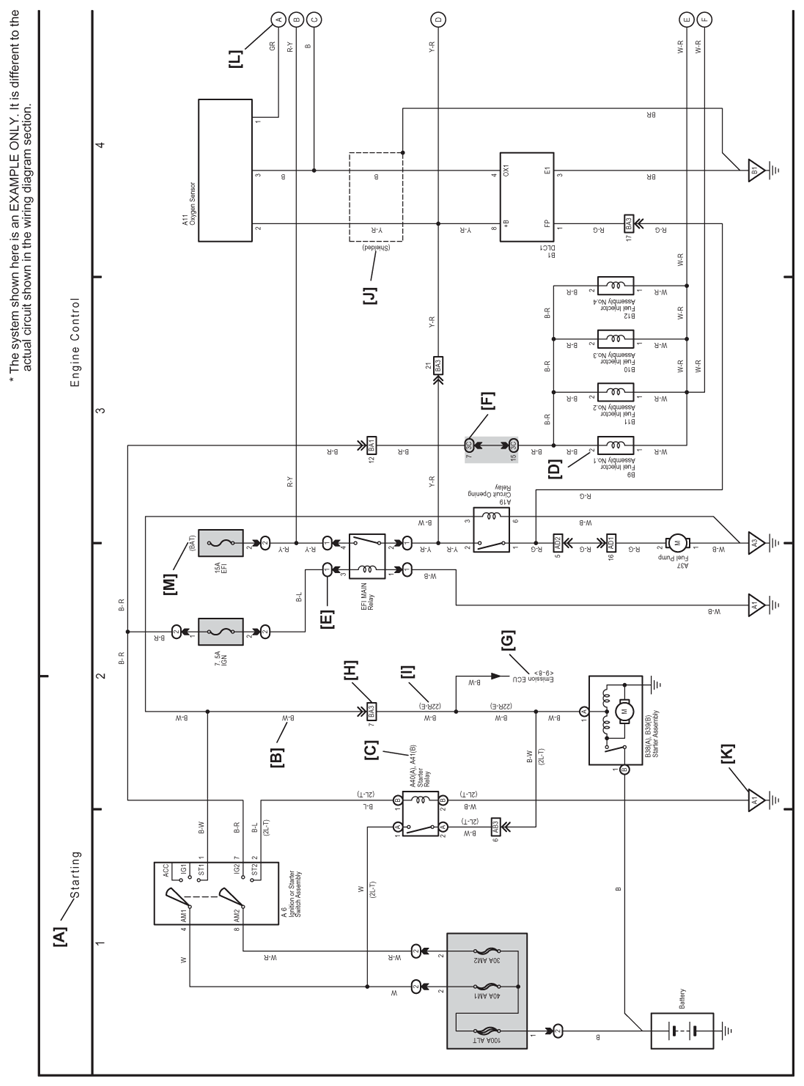

Fig 1: Engine Control - Electrical Wiring Diagram (Example)
G07618151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

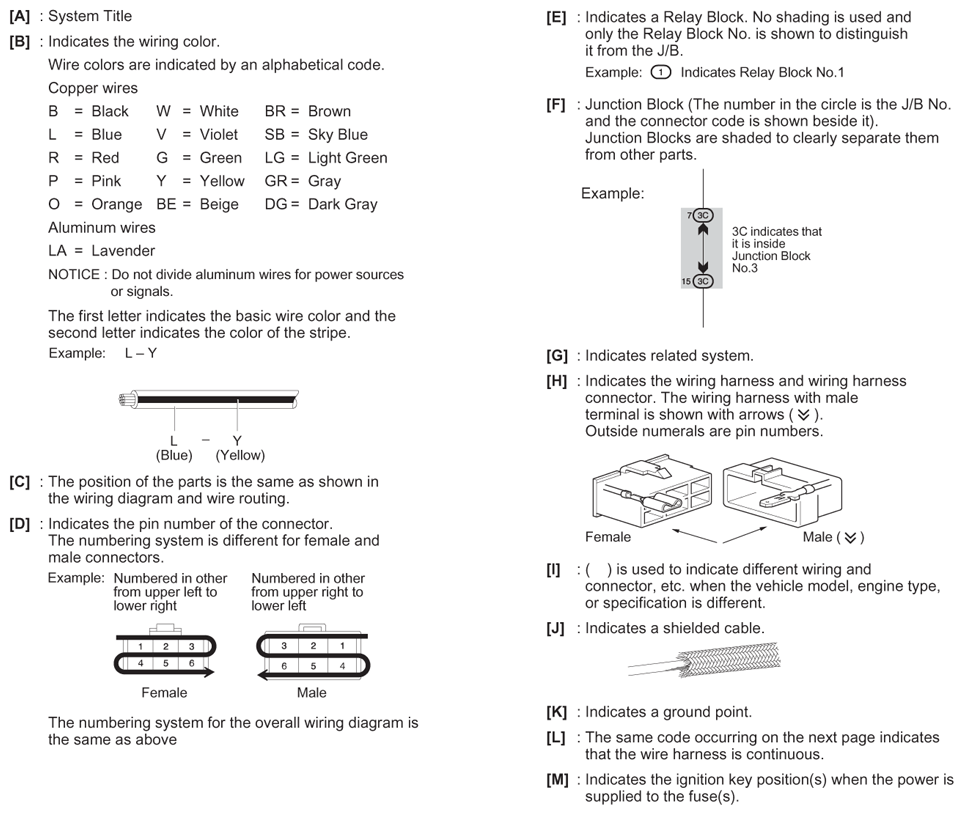

Fig 2: Engine Control - Electrical Wiring Legend
G07618152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
