Corolla XLE
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Front Wiper and Washer (TMC Made)
Front Wiper and Washer (TMC Made)

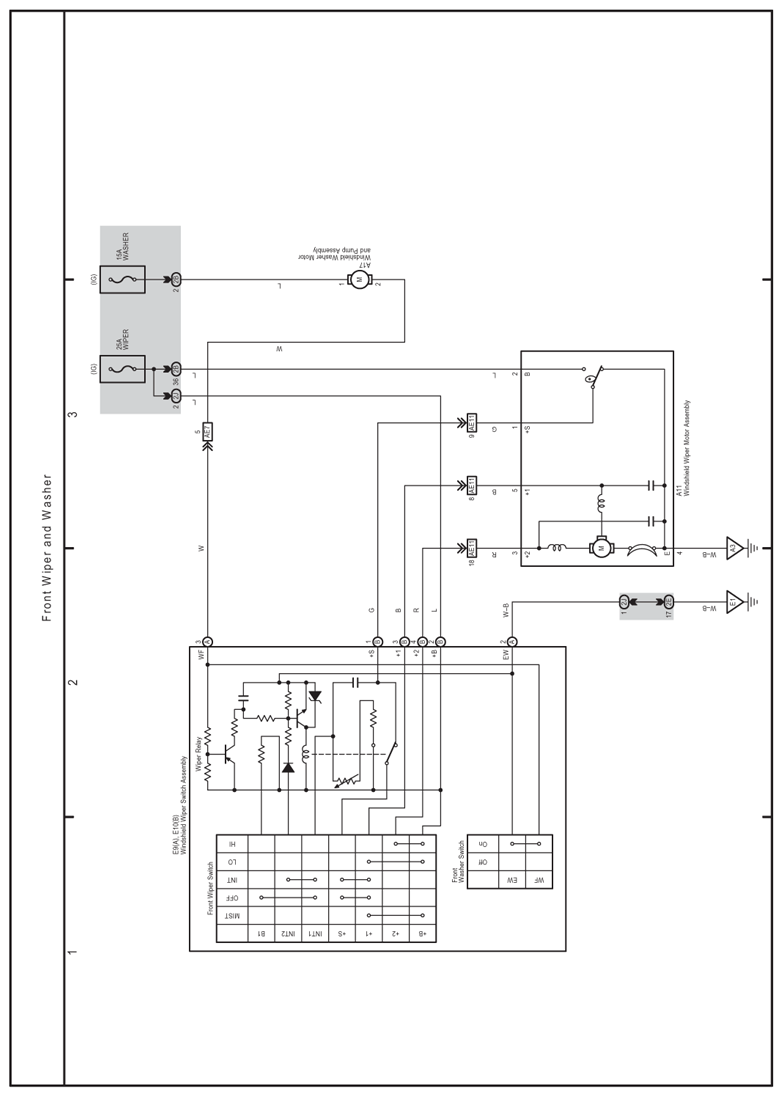

Fig 1: Front Wiper And Washer - Electrical Wiring Diagram - TMC Made
