EPS (Except TMC Made)

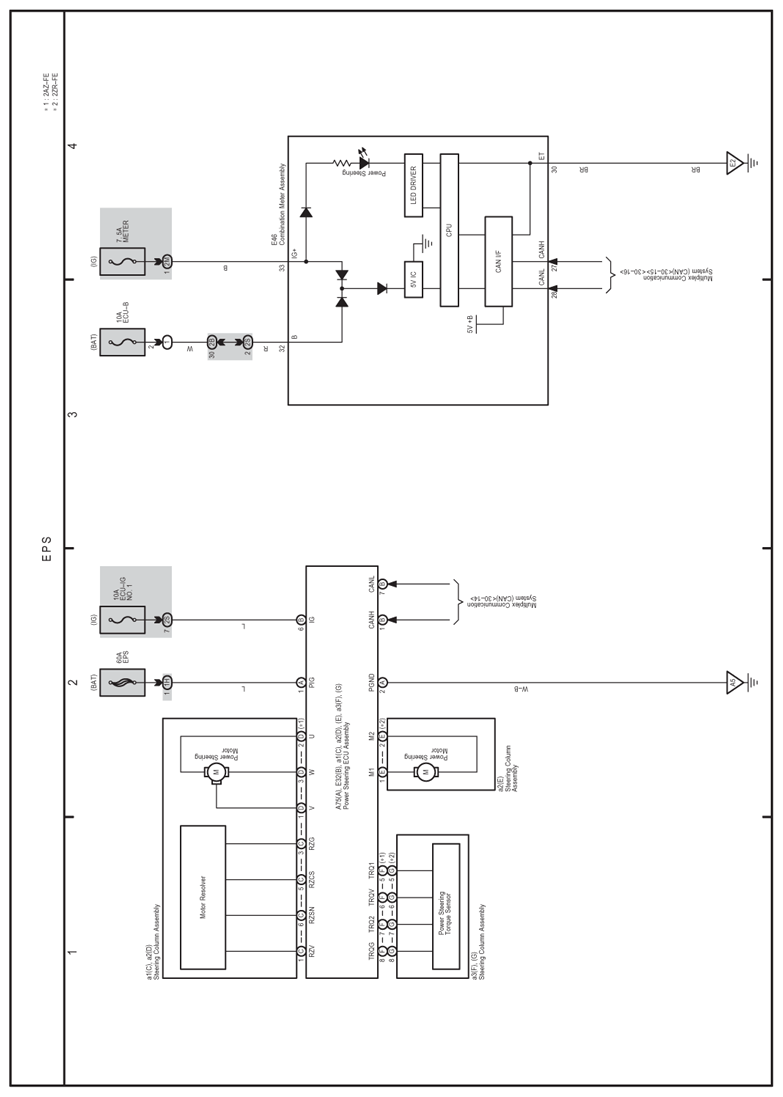

Fig 1: EPS - Electrical Wiring Diagram - Except TMC Made

G07618242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
