Data Link Connector 3 (Except TMC Made), Engine Immobiliser System (w/o Smart Key System) (Except TMC Made)

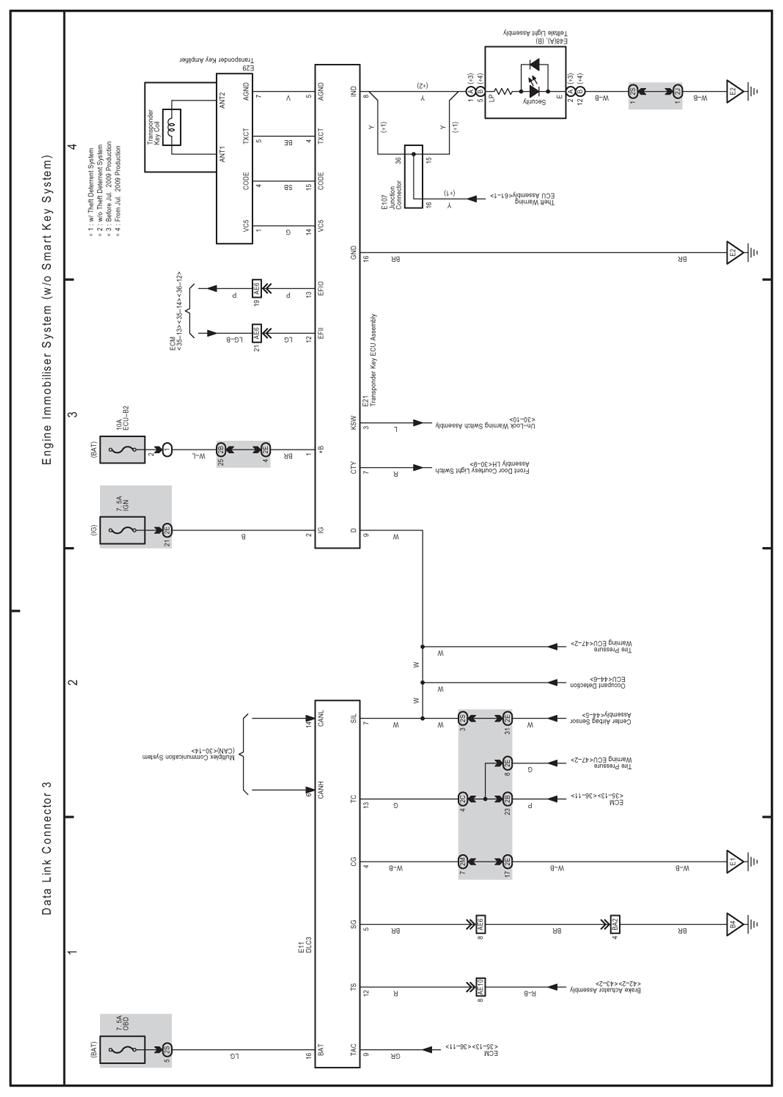

Fig 1: Data Link Connector 3 And Engine Immobiliser System (W/O Smart Key System) Electrical Wiring Diagram - Except TMC Made
G07618228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
